my Rupa 88 Pro 20, wifi/bt chip is cdtech 208821c (rtl8821cs), with real 4g32 had no bluetooth with mmie4jbcu's dtb or the included box-demo.dtb. with a lil help from claude.ai, i mix mmie4jbcu's dtb with x96x6.dtb from another thread here. et voilá bluetooth is working after apt install armbian-firmware-full rk3566-box-X88PRO20.dtb

So, here's what I had to do to successfully build the image. First, I corrected my board file in the config/board/orangepizero3.csc directory. The processor value was incorrect, it was 616, so I set it to 618. Menuconf suggested selecting a board with a 618 chip, but in the board file it was listed as family 616. Later, I copied my board file to the userpatches directory and added the value CONFIG_DRM_PANEL_MIPI_DBI=m. Then I ran the image build script with the menuconf viewer. I was surprised that the CONFIG_DRM_PANEL_MIPI_DBI parameter already had the value "m"; previously, it was empty. After all these manipulations, the build went smoothly. Thank you so much for your support.

People are already helping you. But, they're mostly helping you to help yourself. One thing you can do to make it easier for people to help you is to add the SHARE_LOG build switch to ./compile.sh. That way your build log will be uploaded and you can share the link here.

Hi I was able to build an image with the panel-mipi-dbi module enabled. My previous image had the module disabled, so it took me a couple of days to figure it out. As I found out, for my version of the board, which uses the 618 chip, I needed to adjust a line in the bootconfig to build my board. It specified the 616 chip. But that's probably not the reason for the success. After I built the image, applied the binary, and dts, the screen was still white after rebooting. user@orangepizero3:~/v0_ips_touch_display$ cd user@orangepizero3:~$ sudo modinfo panel-mipi-dbi filename: /lib/modules/6.16.8-edge-sunxi64/kernel/drivers/gpu/drm/tiny/panel-mipi-dbi.ko license: GPL author: Noralf Trønnes description: MIPI DBI compatible display panel driver alias: of:N*T*Cpanel-mipi-dbi-spiC* alias: of:N*T*Cpanel-mipi-dbi-spi alias: spi:panel-mipi-dbi-spi depends: drm_mipi_dbi,backlight intree: Y name: panel_mipi_dbi vermagic: 6.16.8-edge-sunxi64 SMP preempt mod_unload aarch64 user@orangepizero3:~$ dmesg | grep spi [ 2.466658] sun6i-spi 5010000.spi: Error applying setting, reverse things back [ 2.467167] sun6i-spi 5011000.spi: cannot register SPI host [ 2.474140] sun6i-spi 5010000.spi: Error applying setting, reverse things back [ 2.474558] sun6i-spi 5011000.spi: cannot register SPI host [ 3.584770] panel-mipi-dbi-spi spi1.0: supply power not found, using dummy regulator [ 3.603713] panel-mipi-dbi-spi spi1.0: supply io not found, using dummy regulator [ 3.603960] panel-mipi-dbi-spi spi1.0: Direct firmware load for panel-mipi-dbi-spi.bin failed with error -2 [ 3.603975] panel-mipi-dbi-spi spi1.0: No config file found for compatible 'panel-mipi-dbi-spi' (error=-2) [ 3.603983] panel-mipi-dbi-spi spi1.0: probe with driver panel-mipi-dbi-spi failed with error -2 [ 12.001666] OF: /soc/spi@5011000/ads7846@1: Read of boolean property 'ti,swap-xy' with a value. [ 12.001860] ads7846 spi1.1: supply vcc not found, using dummy regulator [ 12.004761] ads7846 spi1.1: touchscreen, irq 77 [ 12.007680] input: ADS7846 Touchscreen as /devices/platform/soc/5011000.spi/spi_master/spi1/spi1.1/input/input10 [ 12.018707] spi-nor spi0.0: supply vcc not found, using dummy regulator [ 12.018953] spi-nor spi0.0: supply vdd not found, using dummy regulator

FWIW, the file in question is available from the mirror. Are you sure you do not have network issues?

FYI, Device is Odroid N2+ 4 GB. Some months ago I installed/ran: Armbian_25.2.1_Odroidn2_bookworm_current_6.12.13_xfce_desktop.img with no issues that I could not overcome. I re-downloaded it yesterday and re-installed/ran it on another Odroid N2+ 4GB with no issues. However when I try to install/run: Armbian_25.11.1_Odroidn2_noble_current_6.12.58_xfce_desktop.img "* Desktops are very simple and minimal but containing standard features such as Chromium, Firefox browser, Office tools etc." It leads to a number of issues, but the most important one is no internet browsers are installed that are either visible from the Applications Menu, or that can be fixed/updated through either "apt" or by using "synaptic". Trying to update Firefox through "synaptic" leads to this error: W: Failed to fetch http://mirror.vinehost.net/armbian/apt/pool/noble-desktop/f/firefox/firefox_133.0+build2-0ubuntu0.24.04.1~mt1armbian1_arm64.deb Could not open file /var/cache/apt/archives/partial/firefox_9%3a133.0+build2-0ubuntu0.24.04.1~mt1armbian1_arm64.deb - open (2: No such file or directory) [IP: 143.20.69.35 80] OR W: Failed to fetch http://armbian.lv.auroradev.org/apt/pool/noble-desktop/f/firefox/firefox_133.0+build2-0ubuntu0.24.04.1~mt1armbian1_arm64.deb Could not open file /var/cache/apt/archives/partial/firefox_9%3a133.0+build2-0ubuntu0.24.04.1~mt1armbian1_arm64.deb - open (2: No such file or directory) [IP: 23.186.113.5 80] etc I have installed and verified the sha256sum on at least 3 microsd cards with the same result for the Armbian_25.11.1_Odroidn2_noble_current_6.12.58_xfce_desktop.img. version. Again the "bookworm" has no issues but "noble" seems to be broken. I tried the Armbian_25.11.1_Odroidn2_noble_current_6.12.58_gnome_desktop.img as well. It has the same issues. I realize that at this time of the year our minds are on the holidays/festive season. I hope that some clarity can be had as I have never seen this type of problem with a linux distro before this. Thank you for your time, patience, and help!

Correct. But the old Marvell code needs different KConfig symbols.

Well said.. I noticed that if I use Armbian_community_24.5.0-trunk.93_Rockpi-4c_bookworm_current_6.6.18_minimal.img it boots. However, once I upgrade it's all over. linux-dtb-current-rockchip64/bookworm 26.2.0-trunk.70 arm64 [upgradable from: 24.5.0-trunk.93] linux-image-current-rockchip64/bookworm 26.2.0-trunk.70 arm64 [upgradable from: 24.5.0-trunk.93] linux-u-boot-rockpi-4c-current/bookworm 26.2.0-trunk.70 arm64 [upgradable from: 24.5.0-trunk.93]

But it is that extra money that is paying for the better support after the sale that you see in the RaspPi ecosystem. All the other SBC vendors compete on low price and can't afford to provide any support after the sale and rely on open source volunteers to provide their long term support.

Your serial console cable seems to drop several characters or so, but that should not matter for booting. What matters I think is that you have no partition and I see in boot.cmd test -n "${distro_bootpart}" || distro_bootpart=1 echo "Boot script loaded from ${devtype} ${devnum}:${distro_bootpart}" This 1 year old, yours might be different. So if your boot.scr is still compiled from such boot.cmd content (see end of file how), I think it won't work. I have used parttitionless Btrfs, but not for OS rootfs, I also think GRUB will need a hack then. So if possible make it with just as default as possible, a 1st partition btrfs formatted with rootfs and likely also the rootfs subvol set as default. Also that is a tricky thing with GRUB (Debian) I know. I wiped a bootFAT partition actually, so about 16M+256M space before rootfs partition and also sorted the GPT table to default, so 1st entry Btrfs rootfs. I find the boot cmd rather complex, I used a minimum direct one as well for tests. see My (ROCK3A 24/7 up now) has bootFAT again, I did wipe/hide boot.* and armbianEnv.txt and use extlinux, so I can select a specific kernel option via serial console. /extlinux/extlinux.conf menu title Select the kernel variant DEFAULT vendor TIMEOUT 80 LABEL vendor KERNEL 6.1.115-vendor-rk35xx/Image INITRD 6.1.115-vendor-rk35xx/uInitrd FDT 6.1.115-vendor-rk35xx/rk3568-rock-3a.dtb FDTOVERLAYS 6.1.115-vendor-rk35xx/rock-3a-sata.dtbo APPEND root=LABEL=armbidroot rootwait rw earlyprintk console=ttyS2,1500000 cma=256M LABEL edge KERNEL 6.17.0-edge-rockchip64/Image INITRD 6.17.0-edge-rockchip64/uInitrd FDT 6.17.0-edge-rockchip64/rk3568-rock-3a.dtb APPEND root=LABEL=armbidroot rootwait rw earlyprintk console=ttyS2,1500000 cma=256M As this is on extra FAT, I need extra copies for all the files referenced, but when only 1 Btrfs, it should be possible to refer to files in /boot and elsewhere.

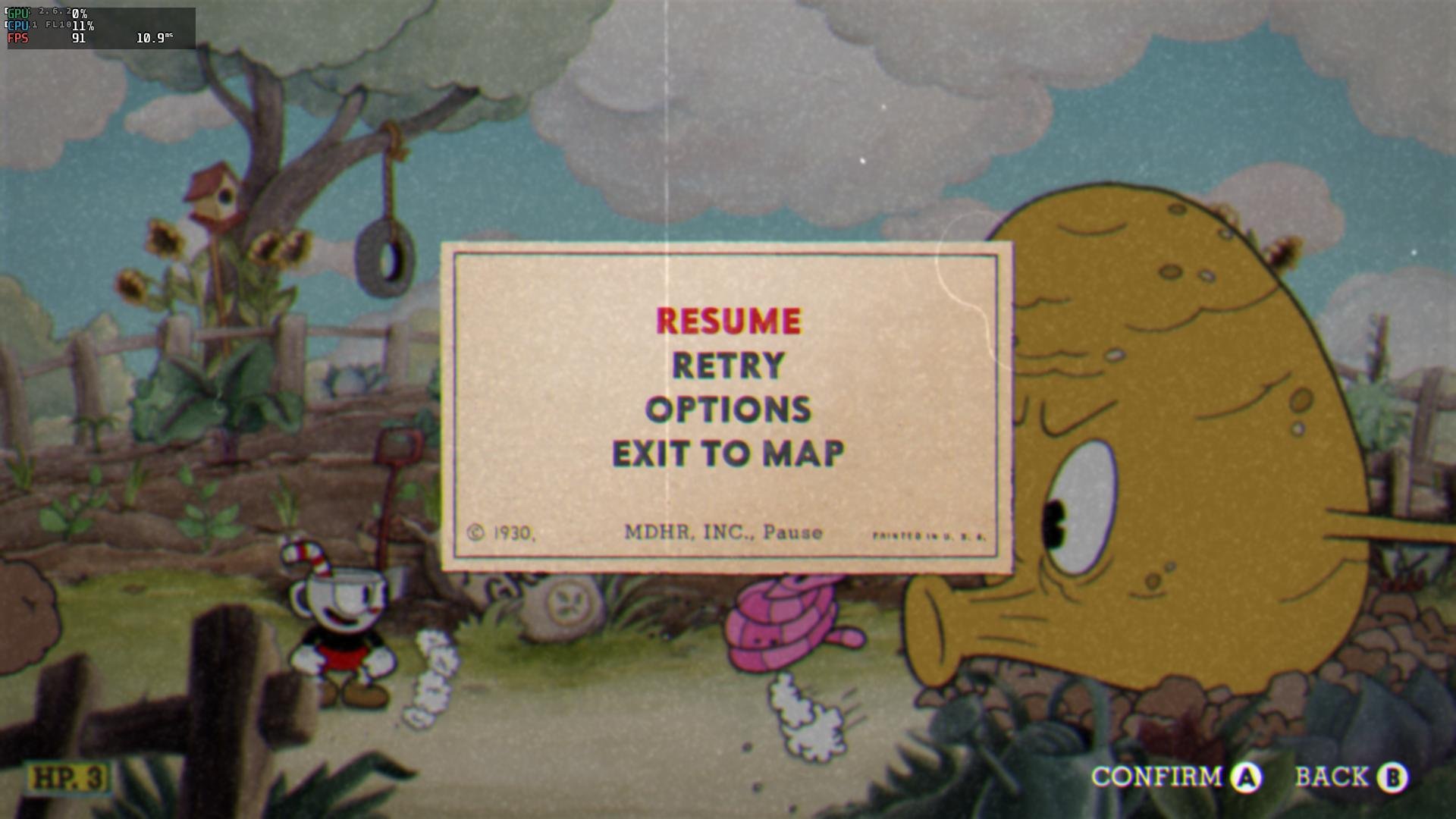

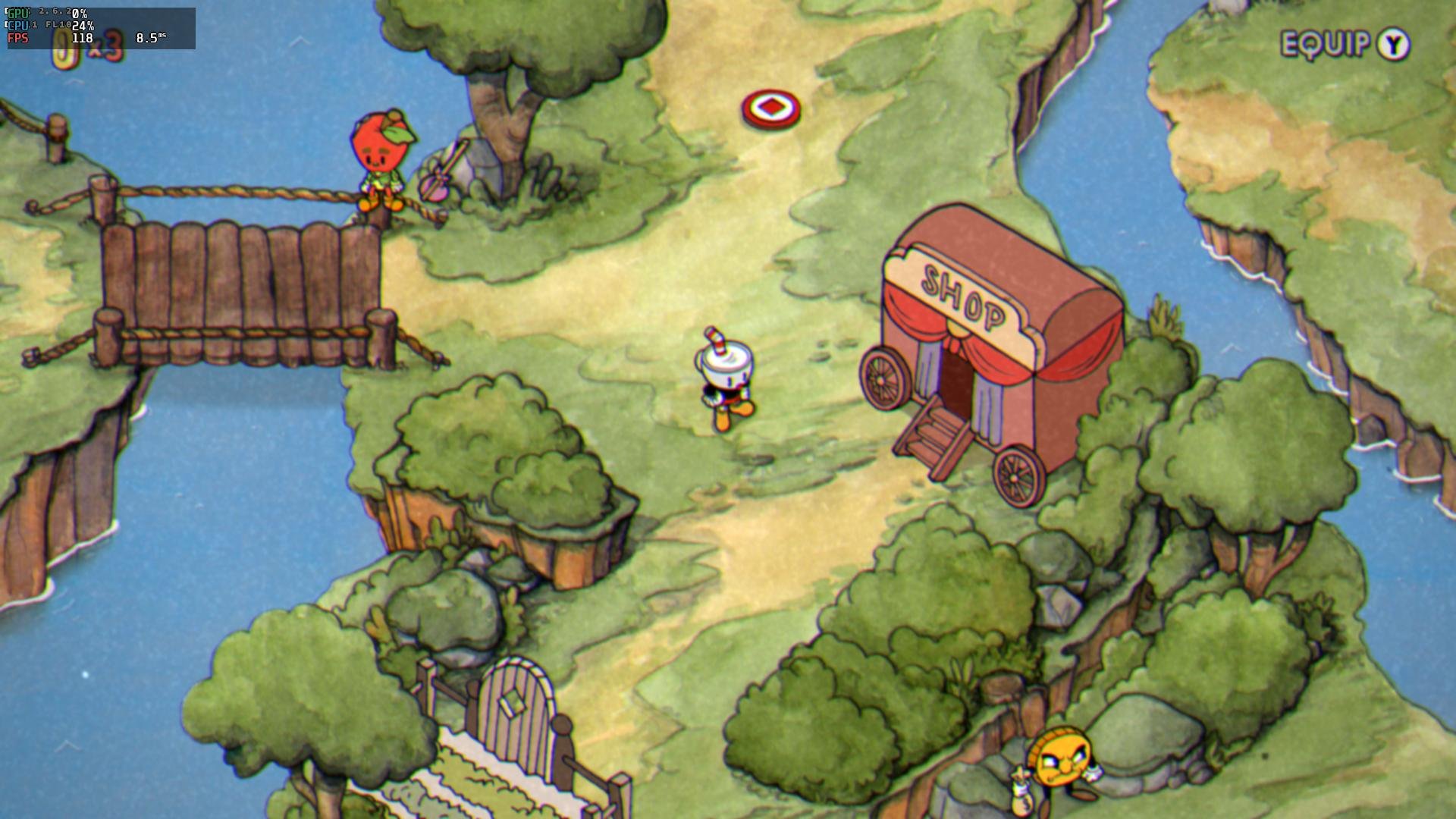

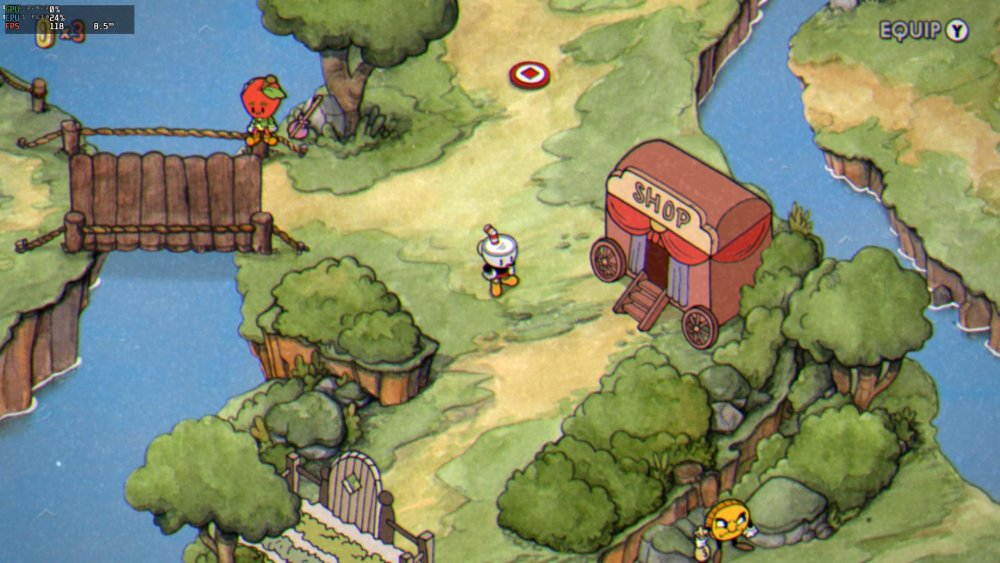

Armbian 25.8.2 Noble XFCE (BSD Kernel: 6.1.115) + PanVk - mesa 26.0 (https://launchpad.net/~ernstp/+archive/ubuntu/mesaaco) + box64 3.9 (https://ryanfortner.github.io/box64-debs/) + proton-10.0-3-amd64-wow64 (https://github.com/Kron4ek/Wine-Builds/releases/download/proton-10.0-3/wine-proton-10.0-3-amd64-wow64.tar.xz) + DXVK-stripped v2.6.2 >=60fps@1080p Cuphead

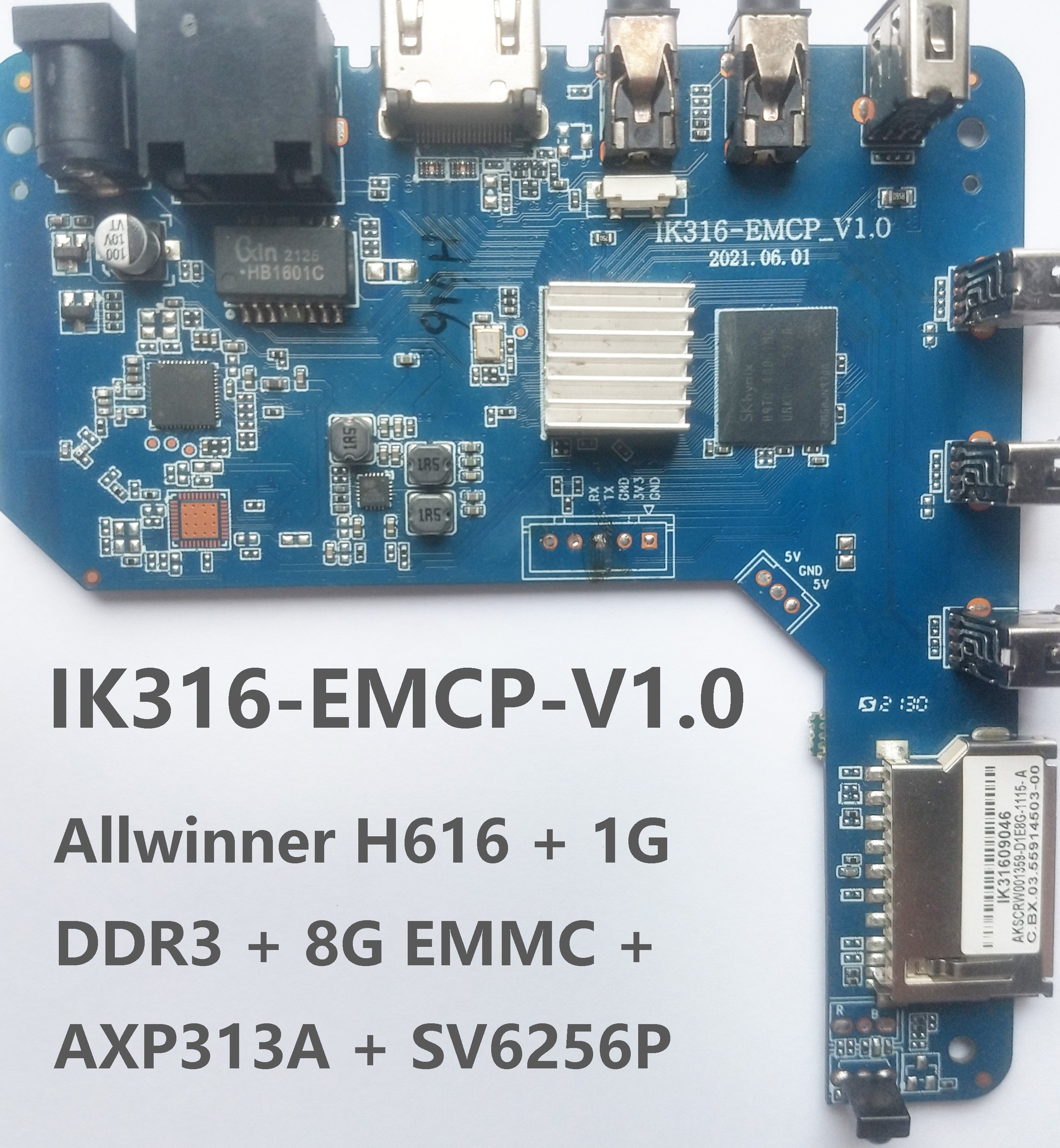

/dts-v1/; /memreserve/ 0x0000000048000000 0x0000000001000000; / { interrupt-parent = <0x1>; #address-cells = <0x2>; #size-cells = <0x2>; model = "sun50iw9"; compatible = "allwinner,h616", "arm,sun50iw9p1"; clocks { compatible = "allwinner,clk-init"; device_type = "clocks"; #address-cells = <0x2>; #size-cells = <0x2>; ranges; reg = <0x0 0x3001000 0x0 0x1000 0x0 0x7010000 0x0 0x400 0x0 0x7000000 0x0 0x4>; losc { #clock-cells = <0x0>; compatible = "allwinner,fixed-clock"; clock-frequency = <0x8000>; clock-output-names = "losc"; linux,phandle = <0x1e>; phandle = <0x1e>; }; iosc { #clock-cells = <0x0>; compatible = "allwinner,fixed-clock"; clock-frequency = <0xf42400>; clock-output-names = "iosc"; linux,phandle = <0x20>; phandle = <0x20>; }; hosc { #clock-cells = <0x0>; compatible = "allwinner,fixed-clock"; clock-frequency = <0x16e3600>; clock-output-names = "hosc"; linux,phandle = <0x9>; phandle = <0x9>; }; osc48m { #clock-cells = <0x0>; compatible = "allwinner,fixed-clock"; clock-frequency = <0x2dc6c00>; clock-output-names = "osc48m"; linux,phandle = <0xa>; phandle = <0xa>; }; hoscdiv32k { #clock-cells = <0x0>; compatible = "allwinner,fixed-clock"; clock-frequency = <0x8000>; clock-output-names = "hoscdiv32k"; linux,phandle = <0xe1>; phandle = <0xe1>; }; pll_periph0div25m { #clock-cells = <0x0>; compatible = "allwinner,fixed-clock"; clock-frequency = <0x17d7840>; clock-output-names = "pll_periph0div25m"; linux,phandle = <0xe2>; phandle = <0xe2>; }; pll_cpu { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; clock-output-names = "pll_cpu"; linux,phandle = <0xd5>; phandle = <0xd5>; }; pll_ddr0 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; clock-output-names = "pll_ddr0"; linux,phandle = <0xda>; phandle = <0xda>; }; pll_ddr1 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; clock-output-names = "pll_ddr1"; linux,phandle = <0xe3>; phandle = <0xe3>; }; pll_periph0 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; assigned-clocks = <0x2>; assigned-clock-rates = <0x23c34600>; lock-mode = "new"; clock-output-names = "pll_periph0"; linux,phandle = <0x2>; phandle = <0x2>; }; pll_periph1 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; assigned-clocks = <0x3>; assigned-clock-rates = <0x23c34600>; lock-mode = "new"; clock-output-names = "pll_periph1"; linux,phandle = <0x3>; phandle = <0x3>; }; pll_gpu { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; clock-output-names = "pll_gpu"; linux,phandle = <0xdc>; phandle = <0xdc>; }; pll_video0x4 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; clock-output-names = "pll_video0x4"; linux,phandle = <0x8>; phandle = <0x8>; }; pll_video1 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; assigned-clocks = <0x4>; assigned-clock-rates = <0x19bfcc00>; clock-output-names = "pll_video1"; linux,phandle = <0x4>; phandle = <0x4>; }; pll_video2 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; assigned-clocks = <0x5>; clock-output-names = "pll_video2"; linux,phandle = <0x5>; phandle = <0x5>; }; pll_ve { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; device_type = "clk_pll_ve"; lock-mode = "new"; clock-output-names = "pll_ve"; linux,phandle = <0x26>; phandle = <0x26>; }; pll_de { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; assigned-clocks = <0x6>; assigned-clock-rates = <0x297c1e00>; lock-mode = "new"; clock-output-names = "pll_de"; linux,phandle = <0x6>; phandle = <0x6>; }; pll_csi { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; lock-mode = "new"; clock-output-names = "pll_csi"; linux,phandle = <0xa5>; phandle = <0xa5>; }; pll_audiox4 { #clock-cells = <0x0>; compatible = "allwinner,pll-clock"; assigned-clocks = <0x7>; assigned-clock-rates = <0x5dc0000>; lock-mode = "new"; clock-output-names = "pll_audiox4"; linux,phandle = <0x7>; phandle = <0x7>; }; pll_periph0x2 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x2>; clock-mult = <0x2>; clock-div = <0x1>; clock-output-names = "pll_periph0x2"; linux,phandle = <0xc>; phandle = <0xc>; }; pll_periph0x4 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x2>; clock-mult = <0x4>; clock-div = <0x1>; clock-output-names = "pll_periph0x4"; linux,phandle = <0xe4>; phandle = <0xe4>; }; periph32k { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x2>; clock-mult = <0x2>; clock-div = <0x8f0d>; clock-output-names = "periph32k"; linux,phandle = <0xe5>; phandle = <0xe5>; }; pll_periph1x2 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x3>; clock-mult = <0x2>; clock-div = <0x1>; clock-output-names = "pll_periph1x2"; linux,phandle = <0x86>; phandle = <0x86>; }; pll_audio { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x7>; clock-mult = <0x1>; clock-div = <0x4>; clock-output-names = "pll_audio"; linux,phandle = <0x60>; phandle = <0x60>; }; pll_audiox2 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x7>; clock-mult = <0x1>; clock-div = <0x2>; clock-output-names = "pll_audiox2"; linux,phandle = <0xe6>; phandle = <0xe6>; }; pll_video0 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x8>; clock-mult = <0x1>; clock-div = <0x4>; clock-output-names = "pll_video0"; linux,phandle = <0xe7>; phandle = <0xe7>; }; pll_video1x4 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x4>; clock-mult = <0x4>; clock-div = <0x1>; clock-output-names = "pll_video1x4"; linux,phandle = <0xe8>; phandle = <0xe8>; }; pll_video2x4 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x5>; clock-mult = <0x4>; clock-div = <0x1>; clock-output-names = "pll_video2x4"; linux,phandle = <0xe9>; phandle = <0xe9>; }; hoscd2 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x9>; clock-mult = <0x1>; clock-div = <0x2>; clock-output-names = "hoscd2"; linux,phandle = <0xea>; phandle = <0xea>; }; osc48md4 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0xa>; clock-mult = <0x1>; clock-div = <0x4>; clock-output-names = "osc48md4"; linux,phandle = <0x52>; phandle = <0x52>; }; pll_periph0d6 { #clock-cells = <0x0>; compatible = "allwinner,fixed-factor-clock"; clocks = <0x2>; clock-mult = <0x1>; clock-div = <0x6>; clock-output-names = "pll_periph0d6"; linux,phandle = <0xeb>; phandle = <0xeb>; }; cpu { #clock-cells = <0x0>; compatible = "allwinner,cpu-clock"; clock-output-names = "cpu"; linux,phandle = <0xec>; phandle = <0xec>; }; axi { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "axi"; linux,phandle = <0xed>; phandle = <0xed>; }; cpuapb { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "cpuapb"; linux,phandle = <0xee>; phandle = <0xee>; }; psi { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "psi"; linux,phandle = <0xef>; phandle = <0xef>; }; ahb1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ahb1"; linux,phandle = <0xf0>; phandle = <0xf0>; }; ahb2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ahb2"; linux,phandle = <0xf1>; phandle = <0xf1>; }; ahb3 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ahb3"; linux,phandle = <0xf2>; phandle = <0xf2>; }; apb1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "apb1"; linux,phandle = <0xf3>; phandle = <0xf3>; }; apb2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "apb2"; linux,phandle = <0xb7>; phandle = <0xb7>; }; mbus { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "mbus"; linux,phandle = <0xf4>; phandle = <0xf4>; }; de { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0x6>; assigned-clock-rates = <0x297c1e00>; assigned-clocks = <0xb>; clock-output-names = "de"; linux,phandle = <0xb>; phandle = <0xb>; }; g2d { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0xc>; assigned-clock-rates = <0x11e1a300>; assigned-clocks = <0xd>; clock-output-names = "g2d"; linux,phandle = <0xd>; phandle = <0xd>; }; di { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0xc>; assigned-clock-rates = <0x11e1a300>; assigned-clocks = <0xe>; clock-output-names = "di"; linux,phandle = <0xe>; phandle = <0xe>; }; gpu0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "gpu0"; linux,phandle = <0xdd>; phandle = <0xdd>; }; gpu1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "gpu1"; linux,phandle = <0xde>; phandle = <0xde>; }; ce { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ce"; linux,phandle = <0xb5>; phandle = <0xb5>; }; ve { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ve"; linux,phandle = <0x27>; phandle = <0x27>; }; dma { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "dma"; linux,phandle = <0x1f>; phandle = <0x1f>; }; msgbox { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "msgbox"; linux,phandle = <0x21>; phandle = <0x21>; }; hwspinlock_rst { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "hwspinlock_rst"; linux,phandle = <0x22>; phandle = <0x22>; }; hwspinlock_bus { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "hwspinlock_bus"; linux,phandle = <0x23>; phandle = <0x23>; }; hstimer { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "hstimer"; linux,phandle = <0xf5>; phandle = <0xf5>; }; avs { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "avs"; linux,phandle = <0xf6>; phandle = <0xf6>; }; dbgsys { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "dbgsys"; linux,phandle = <0xf7>; phandle = <0xf7>; }; pwm { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "pwm"; linux,phandle = <0x9b>; phandle = <0x9b>; }; iommu { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "iommu"; linux,phandle = <0xdb>; phandle = <0xdb>; }; sdram { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdram"; linux,phandle = <0xf8>; phandle = <0xf8>; }; nand0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "nand0"; linux,phandle = <0xbb>; phandle = <0xbb>; }; nand1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "nand1"; linux,phandle = <0xbc>; phandle = <0xbc>; }; sdmmc0_mod { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc0_mod"; linux,phandle = <0x8d>; phandle = <0x8d>; }; sdmmc0_bus { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc0_bus"; linux,phandle = <0x8e>; phandle = <0x8e>; }; sdmmc0_rst { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc0_rst"; linux,phandle = <0x8f>; phandle = <0x8f>; }; sdmmc1_mod { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc1_mod"; linux,phandle = <0x93>; phandle = <0x93>; }; sdmmc1_bus { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc1_bus"; linux,phandle = <0x94>; phandle = <0x94>; }; sdmmc1_rst { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc1_rst"; linux,phandle = <0x95>; phandle = <0x95>; }; sdmmc2_mod { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc2_mod"; linux,phandle = <0x87>; phandle = <0x87>; }; sdmmc2_bus { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc2_bus"; linux,phandle = <0x88>; phandle = <0x88>; }; sdmmc2_rst { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "sdmmc2_rst"; linux,phandle = <0x89>; phandle = <0x89>; }; uart0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "uart0"; linux,phandle = <0x29>; phandle = <0x29>; }; uart1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "uart1"; linux,phandle = <0x2c>; phandle = <0x2c>; }; uart2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "uart2"; linux,phandle = <0x2f>; phandle = <0x2f>; }; uart3 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "uart3"; linux,phandle = <0x32>; phandle = <0x32>; }; uart4 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "uart4"; linux,phandle = <0x35>; phandle = <0x35>; }; uart5 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "uart5"; linux,phandle = <0x38>; phandle = <0x38>; }; twi0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "twi0"; linux,phandle = <0x3b>; phandle = <0x3b>; }; twi1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "twi1"; linux,phandle = <0x3e>; phandle = <0x3e>; }; twi2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "twi2"; linux,phandle = <0x41>; phandle = <0x41>; }; twi3 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "twi3"; linux,phandle = <0x44>; phandle = <0x44>; }; twi4 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "twi4"; linux,phandle = <0x47>; phandle = <0x47>; }; scr0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "scr0"; linux,phandle = <0xb6>; phandle = <0xb6>; }; spi0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "spi0"; linux,phandle = <0x7d>; phandle = <0x7d>; }; spi1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "spi1"; linux,phandle = <0x81>; phandle = <0x81>; }; ephy_25m { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ephy_25m"; linux,phandle = <0xcd>; phandle = <0xcd>; }; gmac0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "gmac0"; linux,phandle = <0xcc>; phandle = <0xcc>; }; gmac1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "gmac1"; linux,phandle = <0xd0>; phandle = <0xd0>; }; gpadc { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "gpadc"; linux,phandle = <0xca>; phandle = <0xca>; }; ts { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ts"; linux,phandle = <0xc0>; phandle = <0xc0>; }; ths { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ths"; linux,phandle = <0xc3>; phandle = <0xc3>; }; spdif { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "spdif"; linux,phandle = <0x61>; phandle = <0x61>; }; dmic { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "dmic"; linux,phandle = <0x64>; phandle = <0x64>; }; codec_1x { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "codec_1x"; linux,phandle = <0x67>; phandle = <0x67>; }; codec_4x { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "codec_4x"; linux,phandle = <0xf9>; phandle = <0xf9>; }; ahub { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "ahub"; linux,phandle = <0x6a>; phandle = <0x6a>; }; usbphy0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbphy0"; linux,phandle = <0x4d>; phandle = <0x4d>; }; usbphy1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbphy1"; linux,phandle = <0x54>; phandle = <0x54>; }; usbphy2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbphy2"; linux,phandle = <0x58>; phandle = <0x58>; }; usbphy3 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbphy3"; linux,phandle = <0x5c>; phandle = <0x5c>; }; usbohci0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci0"; linux,phandle = <0x50>; phandle = <0x50>; }; usbohci0_12m { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci0_12m"; linux,phandle = <0x51>; phandle = <0x51>; }; usbohci1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci1"; linux,phandle = <0x56>; phandle = <0x56>; }; usbohci1_12m { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci1_12m"; linux,phandle = <0x57>; phandle = <0x57>; }; usbohci2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci2"; linux,phandle = <0x5a>; phandle = <0x5a>; }; usbohci2_12m { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci2_12m"; linux,phandle = <0x5b>; phandle = <0x5b>; }; usbohci3 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci3"; linux,phandle = <0x5e>; phandle = <0x5e>; }; usbohci3_12m { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbohci3_12m"; linux,phandle = <0x5f>; phandle = <0x5f>; }; usbehci0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbehci0"; linux,phandle = <0x4f>; phandle = <0x4f>; }; usbehci1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbehci1"; linux,phandle = <0x55>; phandle = <0x55>; }; usbehci2 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbehci2"; linux,phandle = <0x59>; phandle = <0x59>; }; usbehci3 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbehci3"; linux,phandle = <0x5d>; phandle = <0x5d>; }; usb3_0_host { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usb3_0_host"; linux,phandle = <0xfa>; phandle = <0xfa>; }; usbotg { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "usbotg"; linux,phandle = <0x4e>; phandle = <0x4e>; }; lradc { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "lradc"; linux,phandle = <0xcb>; phandle = <0xcb>; }; hdmi { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0x5>; assigned-clocks = <0xf>; clock-output-names = "hdmi"; linux,phandle = <0xf>; phandle = <0xf>; }; hdmi_slow { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clocks = <0x10>; clock-output-names = "hdmi_slow"; linux,phandle = <0x10>; phandle = <0x10>; }; hdmi_cec { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clocks = <0x11>; clock-output-names = "hdmi_cec"; linux,phandle = <0x11>; phandle = <0x11>; }; display_top { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "display_top"; linux,phandle = <0x98>; phandle = <0x98>; }; tcon_lcd { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "tcon_lcd"; assigned-clock-parents = <0x8>; assigned-clocks = <0x12>; linux,phandle = <0x12>; phandle = <0x12>; }; tcon_lcd1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "tcon_lcd1"; assigned-clock-parents = <0x4>; assigned-clocks = <0x13>; linux,phandle = <0x13>; phandle = <0x13>; }; tcon_tv { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0x5>; assigned-clocks = <0x14>; clock-output-names = "tcon_tv"; linux,phandle = <0x14>; phandle = <0x14>; }; tcon_tv1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0x4>; assigned-clocks = <0x15>; clock-output-names = "tcon_tv1"; linux,phandle = <0x15>; phandle = <0x15>; }; lvds { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "lvds"; assigned-clocks = <0x16>; linux,phandle = <0x16>; phandle = <0x16>; }; tve { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "tve"; assigned-clock-parents = <0x4>; assigned-clocks = <0x17>; linux,phandle = <0x17>; phandle = <0x17>; }; tve_top { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "tve_top"; assigned-clock-parents = <0x4>; assigned-clocks = <0x18>; linux,phandle = <0x18>; phandle = <0x18>; }; csi_top { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "csi_top"; linux,phandle = <0xa4>; phandle = <0xa4>; }; csi_master0 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "csi_master0"; linux,phandle = <0xa6>; phandle = <0xa6>; }; csi_master1 { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "csi_master1"; linux,phandle = <0xa7>; phandle = <0xa7>; }; hdmi_hdcp { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; assigned-clock-parents = <0x3>; assigned-clocks = <0x19>; clock-output-names = "hdmi_hdcp"; linux,phandle = <0x19>; phandle = <0x19>; }; pio { #clock-cells = <0x0>; compatible = "allwinner,periph-clock"; clock-output-names = "pio"; linux,phandle = <0x1d>; phandle = <0x1d>; }; cpurcir { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurcir"; linux,phandle = <0x25>; phandle = <0x25>; }; hosc32k { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "hosc32k"; linux,phandle = <0x1a>; phandle = <0x1a>; }; losc_out { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; assigned-clock-parents = <0x1a>; assigned-clocks = <0x1b>; clock-output-names = "losc_out"; linux,phandle = <0x1b>; phandle = <0x1b>; }; cpurcpus_pll { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurcpus_pll"; linux,phandle = <0xfb>; phandle = <0xfb>; }; cpurcpus { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurcpus"; linux,phandle = <0xfc>; phandle = <0xfc>; }; cpurahbs { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurahbs"; linux,phandle = <0xfd>; phandle = <0xfd>; }; cpurapbs1 { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurapbs1"; linux,phandle = <0xfe>; phandle = <0xfe>; }; cpurapbs2_pll { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurapbs2_pll"; linux,phandle = <0xff>; phandle = <0xff>; }; cpurapbs2 { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurapbs2"; linux,phandle = <0x100>; phandle = <0x100>; }; cpurpio { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "cpurpio"; linux,phandle = <0x1c>; phandle = <0x1c>; }; dcxo_out { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "dcxo_out"; linux,phandle = <0x101>; phandle = <0x101>; }; stwi { #clock-cells = <0x0>; compatible = "allwinner,periph-cpus-clock"; clock-output-names = "stwi"; linux,phandle = <0x4a>; phandle = <0x4a>; }; }; soc@03000000 { compatible = "simple-bus"; #address-cells = <0x2>; #size-cells = <0x2>; ranges; device_type = "soc"; linux,phandle = <0x102>; phandle = <0x102>; pinctrl@07022000 { compatible = "allwinner,sun50iw9p1-r-pinctrl"; reg = <0x0 0x7022000 0x0 0x400>; clocks = <0x1c>; device_type = "r_pio"; gpio-controller; interrupt-controller; #interrupt-cells = <0x3>; #size-cells = <0x0>; #gpio-cells = <0x6>; linux,phandle = <0x103>; phandle = <0x103>; s_rsb0@0 { allwinner,pins = "PL0", "PL1"; allwinner,function = "s_rsb0"; allwinner,muxsel = <0x2>; allwinner,drive = <0x2>; allwinner,pull = <0x1>; linux,phandle = <0x104>; phandle = <0x104>; }; s_twi0@0 { allwinner,pins = "PL0", "PL1"; allwinner,pname = "s_twi0_scl", "s_twi0_sda"; allwinner,function = "s_twi0"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x4b>; phandle = <0x4b>; }; s_twi0@1 { allwinner,pins = "PL0", "PL1"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x4c>; phandle = <0x4c>; }; }; pinctrl@0300b000 { compatible = "allwinner,sun50iw9p1-pinctrl"; reg = <0x0 0x300b000 0x0 0x400>; interrupts = <0x0 0x33 0x4 0x0 0x34 0x4 0x0 0x35 0x4 0x0 0x2b 0x4 0x0 0x36 0x4 0x0 0x37 0x4 0x0 0x38 0x4 0x0 0x39 0x4>; device_type = "pio"; clocks = <0x1d 0x1e 0x9>; gpio-controller; interrupt-controller; #interrupt-cells = <0x3>; #size-cells = <0x0>; #gpio-cells = <0x6>; input-debounce = <0x0 0x0 0x0 0x0 0x0 0x0 0x0>; linux,phandle = <0x53>; phandle = <0x53>; clk_losc@0 { allwinner,pins = "PG10"; allwinner,function = "x32kfout"; allwinner,muxsel = <0x3>; allwinner,drive = <0x2>; allwinner,pull = <0x1>; linux,phandle = <0xd3>; phandle = <0xd3>; }; s_cir0@0 { allwinner,pins = "PH10"; allwinner,function = "ir"; allwinner,muxsel = <0x3>; allwinner,drive = <0x2>; allwinner,pull = <0x1>; linux,phandle = <0x24>; phandle = <0x24>; }; vdevice@0 { allwinner,pins = "PA1", "PA2"; allwinner,function = "Vdevice"; allwinner,muxsel = <0x5>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0xb4>; phandle = <0xb4>; }; uart0@1 { allwinner,pins = "PH0", "PH1"; allwinner,function = "uart0"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x2b>; phandle = <0x2b>; }; uart1@0 { allwinner,pins = "PG6", "PG7", "PG8", "PG9"; allwinner,pname = "uart1_tx", "uart1_rx", "uart1_rts", "uart1_cts"; allwinner,function = "uart1"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x2d>; phandle = <0x2d>; }; uart1@1 { allwinner,pins = "PG6", "PG7", "PG8", "PG9"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x2e>; phandle = <0x2e>; }; uart2@0 { allwinner,pins = "PH5", "PH6", "PH7", "PH8"; allwinner,pname = "uart2_tx", "uart2_rx", "uart2_rts", "uart2_cts"; allwinner,function = "uart2"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x30>; phandle = <0x30>; }; uart2@1 { allwinner,pins = "PH5", "PH6", "PH7", "PH8"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x31>; phandle = <0x31>; }; uart3@0 { allwinner,pins = "PI9", "PI10", "PI11", "PI12"; allwinner,pname = "uart3_tx", "uart3_rx", "uart3_rts", "uart3_cts"; allwinner,function = "uart3"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x33>; phandle = <0x33>; }; uart3@1 { allwinner,pins = "PI9", "PI10", "PI11", "PI12"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x34>; phandle = <0x34>; }; uart4@0 { allwinner,pins = "PI13", "PI14", "PI15", "PI16"; allwinner,pname = "uart4_tx", "uart4_rx", "uart4_rts", "uart4_cts"; allwinner,function = "uart4"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x36>; phandle = <0x36>; }; uart4@1 { allwinner,pins = "PI13", "PI14", "PI15", "PI16"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x37>; phandle = <0x37>; }; uart5@0 { allwinner,pins = "PH2", "PH3"; allwinner,pname = "uart3_tx", "uart3_rx"; allwinner,function = "uart5"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x39>; phandle = <0x39>; }; uart5@1 { allwinner,pins = "PH2", "PH3"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x3a>; phandle = <0x3a>; }; twi0@0 { allwinner,pins = "PA0", "PA1"; allwinner,pname = "twi0_scl", "twi0_sda"; allwinner,function = "twi0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x3c>; phandle = <0x3c>; }; twi0@1 { allwinner,pins = "PA0", "PA1"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x3d>; phandle = <0x3d>; }; twi1@0 { allwinner,pins = "PA2", "PA3"; allwinner,pname = "twi1_scl", "twi1_sda"; allwinner,function = "twi1"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x3f>; phandle = <0x3f>; }; twi1@1 { allwinner,pins = "PA2", "PA3"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x40>; phandle = <0x40>; }; twi2@0 { allwinner,pins = "PE20", "PE21"; allwinner,pname = "twi2_scl", "twi2_sda"; allwinner,function = "twi2"; allwinner,muxsel = <0x5>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x42>; phandle = <0x42>; }; twi2@1 { allwinner,pins = "PE20", "PE21"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x43>; phandle = <0x43>; }; twi3@0 { allwinner,pins = "PA10", "PA11"; allwinner,pname = "twi3_scl", "twi3_sda"; allwinner,function = "twi3"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x45>; phandle = <0x45>; }; twi3@1 { allwinner,pins = "PA10", "PA11"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x46>; phandle = <0x46>; }; twi4@0 { allwinner,pins = "PG15", "PG16"; allwinner,pname = "twi4_scl", "twi4_sda"; allwinner,function = "twi4"; allwinner,muxsel = <0x5>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x48>; phandle = <0x48>; }; twi4@1 { allwinner,pins = "PG15", "PG16"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x49>; phandle = <0x49>; }; ts0@0 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11"; allwinner,pname = "ts0_clk", "ts0_err", "ts0_sync", "ts0_dvld", "ts0_d0", "ts0_d1", "ts0_d2", "ts0_d3", "ts0_d4", "ts0_d5", "ts0_d6", "ts0_d7"; allwinner,function = "ts0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0xc1>; phandle = <0xc1>; }; ts0_sleep@0 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11"; allwinner,pname = "ts0_clk", "ts0_err", "ts0_sync", "ts0_dvld", "ts0_d0", "ts0_d1", "ts0_d2", "ts0_d3", "ts0_d4", "ts0_d5", "ts0_d6", "ts0_d7"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0xc2>; phandle = <0xc2>; }; spi0@0 { allwinner,pins = "PC0", "PC2", "PC4", "PC15", "PC16"; allwinner,pname = "spi0_sclk", "spi0_mosi", "spi0_miso", "spi0_wp", "spi0_hold"; allwinner,function = "spi0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x7e>; phandle = <0x7e>; }; spi0@1 { allwinner,pins = "PC3", "PC7"; allwinner,pname = "spi0_cs0", "spi0_cs1"; allwinner,function = "spi0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x7f>; phandle = <0x7f>; }; spi0@2 { allwinner,pins = "PC0", "PC2", "PC3", "PC4", "PC7", "PC15", "PC16"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x80>; phandle = <0x80>; }; spi1@0 { allwinner,pins = "PH6", "PH7", "PH8"; allwinner,pname = "spi1_sclk", "spi1_mosi", "spi1_miso"; allwinner,function = "spi1"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x82>; phandle = <0x82>; }; spi1@1 { allwinner,pins = "PH5", "PH9"; allwinner,pname = "spi1_cs0", "spi1_cs1"; allwinner,function = "spi1"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x83>; phandle = <0x83>; }; spi1@2 { allwinner,pins = "PH5", "PH6", "PH7", "PH8", "PH9"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x84>; phandle = <0x84>; }; sdc0@0 { allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5"; allwinner,function = "sdc0"; allwinner,muxsel = <0x2>; allwinner,drive = <0x3>; allwinner,pull = <0x1>; linux,phandle = <0x90>; phandle = <0x90>; }; sdc0@1 { allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x91>; phandle = <0x91>; }; sdc0@2 { allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5"; allwinner,function = "uart0_jtag"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x92>; phandle = <0x92>; }; sdc1@0 { allwinner,pins = "PG0", "PG1", "PG2", "PG3", "PG4", "PG5"; allwinner,function = "sdc1"; allwinner,muxsel = <0x2>; allwinner,drive = <0x3>; allwinner,pull = <0x1>; linux,phandle = <0x96>; phandle = <0x96>; }; sdc1@1 { allwinner,pins = "PG0", "PG1", "PG2", "PG3", "PG4", "PG5"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x97>; phandle = <0x97>; }; sdc2@0 { allwinner,pins = "PC1", "PC5", "PC6", "PC8", "PC9", "PC10", "PC11", "PC13", "PC14", "PC15", "PC16"; allwinner,function = "sdc2"; allwinner,muxsel = <0x3>; allwinner,drive = <0x2>; allwinner,pull = <0x1>; linux,phandle = <0x8a>; phandle = <0x8a>; }; sdc2@1 { allwinner,pins = "PC0", "PC1", "PC5", "PC6", "PC8", "PC9", "PC10", "PC11", "PC13", "PC14", "PC15", "PC16"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x8c>; phandle = <0x8c>; }; sdc2@2 { allwinner,pins = "PC0"; allwinner,function = "sdc2"; allwinner,muxsel = <0x3>; allwinner,drive = <0x2>; allwinner,pull = <0x2>; linux,phandle = <0x8b>; phandle = <0x8b>; }; spdif@0 { allwinner,pins = "PH2", "PH3", "PH4"; allwinner,function = "spdif"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x62>; phandle = <0x62>; }; spdif_sleep@0 { allwinner,pins = "PH2", "PH3", "PH4"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x63>; phandle = <0x63>; }; dmic@0 { allwinner,pins = "PI0", "PI1", "PI2", "PI3", "PI4"; allwinner,function = "dmic"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x65>; phandle = <0x65>; }; dmic_sleep@0 { allwinner,pins = "PI0", "PI1", "PI2", "PI3", "PI4"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x66>; phandle = <0x66>; }; ahub_daudio0@0 { allwinner,pins = "PA6", "PA7", "PA8", "PA9"; allwinner,function = "h_pcm0"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x105>; phandle = <0x105>; }; ahub_daudio0_sleep@0 { allwinner,pins = "PA6", "PA7", "PA8", "PA9"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x106>; phandle = <0x106>; }; h_ahub_daudio0@0 { allwinner,pins = "PI0", "PI1", "PI2", "PI3", "PI4"; allwinner,function = "h_pcm0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x6b>; phandle = <0x6b>; }; h_ahub_daudio0_sleep@0 { allwinner,pins = "PI0", "PI1", "PI2", "PI3", "PI4"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x6c>; phandle = <0x6c>; }; ahub_daudio2@0 { allwinner,pins = "PG10", "PG11", "PG12", "PG13", "PG14"; allwinner,function = "h_pcm2"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x6d>; phandle = <0x6d>; }; ahub_daudio2_sleep@0 { allwinner,pins = "PG10", "PG11", "PG12", "PG13", "PG14"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x6e>; phandle = <0x6e>; }; ahub_daudio3@0 { allwinner,pins = "PH5", "PH6", "PH7", "PH8", "PH9"; allwinner,function = "h_pcm3"; allwinner,muxsel = <0x3>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x6f>; phandle = <0x6f>; }; ahub_daudio3_sleep@0 { allwinner,pins = "PH5", "PH6", "PH7", "PH8", "PH9"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x70>; phandle = <0x70>; }; csi1@0 { allwinner,pins = "PE0", "PE2", "PE3", "PE4", "PE5", "PE6", "PE7", "PE8", "PE9", "PE10", "PE11", "PE12", "PE13", "PE14", "PE15", "PE16", "PE17", "PE18", "PE19"; allwinner,pname = "csi1_pck", "csi1_hsync", "csi1_vsync", "csi1_d0", "csi1_d1", "csi1_d2", "csi1_d3", "csi1_d4", "csi1_d5", "csi1_d6", "csi1_d7", "csi1_d8", "csi1_d9", "csi1_d10", "csi1_d11", "csi1_d12", "csi1_d13", "csi1_d14", "csi1_d15"; allwinner,function = "csi1"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0xb0>; phandle = <0xb0>; }; csi1@1 { allwinner,pins = "PE0", "PE2", "PE3", "PE4", "PE5", "PE6", "PE7", "PE8", "PE9", "PE10", "PE11", "PE12", "PE13", "PE14", "PE15", "PE16", "PE17", "PE18", "PE19"; allwinner,pname = "csi1_pck", "csi1_hsync", "csi1_vsync", "csi1_d0", "csi1_d1", "csi1_d2", "csi1_d3", "csi1_d4", "csi1_d5", "csi1_d6", "csi1_d7", "csi1_d8", "csi1_d9", "csi1_d10", "csi1_d11", "csi1_d12", "csi1_d13", "csi1_d14", "csi1_d15"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0xb1>; phandle = <0xb1>; }; csi_mclk0@0 { allwinner,pins = "PG19"; allwinner,pname = "csi_mclk0"; allwinner,function = "csi_mclk0"; allwinner,muxsel = <0x3>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xa8>; phandle = <0xa8>; }; csi_mclk0@1 { allwinner,pins = "PG19"; allwinner,pname = "csi_mclk0"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xa9>; phandle = <0xa9>; }; csi_cci0@0 { allwinner,pins = "PG17", "PG18"; allwinner,pname = "csi_cci0_sck", "csi_cci0_sda"; allwinner,function = "csi_cci0"; allwinner,muxsel = <0x3>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xac>; phandle = <0xac>; }; csi_cci0@1 { allwinner,pins = "PG17", "PG18"; allwinner,pname = "csi_cci0_sck", "csi_cci0_sda"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xad>; phandle = <0xad>; }; csi_mclk1@0 { allwinner,pins = "PE1"; allwinner,pname = "csi_mclk1"; allwinner,function = "csi_mclk1"; allwinner,muxsel = <0x2>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xaa>; phandle = <0xaa>; }; csi_mclk1@1 { allwinner,pins = "PE1"; allwinner,pname = "csi_mclk1"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xab>; phandle = <0xab>; }; csi_cci1@0 { allwinner,pins = "PE20", "PE21"; allwinner,pname = "csi_cci1_sck", "csi_cci1_sda"; allwinner,function = "csi_cci1"; allwinner,muxsel = <0x2>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xae>; phandle = <0xae>; }; csi_cci1@1 { allwinner,pins = "PE20", "PE21"; allwinner,pname = "csi_cci1_sck", "csi_cci1_sda"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x2>; allwinner,pull = <0x0>; linux,phandle = <0xaf>; phandle = <0xaf>; }; scr0@0 { allwinner,pins = "PG13", "PG14", "PG10", "PG11", "PG12"; allwinner,pname = "scr0_rst", "scr0_det", "scr0_vccen", "scr0_sck", "scr0_sda"; allwinner,function = "sim0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x0>; allwinner,pull = <0x1>; linux,phandle = <0xb8>; phandle = <0xb8>; }; scr0@1 { allwinner,pins = "PG8", "PG9"; allwinner,pname = "scr0_vppen", "scr0_vppp"; allwinner,function = "sim0"; allwinner,muxsel = <0x4>; allwinner,drive = <0x0>; allwinner,pull = <0x1>; linux,phandle = <0xb9>; phandle = <0xb9>; }; scr0@2 { allwinner,pins = "PG8", "PG9", "PG10", "PG11", "PG12", "PG13", "PG14"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x0>; allwinner,pull = <0x0>; linux,phandle = <0xba>; phandle = <0xba>; }; scr1@0 { allwinner,pins = "PH5", "PH6", "PH2", "PH3", "PH4"; allwinner,pname = "scr1_rst", "scr1_det", "scr1_vccen", "scr1_sck", "scr1_sda"; allwinner,function = "sim1"; allwinner,muxsel = <0x5>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x107>; phandle = <0x107>; }; scr1@1 { allwinner,pins = "PH0", "PH1"; allwinner,pname = "scr1_vppen", "scr1_vppp"; allwinner,function = "sim1"; allwinner,muxsel = <0x5>; allwinner,drive = <0x1>; allwinner,pull = <0x1>; linux,phandle = <0x108>; phandle = <0x108>; }; scr1@2 { allwinner,pins = "PH0", "PH1", "PH2", "PH3", "PH4", "PH5", "PH6"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x109>; phandle = <0x109>; }; nand0@2 { allwinner,pins = "PC0", "PC1", "PC2", "PC3", "PC4", "PC5", "PC6", "PC7", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14", "PC15", "PC16"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0xbf>; phandle = <0xbf>; }; ac200@2 { allwinner,pins = "PB0"; allwinner,function = "ac200"; allwinner,muxsel = <0x2>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x10a>; phandle = <0x10a>; }; ac200@3 { allwinner,pins = "PB0"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x1>; allwinner,pull = <0x0>; linux,phandle = <0x10b>; phandle = <0x10b>; }; gmac@0 { allwinner,pins = "PI0", "PI1", "PI2", "PI3", "PI4", "PI5", "PI6", "PI7", "PI8", "PI9", "PI10", "PI11", "PI12", "PI13", "PI14", "PI15", "PI16"; allwinner,function = "gmac0"; allwinner,muxsel = <0x2>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0xce>; phandle = <0xce>; }; gmac@1 { allwinner,pins = "PI0", "PI1", "PI2", "PI3", "PI4", "PI5", "PI6", "PI7", "PI8", "PI9", "PI10", "PI11", "PI12", "PI13", "PI14", "PI15", "PI16"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0xcf>; phandle = <0xcf>; }; gmac1@0 { allwinner,pins = "PA0", "PA1", "PA2", "PA3", "PA4", "PA5", "PA6", "PA7", "PA8", "PA9"; allwinner,function = "gmac1"; allwinner,muxsel = <0x2>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0xd1>; phandle = <0xd1>; }; gmac1@1 { allwinner,pins = "PA0", "PA1", "PA2", "PA3", "PA4", "PA5", "PA6", "PA7", "PA8", "PA9"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0xd2>; phandle = <0xd2>; }; lvds0@0 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7"; allwinner,pname = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7"; allwinner,function = "lvds0"; allwinner,muxsel = <0x3>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x10c>; phandle = <0x10c>; }; lvds0@1 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7"; allwinner,pname = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7"; allwinner,function = "lvds0_suspend"; allwinner,muxsel = <0x7>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x10d>; phandle = <0x10d>; }; lvds1@0 { allwinner,pins = "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,pname = "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,function = "lvds1"; allwinner,muxsel = <0x3>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x10e>; phandle = <0x10e>; }; lvds1@1 { allwinner,pins = "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,pname = "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,function = "lvds1_suspend"; allwinner,muxsel = <0x7>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x10f>; phandle = <0x10f>; }; lvds2link@0 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,pname = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,function = "lvds1"; allwinner,muxsel = <0x3>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x110>; phandle = <0x110>; }; lvds2link@1 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,pname = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD8", "PD9", "PD6", "PD7", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD18", "PD19", "PD16", "PD17"; allwinner,function = "lvds1_suspend"; allwinner,muxsel = <0x7>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x111>; phandle = <0x111>; }; rgb24@0 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD16", "PD17", "PD18", "PD19", "PD20", "PD21", "PD22", "PD23", "PD24", "PD25", "PD26", "PD27"; allwinner,pname = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD16", "PD17", "PD18", "PD19", "PD20", "PD21", "PD22", "PD23", "PD24", "PD25", "PD26", "PD27"; allwinner,function = "rgb24"; allwinner,muxsel = <0x2>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x99>; phandle = <0x99>; }; rgb24@1 { allwinner,pins = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD16", "PD17", "PD18", "PD19", "PD20", "PD21", "PD22", "PD23", "PD24", "PD25", "PD26", "PD27"; allwinner,pname = "PD0", "PD1", "PD2", "PD3", "PD4", "PD5", "PD6", "PD7", "PD8", "PD9", "PD10", "PD11", "PD12", "PD13", "PD14", "PD15", "PD16", "PD17", "PD18", "PD19", "PD20", "PD21", "PD22", "PD23", "PD24", "PD25", "PD26", "PD27"; allwinner,function = "rgb24_suspend"; allwinner,muxsel = <0x7>; allwinner,drive = <0x3>; allwinner,pull = <0x0>; linux,phandle = <0x9a>; phandle = <0x9a>; }; pwm5@0 { allwinner,pins = "PA12"; allwinner,function = "pwm5"; allwinner,muxsel = <0x2>; allwinner,drive = <0xffffffff>; allwinner,pull = <0x0>; allwinner,data = <0xffffffff>; linux,phandle = <0xa2>; phandle = <0xa2>; }; pwm5@1 { allwinner,pins = "PA12"; allwinner,function = "io_disabled"; allwinner,muxsel = <0x7>; allwinner,drive = <0xffffffff>; allwinner,pull = <0x0>; allwinner,data = <0xffffffff>; linux,phandle = <0xa3>; phandle = <0xa3>; }; standby@0 { allwinner,pins = "PH6"; allwinner,function = "gpio_out"; allwinner,muxsel = <0x1>; allwinner,data = <0x0>; allwinner,drive = <0x0>; allwinner,pull = <0x0>; linux,phandle = <0xe0>; phandle = <0xe0>; }; standby@1 { allwinner,pins = "PH7"; allwinner,function = "gpio_out"; allwinner,muxsel = <0x1>; allwinner,data = <0x0>; allwinner,drive = <0x2>; allwinner,pull = <0x2>; linux,phandle = <0xdf>; phandle = <0xdf>; }; standby@2 { allwinner,pins = "PG16"; allwinner,function = "gpio_in"; allwinner,muxsel = <0x0>; allwinner,data = <0x0>; allwinner,drive = <0x0>; allwinner,pull = <0x0>; linux,phandle = <0x112>; phandle = <0x112>; }; card0_boot_para@0 { linux,phandle = <0x184>; phandle = <0x184>; allwinner,pins = "PF0", "PF1", "PF2", "PF3", "PF4", "PF5"; allwinner,function = "card0_boot_para"; allwinner,pname = "sdc_d1", "sdc_d0", "sdc_clk", "sdc_cmd", "sdc_d3", "sdc_d2"; allwinner,muxsel = <0x2>; allwinner,pull = <0x1>; allwinner,drive = <0x3>; allwinner,data = <0xffffffff>; }; card2_boot_para@0 { linux,phandle = <0x185>; phandle = <0x185>; allwinner,pins = "PC5", "PC6", "PC10", "PC13", "PC15", "PC8", "PC9", "PC11", "PC14", "PC16", "PC1"; allwinner,function = "card2_boot_para"; allwinner,pname = "sdc_clk", "sdc_cmd", "sdc_d0", "sdc_d1", "sdc_d2", "sdc_d3", "sdc_d4", "sdc_d5", "sdc_d6", "sdc_d7", "sdc_emmc_rst"; allwinner,muxsel = <0x3>; allwinner,pull = <0x1>; allwinner,drive = <0x3>; allwinner,data = <0xffffffff>; }; card2_boot_para@1 { linux,phandle = <0x186>; phandle = <0x186>; allwinner,pins = "PC0"; allwinner,function = "card2_boot_para"; allwinner,pname = "sdc_ds"; allwinner,muxsel = <0x3>; allwinner,pull = <0x2>; allwinner,drive = <0x3>; allwinner,data = <0xffffffff>; }; twi_para@0 { linux,phandle = <0x187>; phandle = <0x187>; allwinner,pins = "PH14", "PH15"; allwinner,function = "twi_para"; allwinner,pname = "twi_scl", "twi_sda"; allwinner,muxsel = <0x2>; allwinner,pull = <0xffffffff>; allwinner,drive = <0xffffffff>; allwinner,data = <0xffffffff>; }; uart_para@0 { linux,phandle = <0x188>; phandle = <0x188>; allwinner,pins = "PH0", "PH1"; allwinner,function = "uart_para"; allwinner,pname = "uart_debug_tx", "uart_debug_rx"; allwinner,muxsel = <0x2>; allwinner,pull = <0x1>; allwinner,drive = <0xffffffff>; allwinner,data = <0xffffffff>; }; jtag_para@0 { linux,phandle = <0x189>; phandle = <0x189>; allwinner,pins = "PH9", "PH10", "PH11", "PH12"; allwinner,function = "jtag_para"; allwinner,pname = "jtag_ms", "jtag_ck", "jtag_do", "jtag_di"; allwinner,muxsel = <0x3>; allwinner,pull = <0xffffffff>; allwinner,drive = <0xffffffff>; allwinner,data = <0xffffffff>; }; uart0@0 { linux,phandle = <0x18a>; phandle = <0x18a>; allwinner,pins = "PH0", "PH1"; allwinner,function = "uart0"; allwinner,pname = "uart0_tx", "uart0_rx"; allwinner,muxsel = <0x2>; allwinner,pull = <0x1>; allwinner,drive = <0xffffffff>; allwinner,data = <0xffffffff>; }; nand0@0 { linux,phandle = <0x18b>; phandle = <0x18b>; allwinner,pins = "PC0", "PC1", "PC2", "PC4", "PC6", "PC7", "PC8", "PC9", "PC10", "PC11", "PC12", "PC13", "PC14"; allwinner,function = "nand0"; allwinner,pname = "nand0_we", "nand0_ale", "nand0_cle", "nand0_nre", "nand0_d0", "nand0_d1", "nand0_d2", "nand0_d3", "nand0_d4", "nand0_d5", "nand0_d6", "nand0_d7", "nand0_ndqs"; allwinner,muxsel = <0x2>; allwinner,pull = <0x0>; allwinner,drive = <0x1>; allwinner,data = <0xffffffff>; }; nand0@1 { linux,phandle = <0x18c>; phandle = <0x18c>; allwinner,pins = "PC3", "PC5", "PC15", "PC16"; allwinner,function = "nand0"; allwinner,pname = "nand0_ce0", "nand0_rb0", "nand0_ce1", "nand0_rb1"; allwinner,muxsel = <0x2>; allwinner,pull = <0x1>; allwinner,drive = <0x1>; allwinner,data = <0xffffffff>; }; }; auto_print { device_type = "auto_print"; status = "okay"; }; dma-controller@03002000 { compatible = "allwinner,sun50i-dma"; reg = <0x0 0x3002000 0x0 0x1000>; interrupts = <0x0 0x2a 0x4>; clocks = <0x1f>; #dma-cells = <0x1>; linux,phandle = <0x113>; phandle = <0x113>; }; mbus-controller@047fa000 { compatible = "allwinner,sun50i-mbus"; reg = <0x0 0x47fa000 0x0 0x1000>; #mbus-cells = <0x1>; linux,phandle = <0x114>; phandle = <0x114>; }; arisc { compatible = "allwinner,sunxi-arisc"; #address-cells = <0x2>; #size-cells = <0x2>; clocks = <0x1e 0x20 0x9 0x2>; clock-names = "losc", "iosc", "hosc", "pll_periph0"; powchk_used = <0x0>; power_reg = <0x2309621>; system_power = <0x32>; }; arisc_space { compatible = "allwinner,arisc_space"; space1 = <0x48040000 0x0 0x14000>; space2 = <0x48100000 0x18000 0x4000>; space3 = <0x48104000 0x0 0x1000>; space4 = <0x48105000 0x0 0x1000>; }; standby_space { compatible = "allwinner,sun50iw9-usbstandby"; space1 = <0x40020000 0x0 0x800>; }; msgbox@03003000 { compatible = "allwinner,msgbox"; clocks = <0x21>; clock-names = "clk_msgbox"; reg = <0x0 0x3003000 0x0 0x1000>; interrupts = <0x0 0x27 0x1>; status = "okay"; linux,phandle = <0x115>; phandle = <0x115>; }; hwspinlock@3004000 { compatible = "allwinner,sunxi-hwspinlock"; clocks = <0x22 0x23>; clock-names = "clk_hwspinlock_rst", "clk_hwspinlock_bus"; reg = <0x0 0x3004000 0x0 0x1000>; num-locks = <0x8>; status = "okay"; linux,phandle = <0x116>; phandle = <0x116>; }; s_cir@07040000 { compatible = "allwinner,s_cir"; reg = <0x0 0x7040000 0x0 0x400>; interrupts = <0x0 0x6a 0x4>; pinctrl-names = "default"; pinctrl-0 = <0x24>; clocks = <0x9 0x25>; supply = "vcc-pl"; supply_vol = "3300000"; status = "okay"; s_cir0_used = <0x1>; ir_power_key_code0 = <0x40>; ir_addr_code0 = <0xfe01>; ir_power_key_code1 = <0x1a>; ir_addr_code1 = <0xfb04>; ir_power_key_code2 = <0xf2>; ir_addr_code2 = <0x2992>; ir_power_key_code3 = <0x57>; ir_addr_code3 = <0x9f00>; ir_power_key_code4 = <0xdc>; ir_addr_code4 = <0x4cb3>; ir_power_key_code5 = <0x18>; ir_addr_code5 = <0xff00>; ir_power_key_code6 = <0xdc>; ir_addr_code6 = <0xdd22>; ir_power_key_code7 = <0xd>; ir_addr_code7 = <0xbc00>; ir_power_key_code8 = <0x4d>; ir_addr_code8 = <0x4040>; ir_power_key_code9 = <0x51>; ir_addr_code9 = <0x7f80>; wakeup-source; linux,phandle = <0x117>; phandle = <0x117>; }; timer@03009000 { compatible = "allwinner,sun4i-a10-timer"; device_type = "soc_timer"; reg = <0x0 0x3009000 0x0 0x400>; interrupts = <0x0 0x30 0x4>; clocks = <0x9>; linux,phandle = <0x118>; phandle = <0x118>; }; rtc@07000000 { compatible = "allwinner,sunxi-rtc"; device_type = "rtc"; auto_switch; wakeup-source; reg = <0x0 0x7000000 0x0 0x200>; interrupts = <0x0 0x68 0x4>; gpr_offset = <0x100>; gpr_len = <0x8>; gpr_cur_pos = <0x6>; linux,phandle = <0x119>; phandle = <0x119>; }; watchdog@030090a0 { compatible = "allwinner,sun50i-wdt"; reg = <0x0 0x30090a0 0x0 0x20>; interrupts = <0x0 0x32 0x4>; linux,phandle = <0x11a>; phandle = <0x11a>; }; ve@01c0e000 { compatible = "allwinner,sunxi-cedar-ve"; reg = <0x0 0x1c0e000 0x0 0x1000 0x0 0x3000000 0x0 0x10 0x0 0x3001000 0x0 0x1000>; interrupts = <0x0 0x5d 0x4>; clocks = <0x26 0x27>; iommus = <0x28 0x3 0x1>; linux,phandle = <0x11b>; phandle = <0x11b>; }; vp9@01c00000 { compatible = "allwinner,sunxi-google-vp9"; reg = <0x0 0x1c00000 0x0 0x1000 0x0 0x3000000 0x0 0x10 0x0 0x3001000 0x0 0x1000>; interrupts = <0x0 0x5a 0x4>; clocks = <0x26>; iommus = <0x28 0x2 0x1>; #clocks = <0xc>; linux,phandle = <0x11c>; phandle = <0x11c>; }; uart@05000000 { compatible = "allwinner,sun50i-uart"; device_type = "uart0"; reg = <0x0 0x5000000 0x0 0x400>; interrupts = <0x0 0x0 0x4>; clocks = <0x29>; pinctrl-names = "default", "sleep"; pinctrl-1 = <0x2b>; uart0_port = <0x0>; uart0_type = <0x2>; status = "okay"; linux,phandle = <0x11d>; phandle = <0x11d>; pinctrl-0 = <0x18a>; }; uart@05000400 { compatible = "allwinner,sun50i-uart"; device_type = "uart1"; reg = <0x0 0x5000400 0x0 0x400>; interrupts = <0x0 0x1 0x4>; clocks = <0x2c>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x2d>; pinctrl-1 = <0x2e>; uart1_port = <0x1>; uart1_type = <0x4>; status = "okay"; linux,phandle = <0x11e>; phandle = <0x11e>; }; uart@05000800 { compatible = "allwinner,sun50i-uart"; device_type = "uart2"; reg = <0x0 0x5000800 0x0 0x400>; interrupts = <0x0 0x2 0x4>; clocks = <0x2f>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x30>; pinctrl-1 = <0x31>; uart2_port = <0x2>; uart2_type = <0x4>; status = "disabled"; linux,phandle = <0x11f>; phandle = <0x11f>; }; uart@05000c00 { compatible = "allwinner,sun50i-uart"; device_type = "uart3"; reg = <0x0 0x5000c00 0x0 0x400>; interrupts = <0x0 0x3 0x4>; clocks = <0x32>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x33>; pinctrl-1 = <0x34>; uart3_port = <0x3>; uart3_type = <0x4>; status = "disabled"; linux,phandle = <0x120>; phandle = <0x120>; }; uart@05001000 { compatible = "allwinner,sun50i-uart"; device_type = "uart4"; reg = <0x0 0x5001000 0x0 0x400>; interrupts = <0x0 0x4 0x4>; clocks = <0x35>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x36>; pinctrl-1 = <0x37>; uart4_port = <0x4>; uart4_type = <0x4>; status = "disabled"; linux,phandle = <0x121>; phandle = <0x121>; }; uart@05001400 { compatible = "allwinner,sun50i-uart"; device_type = "uart5"; reg = <0x0 0x5001400 0x0 0x400>; interrupts = <0x0 0x5 0x4>; clocks = <0x38>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x39>; pinctrl-1 = <0x3a>; uart5_port = <0x5>; uart5_type = <0x2>; status = "disabled"; linux,phandle = <0x122>; phandle = <0x122>; }; twi@0x05002000 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-twi"; device_type = "twi0"; reg = <0x0 0x5002000 0x0 0x400>; interrupts = <0x0 0x6 0x4>; clocks = <0x3b>; clock-frequency = <0x61a80>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x3c>; pinctrl-1 = <0x3d>; status = "disable"; linux,phandle = <0x123>; phandle = <0x123>; }; twi@0x05002400 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-twi"; device_type = "twi1"; reg = <0x0 0x5002400 0x0 0x400>; interrupts = <0x0 0x7 0x4>; clocks = <0x3e>; clock-frequency = <0x30d40>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x3f>; pinctrl-1 = <0x40>; status = "disable"; linux,phandle = <0x124>; phandle = <0x124>; }; twi@0x05002800 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-twi"; device_type = "twi2"; reg = <0x0 0x5002800 0x0 0x400>; interrupts = <0x0 0x8 0x4>; clocks = <0x41>; clock-frequency = <0x30d40>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x42>; pinctrl-1 = <0x43>; status = "disable"; linux,phandle = <0x125>; phandle = <0x125>; }; twi@0x05002c00 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-twi"; device_type = "twi3"; reg = <0x0 0x5002c00 0x0 0x400>; interrupts = <0x0 0x9 0x4>; clocks = <0x44>; clock-frequency = <0x30d40>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x45>; pinctrl-1 = <0x46>; status = "okay"; linux,phandle = <0x126>; phandle = <0x126>; }; twi@0x05003000 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-twi"; device_type = "twi4"; reg = <0x0 0x5003000 0x0 0x400>; interrupts = <0x0 0xa 0x4>; clocks = <0x47>; clock-frequency = <0x30d40>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x48>; pinctrl-1 = <0x49>; status = "disable"; linux,phandle = <0x127>; phandle = <0x127>; }; twi@0x07081400 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-twi"; device_type = "twi5"; reg = <0x0 0x7081400 0x0 0x400>; interrupts = <0x0 0x69 0x4>; clocks = <0x4a>; clock-frequency = <0x30d40>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x4b>; pinctrl-1 = <0x4c>; status = "okay"; no_suspend = <0x1>; linux,phandle = <0x128>; phandle = <0x128>; pmu { compatible = "x-powers,axp1530"; reg = <0x36>; wakeup-source; linux,phandle = <0x129>; phandle = <0x129>; standby_param { vcc-dram = <0x4>; linux,phandle = <0x12a>; phandle = <0x12a>; }; regulators { dcdc1 { regulator-name = "axp1530-dcdc1"; regulator-min-microvolt = <0x7a120>; regulator-max-microvolt = <0x33e140>; regulator-step-delay-us = <0x19>; regulator-final-delay-us = <0x32>; regulator-always-on; linux,phandle = <0x12b>; phandle = <0x12b>; }; dcdc2 { regulator-name = "axp1530-dcdc2"; regulator-min-microvolt = <0x7a120>; regulator-max-microvolt = <0x177fa0>; regulator-step-delay-us = <0x19>; regulator-final-delay-us = <0x32>; regulator-ramp-delay = <0xc8>; regulator-always-on; linux,phandle = <0xd8>; phandle = <0xd8>; }; dcdc3 { regulator-name = "axp1530-dcdc3"; regulator-min-microvolt = <0x7a120>; regulator-max-microvolt = <0x1c1380>; regulator-step-delay-us = <0x19>; regulator-final-delay-us = <0x32>; regulator-always-on; linux,phandle = <0x12c>; phandle = <0x12c>; }; ldo1 { regulator-name = "axp1530-aldo1"; regulator-min-microvolt = <0x7a120>; regulator-max-microvolt = <0x3567e0>; regulator-step-delay-us = <0x19>; regulator-final-delay-us = <0x32>; regulator-always-on; linux,phandle = <0x68>; phandle = <0x68>; }; ldo2 { regulator-name = "axp1530-dldo1"; regulator-min-microvolt = <0x7a120>; regulator-max-microvolt = <0x3567e0>; regulator-step-delay-us = <0x19>; regulator-final-delay-us = <0x32>; regulator-always-on; linux,phandle = <0x69>; phandle = <0x69>; }; }; }; }; usbc0@0 { device_type = "usbc0"; compatible = "allwinner,sunxi-otg-manager"; usb_port_type = <0x1>; usb_detect_type = <0x1>; usb_id_gpio; usb_det_vbus_gpio; usb_drv_vbus_gpio; usb_host_init_state = <0x0>; usb_regulator_io = "nocare"; usb_wakeup_suspend = <0x2>; usb_luns = <0x3>; usb_serial_unique = <0x0>; usb_serial_number = "20080411"; rndis_wceis = <0x1>; wakeup-source; status = "okay"; usb_detect_mode = <0x0>; linux,phandle = <0x12d>; phandle = <0x12d>; }; udc-controller@0x05100000 { compatible = "allwinner,sunxi-udc"; reg = <0x0 0x5100000 0x0 0x1000 0x0 0x0 0x0 0x100>; interrupts = <0x0 0x19 0x4>; clocks = <0x4d 0x4e>; status = "okay"; linux,phandle = <0x12e>; phandle = <0x12e>; }; ehci0-controller@0x05101000 { compatible = "allwinner,sunxi-ehci0"; reg = <0x0 0x5101000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x1a 0x4>; clocks = <0x4d 0x4f>; hci_ctrl_no = <0x0>; status = "okay"; linux,phandle = <0x12f>; phandle = <0x12f>; }; ohci0-controller@0x05101400 { compatible = "allwinner,sunxi-ohci0"; reg = <0x0 0x5101000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x1b 0x4>; clocks = <0x4d 0x50 0x51 0x52 0x9 0x1e>; hci_ctrl_no = <0x0>; status = "okay"; linux,phandle = <0x130>; phandle = <0x130>; }; usbc1@0 { device_type = "usbc1"; usb_drv_vbus_gpio = <0x53 0x7 0x8 0x0 0x1 0xffffffff 0xffffffff>; usb_host_init_state = <0x1>; usb_regulator_io = "nocare"; usb_wakeup_suspend = <0x2>; wakeup-source; status = "okay"; linux,phandle = <0x131>; phandle = <0x131>; }; ehci1-controller@0x05200000 { compatible = "allwinner,sunxi-ehci1"; reg = <0x0 0x5200000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x1c 0x4>; clocks = <0x54 0x55>; hci_ctrl_no = <0x1>; status = "okay"; linux,phandle = <0x132>; phandle = <0x132>; }; ohci1-controller@0x05200400 { compatible = "allwinner,sunxi-ohci1"; reg = <0x0 0x5200000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x1d 0x4>; clocks = <0x54 0x56 0x57 0x52 0x9 0x1e>; hci_ctrl_no = <0x1>; status = "okay"; linux,phandle = <0x133>; phandle = <0x133>; }; usbc2@0 { device_type = "usbc2"; usb_drv_vbus_gpio; usb_host_init_state = <0x1>; usb_regulator_io = "nocare"; usb_wakeup_suspend = <0x2>; wakeup-source; status = "okay"; linux,phandle = <0x134>; phandle = <0x134>; }; ehci2-controller@0x05310000 { compatible = "allwinner,sunxi-ehci2"; reg = <0x0 0x5310000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x1e 0x4>; clocks = <0x58 0x59>; hci_ctrl_no = <0x2>; status = "okay"; linux,phandle = <0x135>; phandle = <0x135>; }; ohci2-controller@0x05310400 { compatible = "allwinner,sunxi-ohci2"; reg = <0x0 0x5310000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x1f 0x4>; clocks = <0x58 0x5a 0x5b 0x52 0x9 0x1e>; hci_ctrl_no = <0x2>; status = "okay"; linux,phandle = <0x136>; phandle = <0x136>; }; usbc3@0 { device_type = "usbc3"; usb_drv_vbus_gpio; usb_host_init_state = <0x1>; usb_regulator_io = "nocare"; usb_wakeup_suspend = <0x2>; wakeup-source; status = "okay"; linux,phandle = <0x137>; phandle = <0x137>; }; ehci3-controller@0x05311000 { compatible = "allwinner,sunxi-ehci3"; reg = <0x0 0x5311000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x20 0x4>; clocks = <0x5c 0x5d>; hci_ctrl_no = <0x3>; status = "okay"; linux,phandle = <0x138>; phandle = <0x138>; }; ohci3-controller@0x05311400 { compatible = "allwinner,sunxi-ohci3"; reg = <0x0 0x5311000 0x0 0xfff 0x0 0x0 0x0 0x100 0x0 0x5100000 0x0 0x1000>; interrupts = <0x0 0x21 0x4>; clocks = <0x5c 0x5e 0x5f 0x52 0x9 0x1e>; hci_ctrl_no = <0x3>; status = "okay"; linux,phandle = <0x139>; phandle = <0x139>; }; ac200_codec { compatible = "allwinner,ac200_codec"; status = "disabled"; linux,phandle = <0x13a>; phandle = <0x13a>; }; spdif-controller@0x05093000 { compatible = "allwinner,sunxi-spdif"; reg = <0x0 0x5093000 0x0 0x40>; clocks = <0x60 0x7 0x61>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x62>; pinctrl-1 = <0x63>; device_type = "spdif"; status = "okay"; linux,phandle = <0x75>; phandle = <0x75>; }; dmic-controller@0x05095000 { compatible = "allwinner,sunxi-dmic"; reg = <0x0 0x5095000 0x0 0x50>; clocks = <0x60 0x7 0x64>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x65>; pinctrl-1 = <0x66>; device_type = "dmic"; status = "disabled"; linux,phandle = <0x76>; phandle = <0x76>; }; codec@0x05096000 { compatible = "allwinner,sunxi-internal-codec"; reg = <0x0 0x5096000 0x0 0x31c>; clocks = <0x60 0x7 0x67>; device_type = "codec"; status = "okay"; adcdrc_cfg = <0x0>; adchpf_cfg = <0x0>; dacdrc_cfg = <0x0>; dachpf_cfg = <0x0>; fmin_gain = <0x3>; linein_gain = <0x3>; digital_vol = <0x0>; lineout_vol = <0x1a>; ramp_func_used = <0x1>; avcc-supply = <0x68>; vcc33_audio-supply = <0x69>; linux,phandle = <0x78>; phandle = <0x78>; }; cpudai-controller@0x05096000 { compatible = "allwinner,sunxi-internal-cpudai"; reg = <0x0 0x5096000 0x0 0x31c>; device_type = "cpudai"; status = "okay"; linux,phandle = <0x77>; phandle = <0x77>; }; cpudai0-controller@0x05097000 { compatible = "allwinner,sunxi-ahub-cpudai"; reg = <0x0 0x5097000 0x0 0xadf>; id = <0x0>; status = "okay"; linux,phandle = <0x79>; phandle = <0x79>; }; cpudai1-controller@0x05097000 { compatible = "allwinner,sunxi-ahub-cpudai"; reg = <0x0 0x5097000 0x0 0xadf>; id = <0x1>; status = "okay"; linux,phandle = <0x7a>; phandle = <0x7a>; }; cpudai2-controller@0x05097000 { compatible = "allwinner,sunxi-ahub-cpudai"; reg = <0x0 0x5097000 0x0 0xadf>; id = <0x2>; status = "okay"; linux,phandle = <0x7b>; phandle = <0x7b>; }; cpudai3-controller@0x05097000 { compatible = "allwinner,sunxi-ahub-cpudai"; reg = <0x0 0x5097000 0x0 0xadf>; id = <0x3>; status = "okay"; linux,phandle = <0x13b>; phandle = <0x13b>; }; ahub_codec@0x05097000 { compatible = "allwinner,sunxi-ahub"; reg = <0x0 0x5097000 0x0 0xadf>; clocks = <0x60 0x7 0x6a>; status = "okay"; linux,phandle = <0x7c>; phandle = <0x7c>; }; ahub_daudio0@0x05097000 { compatible = "allwinner,sunxi-ahub-daudio"; reg = <0x0 0x5097000 0x0 0xadf>; clocks = <0x60 0x7 0x6a>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x6b>; pinctrl-1 = <0x6c>; tdm_num = <0x0>; device_type = "ahub_daudio0"; status = "okay"; pinconfig = <0x1>; frametype = <0x0>; pcm_lrck_period = <0x20>; slot_width_select = <0x20>; daudio_master = <0x4>; audio_format = <0x1>; signal_inversion = <0x1>; tdm_config = <0x1>; mclk_div = <0x0>; linux,phandle = <0x71>; phandle = <0x71>; }; ahub_daudio1@0x05097000 { compatible = "allwinner,sunxi-ahub-daudio"; reg = <0x0 0x5097000 0x0 0xadf>; clocks = <0x60 0x7 0x6a>; tdm_num = <0x1>; device_type = "ahub_daudio1"; status = "okay"; pinconfig = <0x0>; frametype = <0x0>; pcm_lrck_period = <0x20>; slot_width_select = <0x20>; daudio_master = <0x4>; audio_format = <0x1>; signal_inversion = <0x1>; tdm_config = <0x1>; mclk_div = <0x1>; linux,phandle = <0x72>; phandle = <0x72>; }; ahub_daudio2@0x05097000 { compatible = "allwinner,sunxi-ahub-daudio"; reg = <0x0 0x5097000 0x0 0xadf>; clocks = <0x60 0x7 0x6a>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x6d>; pinctrl-1 = <0x6e>; tdm_num = <0x2>; device_type = "ahub_daudio2"; status = "disabled"; pinconfig = <0x1>; frametype = <0x0>; pcm_lrck_period = <0x20>; slot_width_select = <0x20>; daudio_master = <0x4>; audio_format = <0x1>; signal_inversion = <0x1>; tdm_config = <0x1>; mclk_div = <0x4>; linux,phandle = <0x73>; phandle = <0x73>; }; ahub_daudio3@0x05097000 { compatible = "allwinner,sunxi-ahub-daudio"; reg = <0x0 0x5097000 0x0 0xadf>; clocks = <0x60 0x7 0x6a>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x6f>; pinctrl-1 = <0x70>; tdm_num = <0x3>; device_type = "ahub_daudio3"; status = "disabled"; pinconfig = <0x1>; frametype = <0x0>; pcm_lrck_period = <0x20>; slot_width_select = <0x20>; daudio_master = <0x4>; audio_format = <0x1>; signal_inversion = <0x1>; tdm_config = <0x1>; mclk_div = <0x4>; linux,phandle = <0x74>; phandle = <0x74>; }; sound@0 { compatible = "allwinner,sunxi-daudio0-machine"; sunxi,cpudai-controller = <0x71>; device_type = "snddaudio0"; status = "okay"; linux,phandle = <0x13c>; phandle = <0x13c>; }; sound@1 { compatible = "allwinner,sunxi-hdmi-machine"; sunxi,cpudai-controller = <0x72>; device_type = "sndhdmi"; status = "okay"; linux,phandle = <0x13d>; phandle = <0x13d>; }; sound@2 { compatible = "allwinner,sunxi-daudio2-machine"; sunxi,cpudai-controller = <0x73>; device_type = "snddaudio2"; status = "disabled"; linux,phandle = <0x13e>; phandle = <0x13e>; }; sound@3 { compatible = "allwinner,sunxi-daudio3-machine"; sunxi,cpudai-controller = <0x74>; device_type = "snddaudio3"; status = "disabled"; linux,phandle = <0x13f>; phandle = <0x13f>; }; sound@4 { compatible = "allwinner,sunxi-spdif-machine"; sunxi,spdif-controller = <0x75>; device_type = "sndspdif"; status = "okay"; linux,phandle = <0x140>; phandle = <0x140>; }; sound@5 { compatible = "allwinner,sunxi-dmic-machine"; sunxi,dmic-controller = <0x76>; device_type = "snddmic"; status = "disabled"; linux,phandle = <0x141>; phandle = <0x141>; }; sound@6 { compatible = "allwinner,sunxi-codec-machine"; sunxi,cpudai-controller = <0x77>; sunxi,audio-codec = <0x78>; device_type = "sndcodec"; status = "okay"; linux,phandle = <0x142>; phandle = <0x142>; }; sound@7 { compatible = "allwinner,sunxi-ahub-machine"; sunxi,cpudai-controller0 = <0x79>; sunxi,cpudai-controller1 = <0x7a>; sunxi,cpudai-controller2 = <0x7b>; sunxi,audio-codec = <0x7c>; device_type = "sndahub"; status = "okay"; linux,phandle = <0x143>; phandle = <0x143>; }; spi@05010000 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-spi"; device_type = "spi0"; reg = <0x0 0x5010000 0x0 0x1000>; interrupts = <0x0 0xc 0x4>; clocks = <0x2 0x7d>; clock-frequency = <0x5f5e100>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x7e 0x7f>; pinctrl-1 = <0x80>; spi0_cs_number = <0x1>; spi0_cs_bitmap = <0x1>; status = "disabled"; linux,phandle = <0x144>; phandle = <0x144>; }; spi@05011000 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sun50i-spi"; device_type = "spi1"; reg = <0x0 0x5011000 0x0 0x1000>; interrupts = <0x0 0xd 0x4>; clocks = <0x2 0x81>; clock-frequency = <0x5f5e100>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x82 0x83>; pinctrl-1 = <0x84>; spi1_cs_number = <0x1>; spi1_cs_bitmap = <0x1>; status = "disable"; spi_slave_mode = <0x0>; linux,phandle = <0x145>; phandle = <0x145>; spi_board1 { device_type = "spi_board1"; compatible = "rohm,dh2228fv"; spi-max-frequency = <0x5f5e100>; reg = <0x0>; spi-rx-bus-width = <0x1>; spi-tx-bus-width = <0x1>; }; }; pcie@0x05400000 { #address-cells = <0x3>; #size-cells = <0x2>; compatible = "allwinner,sun50i-pcie"; reg = <0x0 0x5400000 0x0 0x2000 0x0 0x5410000 0x0 0x10000>; reg-names = "dbi", "config"; device_type = "pci"; ranges = <0x800 0x0 0x5410000 0x0 0x5410000 0x0 0x10000 0x81000000 0x0 0x0 0x0 0x5e00000 0x0 0x10000 0x82000000 0x0 0x5500000 0x0 0x5500000 0x0 0x800000>; num-lanes = <0x1>; interrupts = <0x0 0x7f 0x4 0x0 0x7e 0x4>; interrupt-names = "msi"; #interrupt-cells = <0x1>; interrupt-map-mask = <0x0 0x0 0x0 0x0>; interrupt-map = <0x0 0x0 0x0 0x1 0x85 0x0 0x7f 0x4>; status = "okay"; linux,phandle = <0x146>; phandle = <0x146>; }; sdmmc@04022000 { compatible = "allwinner,sunxi-mmc-v4p6x"; device_type = "sdc2"; reg = <0x0 0x4022000 0x0 0x1000>; interrupts = <0x0 0x25 0x4>; clocks = <0x9 0x86 0x87 0x88 0x89>; clock-names = "osc24m", "pll_periph", "mmc", "ahb", "rst"; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x8a 0x8b>; pinctrl-1 = <0x8c>; bus-width = <0x8>; cap-mmc-highspeed; cap-cmd23; mmc-cache-ctrl; non-removable; max-frequency = <0x5f5e100>; cap-erase; mmc-high-capacity-erase-size; no-sdio; no-sd; sdc_tm4_sm0_freq0 = <0x0>; sdc_tm4_sm0_freq1 = <0x0>; sdc_tm4_sm1_freq0 = <0x0>; sdc_tm4_sm1_freq1 = <0x0>; sdc_tm4_sm2_freq0 = <0x0>; sdc_tm4_sm2_freq1 = <0x0>; sdc_tm4_sm3_freq0 = <0x5000000>; sdc_tm4_sm3_freq1 = <0x5>; sdc_tm4_sm4_freq0 = <0x50000>; sdc_tm4_sm4_freq1 = <0x4>; status = "disabled"; mmc-ddr-1_8v; mmc-hs200-1_8v; mmc-hs400-1_8v; sunxi-power-save-mode; sunxi-dis-signal-vol-sw; ctl-spec-caps = <0x8>; vmmc-supply = <0x69>; vqmmc-supply = <0x68>; linux,phandle = <0x147>; phandle = <0x147>; }; sdmmc@04020000 { compatible = "allwinner,sunxi-mmc-v4p1x"; device_type = "sdc0"; reg = <0x0 0x4020000 0x0 0x1000>; interrupts = <0x0 0x23 0x4>; clocks = <0x9 0x86 0x8d 0x8e 0x8f>; clock-names = "osc24m", "pll_periph", "mmc", "ahb", "rst"; pinctrl-names = "default", "sleep", "uart_jtag"; pinctrl-0 = <0x90>; pinctrl-1 = <0x91>; pinctrl-2 = <0x92>; max-frequency = <0x8f0d180>; bus-width = <0x4>; cd-gpios = <0x53 0x8 0x10 0x6 0x1 0x3 0xffffffff>; cap-sd-highspeed; cap-wait-while-busy; no-sdio; no-mmc; sunxi-power-save-mode; status = "okay"; cd-used-24M; sd-uhs-sdr50; sd-uhs-ddr50; sd-uhs-sdr104; ctl-spec-caps = <0x8>; vmmc-supply = <0x69>; vqmmc33sw-supply = <0x69>; vdmmc33sw-supply = <0x69>; vqmmc18sw-supply = <0x68>; vdmmc18sw-supply = <0x68>; linux,phandle = <0x148>; phandle = <0x148>; }; sdmmc@04021000 { compatible = "allwinner,sunxi-mmc-v4p1x"; device_type = "sdc1"; reg = <0x0 0x4021000 0x0 0x1000>; interrupts = <0x0 0x24 0x4>; clocks = <0x9 0x86 0x93 0x94 0x95>; clock-names = "osc24m", "pll_periph", "mmc", "ahb", "rst"; pinctrl-names = "default", "sleep"; pinctrl-0 = <0x96>; pinctrl-1 = <0x97>; max-frequency = <0x8f0d180>; bus-width = <0x4>; keep-power-in-suspend; sunxi-dly-52M-ddr4 = <0x1 0x0 0x0 0x0 0x2>; sunxi-dly-104M = <0x1 0x0 0x0 0x0 0x1>; sunxi-dly-208M = <0x1 0x0 0x0 0x0 0x1>; status = "okay"; no-mmc; no-sd; cap-sd-highspeed; sd-uhs-sdr50; sd-uhs-ddr50; sd-uhs-sdr104; sunxi-dis-signal-vol-sw; cap-sdio-irq; ignore-pm-notify; ctl-spec-caps = <0x8>; linux,phandle = <0xd4>; phandle = <0xd4>; }; disp@01000000 { compatible = "allwinner,sunxi-disp"; reg = <0x0 0x1000000 0x0 0x1400000 0x0 0x6510000 0x0 0x200 0x0 0x6511000 0x0 0x1000 0x0 0x6512000 0x0 0x1000 0x0 0x6515000 0x0 0x1000 0x0 0x6516000 0x0 0x1000>; interrupts = <0x0 0x58 0x4 0x0 0x40 0x4 0x0 0x41 0x4 0x0 0x42 0x4 0x0 0x43 0x4>; clocks = <0xb 0x98 0x12 0x13 0x14 0x15 0x16>; boot_disp = <0x0>; fb_base = <0x0>; iommus = <0x28 0x0 0x0>; status = "okay"; disp_init_enable = <0x1>; disp_mode = <0x0>; screen0_output_type = <0x3>; screen0_output_mode = <0xa>; screen0_output_format = <0x0>; screen0_output_bits = <0x0>; screen0_output_eotf = <0x4>; screen0_output_cs = <0x101>; screen0_output_dvi_hdmi = <0x2>; screen0_output_range = <0x2>; screen0_output_scan = <0x0>; screen0_output_aspect_ratio = <0x8>; screen1_output_type = <0x2>; screen1_output_mode = <0xb>; screen1_output_format = <0x1>; screen1_output_bits = <0x0>; screen1_output_eotf = <0x4>; screen1_output_cs = <0x104>; screen1_output_dvi_hdmi = <0x0>; screen1_output_range = <0x2>; screen1_output_scan = <0x0>; screen1_output_aspect_ratio = <0x8>; dev0_output_type = <0x4>; dev0_output_mode = <0xa>; dev0_screen_id = <0x0>; dev0_do_hpd = <0x1>; dev1_output_type = <0x2>; dev1_output_mode = <0xb>; dev1_screen_id = <0x1>; dev1_do_hpd = <0x1>; dev2_output_type = <0x0>; def_output_dev = <0x0>; hdmi_mode_check = <0x1>; fb0_format = <0x0>; fb0_width = <0x500>; fb0_height = <0x2d0>; fb1_format = <0x0>; fb1_width = <0x0>; fb1_height = <0x0>; chn_cfg_mode = <0x1>; disp_para_zone = <0x1>; linux,phandle = <0x149>; phandle = <0x149>; }; tv0@01c94000 { compatible = "allwinner,sunxi-tv"; reg = <0x0 0x6520000 0x0 0x100 0x0 0x6524000 0x0 0x3fc>; clocks = <0x18 0x17>; device_type = "tv0"; pinctrl-names = "active", "sleep"; status = "okay"; dac_src0 = <0x0>; dac_type0 = <0x0>; interface = <0x1>; linux,phandle = <0x14a>; phandle = <0x14a>; }; lcd0@01c0c000 { compatible = "allwinner,sunxi-lcd0"; pinctrl-names = "active", "sleep"; status = "okay"; lcd_used = <0x0>; lcd_driver_name = "default_lcd"; lcd_backlight = <0x32>; lcd_if = <0x0>; lcd_x = <0x500>; lcd_y = <0x320>; lcd_width = <0x96>; lcd_height = <0x5e>; lcd_dclk_freq = <0x46>; lcd_pwm_used = <0x0>; lcd_pwm_ch = <0x0>; lcd_pwm_freq = <0xc350>; lcd_pwm_pol = <0x0>; lcd_pwm_max_limit = <0xff>; lcd_hbp = <0x14>; lcd_ht = <0x58a>; lcd_hspw = <0xa>; lcd_vbp = <0xa>; lcd_vt = <0x32e>; lcd_vspw = <0x5>; lcd_lvds_if = <0x0>; lcd_lvds_colordepth = <0x0>; lcd_lvds_mode = <0x0>; lcd_frm = <0x0>; lcd_hv_clk_phase = <0x0>; lcd_hv_sync_polarity = <0x0>; lcd_gamma_en = <0x0>; lcd_bright_curve_en = <0x0>; lcd_cmap_en = <0x0>; deu_mode = <0x0>; lcdgamma4iep = <0x16>; smart_color = <0x5a>; lcd_pin_power = "bldo1"; lcd_power = "dc1sw"; pinctrl-0 = <0x99>; pinctrl-1 = <0x9a>; linux,phandle = <0x14b>; phandle = <0x14b>; }; lcd1@01c0c001 { compatible = "allwinner,sunxi-lcd1"; pinctrl-names = "active", "sleep"; status = "okay"; linux,phandle = <0x14c>; phandle = <0x14c>; }; boot_disp { compatible = "allwinner,boot_disp"; linux,phandle = <0x14d>; phandle = <0x14d>; }; hdmi@06000000 { compatible = "allwinner,sunxi-hdmi"; reg = <0x0 0x6000000 0x0 0x100000>; interrupts = <0x0 0x3f 0x0>; clocks = <0xf 0x10 0x19 0x11>; status = "okay"; hdmi_used = <0x1>; hdmi_power_cnt = <0x2>; hdmi_power0 = "vcc-hdmi"; hdmi_power1 = "vdd-hdmi"; hdmi_hdcp_enable = <0x1>; hdmi_hdcp22_enable = <0x1>; hdmi_cts_compatibility = <0x0>; hdmi_cec_support = <0x0>; hdmi_cec_super_standby = <0x0>; hdmi_skip_bootedid = <0x1>; ddc_en_io_ctrl = <0x0>; power_io_ctrl = <0x0>; linux,phandle = <0x14e>; phandle = <0x14e>; }; g2d@01480000 { compatible = "allwinner,sunxi-g2d"; reg = <0x0 0x1480000 0x0 0x3ffff>; interrupts = <0x0 0x5a 0x4>; clocks = <0xd>; iommus = <0x28 0x6 0x1>; linux,phandle = <0x14f>; phandle = <0x14f>; }; tr@01000000 { compatible = "allwinner,sun50i-tr"; reg = <0x0 0x1000000 0x0 0x200bc>; interrupts = <0x0 0x60 0x4>; clocks = <0xb>; status = "okay"; linux,phandle = <0x150>; phandle = <0x150>; }; pwm@0300a000 { compatible = "allwinner,sunxi-pwm"; reg = <0x0 0x300a000 0x0 0x3ff>; clocks = <0x9b>; pwm-number = <0x6>; pwm-base = <0x0>; pwms = <0x9c 0x9d 0x9e 0x9f 0xa0 0xa1>; linux,phandle = <0x151>; phandle = <0x151>; }; pwm0@0300a000 { compatible = "allwinner,sunxi-pwm0"; pinctrl-names = "active", "sleep"; reg_base = <0x300a000>; linux,phandle = <0x9c>; phandle = <0x9c>; }; pwm1@0300a000 { compatible = "allwinner,sunxi-pwm1"; pinctrl-names = "active", "sleep"; reg_base = <0x300a000>; linux,phandle = <0x9d>; phandle = <0x9d>; }; pwm2@0300a000 { compatible = "allwinner,sunxi-pwm2"; pinctrl-names = "active", "sleep"; reg_base = <0x300a000>; linux,phandle = <0x9e>; phandle = <0x9e>; }; pwm3@0300a000 { compatible = "allwinner,sunxi-pwm3"; pinctrl-names = "active", "sleep"; reg_base = <0x300a000>; linux,phandle = <0x9f>; phandle = <0x9f>; }; pwm4@0300a000 { compatible = "allwinner,sunxi-pwm4"; pinctrl-names = "active", "sleep"; reg_base = <0x300a000>; linux,phandle = <0xa0>; phandle = <0xa0>; }; pwm5@0300a000 { compatible = "allwinner,sunxi-pwm5"; pinctrl-names = "active", "sleep"; reg_base = <0x300a000>; pinctrl-0 = <0xa2>; pinctrl-1 = <0xa3>; clk_bypass_output = <0x1>; linux,phandle = <0xa1>; phandle = <0xa1>; }; ac200 { compatible = "allwinner,sunxi-ac200"; status = "okay"; tv_used = <0x1>; tv_twi_used = <0x1>; tv_twi_id = <0x3>; tv_twi_addr = <0x10>; tv_pwm_ch = <0x5>; linux,phandle = <0x152>; phandle = <0x152>; }; vind@0 { compatible = "allwinner,sunxi-vin-media", "simple-bus"; #address-cells = <0x2>; #size-cells = <0x2>; ranges; device_id = <0x0>; vind0_clk = <0x16e36000>; reg = <0x0 0x6600800 0x0 0x200 0x0 0x6600000 0x0 0x800>; clocks = <0xa4 0xa5 0xa6 0x9 0xa5 0xa7 0x9 0xa5>; pinctrl-names = "mclk0-default", "mclk0-sleep", "mclk1-default", "mclk1-sleep"; pinctrl-0 = <0xa8>; pinctrl-1 = <0xa9>; pinctrl-2 = <0xaa>; pinctrl-3 = <0xab>; status = "okay"; linux,phandle = <0x153>; phandle = <0x153>; cci@0 { compatible = "allwinner,sunxi-csi_cci"; reg = <0x0 0x6614000 0x0 0x400>; interrupts = <0x0 0x4b 0x4>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0xac>; pinctrl-1 = <0xad>; device_id = <0x0>; status = "okay"; linux,phandle = <0x154>; phandle = <0x154>; }; cci@1 { compatible = "allwinner,sunxi-csi_cci"; reg = <0x0 0x6614400 0x0 0x400>; interrupts = <0x0 0x4c 0x4>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0xae>; pinctrl-1 = <0xaf>; device_id = <0x1>; status = "okay"; linux,phandle = <0x155>; phandle = <0x155>; }; csi@0 { device_type = "csi0"; compatible = "allwinner,sunxi-csi"; reg = <0x0 0x6601000 0x0 0x1000>; interrupts = <0x0 0x49 0x4>; device_id = <0x0>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x156>; phandle = <0x156>; }; csi@1 { device_type = "csi1"; compatible = "allwinner,sunxi-csi"; reg = <0x0 0x6602000 0x0 0x1000>; interrupts = <0x0 0x4a 0x4>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0xb0>; pinctrl-1 = <0xb1>; device_id = <0x1>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x157>; phandle = <0x157>; }; mipi@0 { compatible = "allwinner,sunxi-mipi"; reg = <0x0 0x660c000 0x0 0x1000>; interrupts = <0x0 0x4d 0x4>; device_id = <0x0>; status = "okay"; linux,phandle = <0x158>; phandle = <0x158>; }; isp@0 { compatible = "allwinner,sunxi-isp"; device_id = <0x0>; status = "okay"; linux,phandle = <0x159>; phandle = <0x159>; }; isp@1 { compatible = "allwinner,sunxi-isp"; device_id = <0x1>; status = "okay"; linux,phandle = <0x15a>; phandle = <0x15a>; }; scaler@0 { compatible = "allwinner,sunxi-scaler"; device_id = <0x0>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x15b>; phandle = <0x15b>; }; scaler@1 { compatible = "allwinner,sunxi-scaler"; device_id = <0x1>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x15c>; phandle = <0x15c>; }; scaler@2 { compatible = "allwinner,sunxi-scaler"; device_id = <0x2>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x15d>; phandle = <0x15d>; }; scaler@3 { compatible = "allwinner,sunxi-scaler"; device_id = <0x3>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x15e>; phandle = <0x15e>; }; scaler@4 { compatible = "allwinner,sunxi-scaler"; device_id = <0x4>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x15f>; phandle = <0x15f>; }; scaler@5 { compatible = "allwinner,sunxi-scaler"; device_id = <0x5>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x160>; phandle = <0x160>; }; actuator@0 { device_type = "actuator0"; compatible = "allwinner,sunxi-actuator"; actuator0_name = "ad5820_act"; actuator0_slave = <0x18>; actuator0_af_pwdn; actuator0_afvdd = "afvcc-csi"; actuator0_afvdd_vol = <0x2ab980>; status = "disabled"; linux,phandle = <0xb3>; phandle = <0xb3>; }; flash@0 { device_type = "flash0"; compatible = "allwinner,sunxi-flash"; flash0_type = <0x2>; flash0_en; flash0_mode; flash0_flvdd = [00]; flash0_flvdd_vol; device_id = <0x0>; status = "disabled"; linux,phandle = <0xb2>; phandle = <0xb2>; }; sensor@0 { device_type = "sensor0"; compatible = "allwinner,sunxi-sensor"; sensor0_mname = "ov5640"; sensor0_twi_cci_id = <0x0>; sensor0_twi_addr = <0x78>; sensor0_mclk_id = <0x0>; sensor0_pos = "rear"; sensor0_isp_used = <0x0>; sensor0_fmt = <0x0>; sensor0_stby_mode = <0x0>; sensor0_vflip = <0x0>; sensor0_hflip = <0x0>; sensor0_cameravdd-supply; sensor0_cameravdd_vol = <0x2ab980>; sensor0_iovdd-supply; sensor0_iovdd_vol = <0x2ab980>; sensor0_avdd-supply; sensor0_avdd_vol = <0x2ab980>; sensor0_dvdd-supply; sensor0_dvdd_vol = <0x16e360>; sensor0_power_en; sensor0_reset = <0x53 0x4 0xe 0x1 0x0 0x1 0x0>; sensor0_pwdn = <0x53 0x4 0x10 0x1 0x0 0x1 0x0>; sensor0_sm_vs; flash_handle = <0xb2>; act_handle = <0xb3>; device_id = <0x0>; status = "okay"; linux,phandle = <0x161>; phandle = <0x161>; }; sensor@1 { device_type = "sensor1"; compatible = "allwinner,sunxi-sensor"; sensor1_mname = "ov5647"; sensor1_twi_cci_id = <0x1>; sensor1_twi_addr = <0x6c>; sensor1_mclk_id = <0x1>; sensor1_pos = "front"; sensor1_isp_used = <0x0>; sensor1_fmt = <0x0>; sensor1_stby_mode = <0x0>; sensor1_vflip = <0x0>; sensor1_hflip = <0x0>; sensor1_cameravdd-supply; sensor1_cameravdd_vol = <0x2ab980>; sensor1_iovdd-supply; sensor1_iovdd_vol = <0x2ab980>; sensor1_avdd-supply; sensor1_avdd_vol = <0x2ab980>; sensor1_dvdd-supply; sensor1_dvdd_vol = <0x16e360>; sensor1_power_en; sensor1_reset = <0x53 0x4 0xe 0x1 0x0 0x1 0x0>; sensor1_pwdn = <0x53 0x4 0xf 0x1 0x0 0x1 0x0>; sensor1_sm_vs; flash_handle; act_handle; device_id = <0x1>; status = "okay"; linux,phandle = <0x162>; phandle = <0x162>; }; vinc@0 { device_type = "vinc0"; compatible = "allwinner,sunxi-vin-core"; reg = <0x0 0x6609000 0x0 0x200>; interrupts = <0x0 0x45 0x4>; vinc0_csi_sel = <0x0>; vinc0_mipi_sel = <0x0>; vinc0_isp_sel = <0x0>; vinc0_isp_tx_ch = <0x0>; vinc0_rear_sensor_sel = <0x0>; vinc0_front_sensor_sel = <0x0>; vinc0_sensor_list = <0x0>; device_id = <0x0>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x163>; phandle = <0x163>; }; vinc@1 { device_type = "vinc1"; compatible = "allwinner,sunxi-vin-core"; reg = <0x0 0x6609200 0x0 0x200>; interrupts = <0x0 0x46 0x4>; vinc1_csi_sel = <0x0>; vinc1_mipi_sel = <0x0>; vinc1_isp_sel = <0x0>; vinc1_isp_tx_ch = <0x0>; vinc1_rear_sensor_sel = <0x0>; vinc1_front_sensor_sel = <0x0>; vinc1_sensor_list = <0x0>; device_id = <0x1>; iommus = <0x28 0x4 0x1>; status = "okay"; linux,phandle = <0x164>; phandle = <0x164>; }; vinc@2 { device_type = "vinc2"; compatible = "allwinner,sunxi-vin-core"; reg = <0x0 0x6609400 0x0 0x200>; interrupts = <0x0 0x47 0x4>; vinc2_csi_sel = <0x0>; vinc2_mipi_sel = <0x0>; vinc2_isp_sel = <0x0>; vinc2_isp_tx_ch = <0x0>; vinc2_rear_sensor_sel = <0x0>; vinc2_front_sensor_sel = <0x0>; vinc2_sensor_list = <0x0>; device_id = <0x2>; iommus = <0x28 0x4 0x1>; status = "disabled"; linux,phandle = <0x165>; phandle = <0x165>; }; vinc@3 { device_type = "vinc3"; compatible = "allwinner,sunxi-vin-core"; reg = <0x0 0x6609600 0x0 0x200>; interrupts = <0x0 0x48 0x4>; vinc3_csi_sel = <0x0>; vinc3_mipi_sel = <0x0>; vinc3_isp_sel = <0x0>; vinc3_isp_tx_ch = <0x0>; vinc3_rear_sensor_sel = <0x0>; vinc3_front_sensor_sel = <0x0>; vinc3_sensor_list = <0x0>; device_id = <0x3>; iommus = <0x28 0x4 0x1>; status = "disabled"; linux,phandle = <0x166>; phandle = <0x166>; }; vinc@4 { device_type = "vinc4"; compatible = "allwinner,sunxi-vin-core"; reg = <0x0 0x6609800 0x0 0x200>; interrupts = <0x0 0x4f 0x4>; vinc4_csi_sel = <0x1>; vinc4_mipi_sel = <0xff>; vinc4_isp_sel = <0x1>; vinc4_isp_tx_ch = <0x0>; vinc4_rear_sensor_sel = <0x1>; vinc4_front_sensor_sel = <0x1>; vinc4_sensor_list = <0x0>; device_id = <0x4>; iommus = <0x28 0x5 0x1>; status = "disabled"; linux,phandle = <0x167>; phandle = <0x167>; }; vinc@5 { device_type = "vinc5"; compatible = "allwinner,sunxi-vin-core"; reg = <0x0 0x6609a00 0x0 0x200>; interrupts = <0x0 0x50 0x4>; vinc5_csi_sel = <0x1>; vinc5_mipi_sel = <0xff>; vinc5_isp_sel = <0x1>; vinc5_isp_tx_ch = <0x0>; vinc5_rear_sensor_sel = <0x1>; vinc5_front_sensor_sel = <0x1>; vinc5_sensor_list = <0x0>; device_id = <0x5>; iommus = <0x28 0x5 0x1>; status = "disabled"; linux,phandle = <0x168>; phandle = <0x168>; }; }; vdevice@0 { compatible = "allwinner,sun50i-vdevice"; device_type = "Vdevice"; pinctrl-names = "default"; interrupt-parent = <0x53>; interrupts = <0x0 0x3 0x4>; pinctrl-0 = <0xb4>; test-gpios = <0x53 0x0 0x0 0x1 0x2 0x2 0x1>; status = "okay"; linux,phandle = <0x169>; phandle = <0x169>; }; emce@01905000 { compatible = "allwinner,sunxi-emce"; device_name = "emce"; reg = <0x0 0x1905000 0x0 0x100>; clock-frequency = <0x11e1a300>; linux,phandle = <0x16a>; phandle = <0x16a>; }; ce@1904000 { compatible = "allwinner,sunxi-ce"; device_name = "ce"; reg = <0x0 0x1904000 0x0 0xa0 0x0 0x1904800 0x0 0xa0>; interrupts = <0x0 0x5b 0x1 0x0 0x5c 0x1>; clock-frequency = <0x11e1a300>; clocks = <0xb5 0xc>; linux,phandle = <0x16b>; phandle = <0x16b>; }; deinterlace@0x01420000 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sunxi-deinterlace"; reg = <0x0 0x1420000 0x0 0x40000>; interrupts = <0x0 0x59 0x4>; clocks = <0xe 0xc>; iommus = <0x28 0x1 0x1>; status = "okay"; linux,phandle = <0x16c>; phandle = <0x16c>; }; smartcard@0x05005000 { #address-cells = <0x1>; #size-cells = <0x0>; compatible = "allwinner,sunxi-scr"; device_type = "scr0"; reg = <0x0 0x5005000 0x0 0x400>; interrupts = <0x0 0x8 0x4>; clocks = <0xb6 0xb7>; clock-frequency = <0x16e3600>; pinctrl-names = "default", "sleep"; pinctrl-0 = <0xb8 0xb9>; pinctrl-1 = <0xba>; status = "disabled"; linux,phandle = <0x16d>; phandle = <0x16d>; }; nand0@04011000 { compatible = "allwinner,sun50iw9-nand"; device_type = "nand0"; reg = <0x0 0x4011000 0x0 0x1000>; interrupts = <0x0 0x22 0x4>; clocks = <0xc 0xbb 0xbc>; pinctrl-names = "default", "sleep"; pinctrl-1 = <0xbf>; nand0_regulator1 = "vcc-nand"; nand0_regulator2 = "none"; nand0_cache_level = <0x55aaaa55>; nand0_flush_cache_num = <0x55aaaa55>; nand0_capacity_level = <0x55aaaa55>; nand0_id_number_ctl = <0x55aaaa55>; nand0_print_level = <0x55aaaa55>; nand0_p0 = <0x55aaaa55>; nand0_p1 = <0x55aaaa55>; nand0_p2 = <0x55aaaa55>; nand0_p3 = <0x55aaaa55>; chip_code = "sun50iw9"; status = "disabled"; linux,phandle = <0x16e>; phandle = <0x16e>; nand0_support_2ch = <0x0>; pinctrl-0 = <0x18b 0x18c>; }; ts0@05060000 { compatible = "allwinner,sun50i-tsc"; device_type = "ts0"; reg = <0x0 0x5060000 0x0 0x1000>; interrupts = <0x0 0x11 0x4>; clocks = <0x2 0xc0>; clock-frequency = <0x7270e00>; pinctrl-names = "ts0-default", "ts0-sleep"; pinctrl-0 = <0xc1>; pinctrl-1 = <0xc2>; ts0config = <0x1>; status = "okay"; linux,phandle = <0x16f>; phandle = <0x16f>; }; thermal_sensor { compatible = "arm,sun50iw9p1"; reg = <0x0 0x5070400 0x0 0x400>; clocks = <0xc3>; clock-names = "bus"; nvmem-cells = <0xc4>; nvmem-cell-names = "calibration"; nvmem-names = "sid"; nvmem = <0xc5>; #thermal-sensor-cells = <0x1>; linux,phandle = <0xc6>; phandle = <0xc6>; }; thermal-zones { cpu_thermal_zone { polling-delay-passive = <0x1f4>; polling-delay = <0x3e8>; thermal-sensors = <0xc6 0x2>; sustainable-power = <0x3e8>; k_po = <0x14>; k_pu = <0x28>; k_i = <0x0>; trips { linux,phandle = <0x170>; phandle = <0x170>; trip-point@0 { temperature = <0xea60>; type = "passive"; hysteresis = <0x0>; linux,phandle = <0x171>; phandle = <0x171>; }; trip-point@1 { temperature = <0x11170>; type = "passive"; hysteresis = <0x0>; linux,phandle = <0xc7>; phandle = <0xc7>; }; cpu_crit@0 { temperature = <0x1c138>; type = "critical"; hysteresis = <0x0>; linux,phandle = <0x172>; phandle = <0x172>; }; }; cooling-maps { map0 { trip = <0xc7>; cooling-device = <0xc8 0xffffffff 0xffffffff>; contribution = <0x400>; }; map1 { trip = <0xc7>; cooling-device = <0xc9 0xffffffff 0xffffffff>; contribution = <0x400>; }; }; }; gpu_thermal_zone { polling-delay-passive = <0x1f4>; polling-delay = <0x3e8>; thermal-sensors = <0xc6 0x0>; sustainable-power = <0x44c>; }; ve_thermal_zone { polling-delay-passive = <0x0>; polling-delay = <0x0>; thermal-sensors = <0xc6 0x1>; }; ddr_thermal_zone { polling-delay-passive = <0x0>; polling-delay = <0x0>; thermal-sensors = <0xc6 0x3>; }; }; gpadc { compatible = "allwinner,sunxi-gpadc"; reg = <0x0 0x5070000 0x0 0x400>; interrupts = <0x0 0x12 0x0>; clocks = <0xca>; status = "okay"; channel_num = <0x1>; channel_select = <0x1>; channel_data_select = <0x0>; channel_compare_select = <0x1>; channel_cld_select = <0x1>; channel_chd_select = <0x0>; channel0_compare_lowdata = <0x19f0a0>; channel0_compare_higdata = <0x124f80>; key_cnt = <0x5>; key0_vol = <0x73>; key0_val = <0x73>; key1_vol = <0xf0>; key1_val = <0x72>; key2_vol = <0x168>; key2_val = <0x8b>; key3_vol = <0x1e0>; key3_val = <0x1c>; key4_vol = <0x258>; key4_val = <0x66>; linux,phandle = <0x173>; phandle = <0x173>; }; keyboard { compatible = "allwinner,keyboard_1350mv"; reg = <0x0 0x5070800 0x0 0x400>; clocks = <0xcb>; interrupts = <0x0 0x14 0x0>; status = "okay"; key_cnt = <0x5>; key0 = <0xd2 0x73>; key1 = <0x19a 0x72>; key2 = <0x24e 0x8b>; key3 = <0x2ee 0x1c>; key4 = <0x370 0xac>; linux,phandle = <0x174>; phandle = <0x174>; }; eth@05020000 { compatible = "allwinner,sunxi-gmac"; reg = <0x0 0x5020000 0x0 0x10000 0x0 0x3000030 0x0 0x4>; interrupts = <0x0 0xe 0x4>; interrupt-names = "gmacirq"; clocks = <0xcc 0xcd>; clock-names = "gmac", "ephy"; device_type = "gmac0"; pinctrl-0 = <0xce>; pinctrl-1 = <0xcf>; pinctrl-names = "default", "sleep"; phy-mode; tx-delay = <0x7>; rx-delay = <0x1f>; phy-rst; gmac-power0; gmac-power1; gmac-power2; status = "disable"; linux,phandle = <0x175>; phandle = <0x175>; }; eth@05030000 { compatible = "allwinner,sunxi-gmac"; reg = <0x0 0x5030000 0x0 0x10000 0x0 0x3000034 0x0 0x4>; interrupts = <0x0 0xf 0x4>; interrupt-names = "gmacirq"; clocks = <0xd0>; clock-names = "gmac"; device_type = "gmac1"; pinctrl-0 = <0xd1>; pinctrl-1 = <0xd2>; pinctrl-names = "default", "sleep"; phy-mode = "rmii"; tx-delay = <0x7>; rx-delay = <0x1f>; phy-rst; gmac-power0; gmac-power1; gmac-power2; status = "okay"; linux,phandle = <0x176>; phandle = <0x176>; }; gpio_encrypt { compatible = "allwinner,gpio_encrypt"; gpio_number_sun = <0x5>; gpio1_value = <0x0>; gpio2_value = <0x0>; gpio3_value = <0x0>; gpio4_value = <0x0>; gpio5_value = <0x0>; gpio1_pin = <0x53 0x8 0x1 0x1 0xffffffff 0xffffffff 0x0>; gpio2_pin = <0x53 0x8 0x2 0x1 0xffffffff 0xffffffff 0x0>; gpio3_pin = <0x53 0x8 0x3 0x1 0xffffffff 0xffffffff 0x0>; gpio4_pin = <0x53 0x8 0x4 0x1 0xffffffff 0xffffffff 0x0>; gpio5_pin = <0x53 0x8 0x5 0x1 0xffffffff 0xffffffff 0x0>; status = "disable"; linux,phandle = <0x177>; phandle = <0x177>; }; fd650 { compatible = "oranth,fd650"; status = "okay"; fd650_gpio_clk = <0x53 0x8 0xb 0x1 0xffffffff 0xffffffff 0x0>; fd650_gpio_dat = <0x53 0x8 0xc 0x1 0xffffffff 0xffffffff 0x0>; }; wlan { compatible = "allwinner,sunxi-wlan"; clocks = <0x1b>; pinctrl-0 = <0xd3>; pinctrl-names = "default"; wlan_busnum = <0x1>; wlan_power; wlan_io_regulator; wlan_regon = <0x53 0x6 0x12 0x1 0xffffffff 0xffffffff 0x0>; wlan_hostwake = <0x53 0x6 0xf 0x6 0xffffffff 0xffffffff 0x0>; chip_en; power_en; status = "okay"; linux,phandle = <0x178>; phandle = <0x178>; }; bt { compatible = "allwinner,sunxi-bt"; clocks = <0x1b>; bt_power; bt_io_regulator; bt_rst_n = <0x53 0x6 0x13 0x1 0xffffffff 0xffffffff 0x0>; status = "okay"; linux,phandle = <0x179>; phandle = <0x179>; }; btlpm { compatible = "allwinner,sunxi-btlpm"; uart_index = <0x1>; bt_wake = <0x53 0x6 0x11 0x1 0xffffffff 0xffffffff 0x1>; bt_hostwake = <0x53 0x6 0x10 0x6 0xffffffff 0xffffffff 0x0>; status = "okay"; linux,phandle = <0x17a>; phandle = <0x17a>; }; addr_mgt { compatible = "allwinner,sunxi-addr_mgt"; type_addr_wifi = <0x0>; type_addr_bt = <0x0>; type_addr_eth = <0x0>; status = "okay"; linux,phandle = <0x17b>; phandle = <0x17b>; }; sprd-marlin3 { compatible = "sprd,marlin3"; reset-gpios = <0x53 0x6 0x13 0x1 0xffffffff 0xffffffff 0x0>; enable-gpios = <0x53 0x6 0x12 0x1 0xffffffff 0xffffffff 0x0>; m2-to-ap-irq-gpios = <0x53 0x6 0x10 0x6 0xffffffff 0xffffffff 0x0>; sdhci-name = <0xd4>; sprd,btwf-file-name = "/vendor/etc/firmware/wcnmodem.bin"; sprd,gnss-file-name = "/vendor/etc/firmware/gnssmodem.bin"; adma-tx; adma-rx; data-irq; linux,phandle = <0x17c>; phandle = <0x17c>; }; gpio_para { device_type = "gpio_para"; status = "okay"; compatible = "allwinner,sunxi-init-gpio"; gpio_num = <0x2>; gpio_pin_1 = <0x53 0x7 0x6 0x1 0xffffffff 0xffffffff 0x1>; gpio_pin_2 = <0x53 0x7 0x7 0x1 0xffffffff 0xffffffff 0x0>; normal_led = "gpio_pin_1"; standby_led = "gpio_pin_2"; easy_light_used = <0x1>; normal_led_light = <0x1>; standby_led_light = <0x1>; }; product { device_type = "product"; version = "100"; machine = "evb"; }; platform { device_type = "platform"; eraseflag = <0x1>; debug_mode = <0x3>; }; target { device_type = "target"; boot_clock = <0x3f0>; storage_type = <0xffffffff>; advert_enable = <0x0>; burn_key = <0x1>; dragonboard_test = <0x0>; auto_fel = <0x1>; }; power_sply { device_type = "power_sply"; dcdc2_vol = <0xf4628>; aldo1_vol = <0xf4948>; dldo1_vol = <0xf4f24>; }; axp1530_power_sply { device_type = "axp1530_power_sply"; dcdc2_vol = <0xf4628>; aldo1_vol = <0xf4948>; dldo1_vol = <0xf4f24>; }; axp806_power_sply { device_type = "axp806_power_sply"; dcdce_vol = <0xf4f24>; aldo1_vol = <0xf4f24>; bldo1_vol = <0xf4948>; }; card_boot { device_type = "card_boot"; logical_start = <0xa000>; sprite_gpio0 = <0x53 0x7 0x6 0x1 0xffffffff 0xffffffff 0x1>; }; boot_init_gpio { device_type = "boot_init_gpio"; status = "okay"; gpio0 = <0x53 0x7 0x6 0x1 0xffffffff 0xffffffff 0x1>; gpio1 = <0x53 0x7 0x7 0x1 0xffffffff 0xffffffff 0x0>; }; ir_boot_recovery { device_type = "ir_boot_recovery"; status = "okay"; ir_work_mode = <0x2>; ir_press_times = <0x1>; ir_detect_time = <0x7d0>; ir_key_no_duplicate = <0x0>; ir_recovery_key_code0 = <0x45>; ir_addr_code0 = <0x4040>; ir_recovery_key_code1 = <0x49>; ir_addr_code1 = <0x7f80>; }; key_boot_recovery { device_type = "key_boot_recovery"; recovery_key_used = <0x1>; press_mode_enable = <0x0>; key_work_mode = <0x2>; short_press_mode = <0x0>; long_press_mode = <0x1>; key_press_time = <0x7d0>; recovery_key = <0x53 0x7 0x9 0x0 0xffffffff 0xffffffff 0xffffffff>; }; pm_para { device_type = "pm_para"; standby_mode = <0x1>; }; card0_boot_para { device_type = "card0_boot_para"; card_ctrl = <0x0>; card_high_speed = <0x1>; card_line = <0x4>; pinctrl-0 = <0x184>; }; card2_boot_para { device_type = "card2_boot_para"; card_ctrl = <0x2>; card_high_speed = <0x1>; card_line = <0x8>; pinctrl-0 = <0x185 0x186>; sdc_ex_dly_used = <0x2>; sdc_io_1v8 = <0x1>; sdc_tm4_win_th = <0xa>; }; gpio_bias { device_type = "gpio_bias"; pc_bias = <0x708>; }; twi_para { device_type = "twi_para"; twi_port = <0x0>; pinctrl-0 = <0x187>; }; uart_para { device_type = "uart_para"; uart_debug_port = <0x0>; pinctrl-0 = <0x188>; }; jtag_para { device_type = "jtag_para"; jtag_enable = <0x1>; pinctrl-0 = <0x189>; }; clock { device_type = "clock"; pll4 = <0x12c>; pll6 = <0x258>; pll8 = <0x168>; pll9 = <0x129>; pll10 = <0x108>; }; dram_select_para { device_type = "dram_select_para"; select_mode = <0x0>; select_gpio0 = <0x53 0x8 0xe 0x0 0x1 0xffffffff 0xffffffff>; select_gpio1 = <0x53 0x8 0xf 0x0 0x1 0xffffffff 0xffffffff>; select_gpio2 = <0x53 0x8 0x10 0x0 0x1 0xffffffff 0xffffffff>; select_gpio3; }; dram_para1 { device_type = "dram_para1"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1c12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0000a05>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f0006>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7564>; dram_tpr13 = <0x40>; }; dram_para2 { device_type = "dram_para2"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1c12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0000a05>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f0006>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7564>; dram_tpr13 = <0x40>; }; dram_para3 { device_type = "dram_para3"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1c12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0000a05>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f0006>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7564>; dram_tpr13 = <0x40>; }; dram_para4 { device_type = "dram_para4"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1c12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0000a05>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f0006>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7564>; dram_tpr13 = <0x40>; }; dram_para5 { device_type = "dram_para5"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1c12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0000a05>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f0006>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7564>; dram_tpr13 = <0x40>; }; dram_para6 { device_type = "dram_para6"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1c12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0000a05>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f0006>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7564>; dram_tpr13 = <0x40>; }; dram_para7 { device_type = "dram_para7"; dram_clk = <0x258>; dram_type = <0x3>; dram_dx_odt = <0x3030303>; dram_dx_dri = <0xe0e0e0e>; dram_ca_dri = <0x1f12>; dram_odt_en = <0x1>; dram_para1 = <0x30fb>; dram_para2 = <0x0>; dram_mr0 = <0x840>; dram_mr1 = <0x4>; dram_mr2 = <0x8>; dram_mr3 = <0x0>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; dram_tpr0 = <0xc0001002>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr6 = <0x33808080>; dram_tpr10 = <0x2f1107>; dram_tpr11 = <0xddddcccc>; dram_tpr12 = <0xeddc7665>; dram_tpr13 = <0x40>; }; secure { device_type = "secure"; dram_region_mbytes = <0x50>; drm_region_mbytes = <0x0>; drm_region_start_mbytes = <0x0>; }; }; aliases { serial0 = "/soc@03000000/uart@05000000", "/soc@03000000/uart@05000000"; serial1 = "/soc@03000000/uart@05000400", "/soc@03000000/uart@05000400"; serial2 = "/soc@03000000/uart@05000800", "/soc@03000000/uart@05000800"; serial3 = "/soc@03000000/uart@05000c00", "/soc@03000000/uart@05000c00"; serial4 = "/soc@03000000/uart@05001000", "/soc@03000000/uart@05001000"; serial5 = "/soc@03000000/uart@05001400", "/soc@03000000/uart@05001400"; twi0 = "/soc@03000000/twi@0x05002000", "/soc@03000000/twi@0x05002000"; twi1 = "/soc@03000000/twi@0x05002400", "/soc@03000000/twi@0x05002400"; twi2 = "/soc@03000000/twi@0x05002800", "/soc@03000000/twi@0x05002800"; twi3 = "/soc@03000000/twi@0x05002c00", "/soc@03000000/twi@0x05002c00"; twi4 = "/soc@03000000/twi@0x05003000", "/soc@03000000/twi@0x05003000"; twi5 = "/soc@03000000/twi@0x07081400", "/soc@03000000/twi@0x07081400"; spi0 = "/soc@03000000/spi@05010000", "/soc@03000000/spi@05010000"; spi1 = "/soc@03000000/spi@05011000", "/soc@03000000/spi@05011000"; ir0 = "/soc@03000000/s_cir@07040000", "/soc@03000000/s_cir@07040000"; pcie = "/soc@03000000/pcie@0x05400000", "/soc@03000000/pcie@0x05400000"; scr0 = "/soc@03000000/smartcard@0x05005000", "/soc@03000000/smartcard@0x05005000"; gmac0 = "/soc@03000000/eth@05020000", "/soc@03000000/eth@05020000"; gmac1 = "/soc@03000000/eth@05030000", "/soc@03000000/eth@05030000"; global_timer0 = "/soc@03000000/timer@03009000", "/soc@03000000/timer@03009000"; mmc0 = "/soc@03000000/sdmmc@04020000", "/soc@03000000/sdmmc@04020000"; mmc2 = "/soc@03000000/sdmmc@04022000", "/soc@03000000/sdmmc@04022000"; nand0 = "/soc@03000000/nand0@04011000", "/soc@03000000/nand0@04011000"; disp = "/soc@03000000/disp@01000000", "/soc@03000000/disp@01000000"; lcd0 = "/soc@03000000/lcd0@01c0c000", "/soc@03000000/lcd0@01c0c000"; lcd1 = "/soc@03000000/lcd1@01c0c001", "/soc@03000000/lcd1@01c0c001"; hdmi = "/soc@03000000/hdmi@06000000", "/soc@03000000/hdmi@06000000"; pwm = "/soc@03000000/pwm@0300a000", "/soc@03000000/pwm@0300a000"; tv0 = "/soc@03000000/tv0@01c94000", "/soc@03000000/tv0@01c94000"; ac200 = "/soc@03000000/ac200", "/soc@03000000/ac200"; boot_disp = "/soc@03000000/boot_disp", "/soc@03000000/boot_disp"; pmu0 = "/soc@03000000/twi@0x07081400/pmu", "/soc@03000000/twi@0x07081400/pmu"; standby_param = "/soc@03000000/twi@0x07081400/pmu/standby_param", "/soc@03000000/twi@0x07081400/pmu/standby_param"; linux,phandle = <0x17d>; phandle = <0x17d>; }; chosen { bootargs = "earlyprintk=sunxi-uart,0x05000000 loglevel=8 initcall_debug=1 console=ttyS0 init=/init"; linux,initrd-start = <0x0 0x0>; linux,initrd-end = <0x0 0x0>; }; firmware { android { compatible = "android,firmware"; boot_devices = "soc/sdc0,soc/sdc2,soc"; vbmeta { compatible = "android,vbmeta"; parts = "vbmeta,vbmeta_system,vbmeta_vendor,boot,super,recovery"; }; }; optee { compatible = "linaro,optee-tz"; method = "smc"; }; }; cpus { #address-cells = <0x2>; #size-cells = <0x0>; cpu@0 { device_type = "cpu"; compatible = "arm,cortex-a53", "arm,armv8"; reg = <0x0 0x0>; enable-method = "psci"; clocks = <0xd5>; operating-points-v2 = <0xd6>; cpu-idle-states = <0xd7>; dynamic-power-coefficient = <0x64>; #cooling-cells = <0x2>; cpu-supply = <0xd8>; linux,phandle = <0xc8>; phandle = <0xc8>; }; cpu@1 { device_type = "cpu"; compatible = "arm,cortex-a53", "arm,armv8"; reg = <0x0 0x1>; enable-method = "psci"; clocks = <0xd5>; operating-points-v2 = <0xd6>; cpu-idle-states = <0xd7>; #cooling-cells = <0x2>; }; cpu@2 { device_type = "cpu"; compatible = "arm,cortex-a53", "arm,armv8"; reg = <0x0 0x2>; enable-method = "psci"; clocks = <0xd5>; operating-points-v2 = <0xd6>; cpu-idle-states = <0xd7>; #cooling-cells = <0x2>; }; cpu@3 { device_type = "cpu"; compatible = "arm,cortex-a53", "arm,armv8"; reg = <0x0 0x3>; enable-method = "psci"; clocks = <0xd5>; operating-points-v2 = <0xd6>; cpu-idle-states = <0xd7>; #cooling-cells = <0x2>; }; idle-states { entry-method = "arm,psci"; cpu-sleep-0 { compatible = "arm,idle-state"; arm,psci-suspend-param = <0x10000>; entry-latency-us = <0x2e>; exit-latency-us = <0x3b>; min-residency-us = <0xdf2>; local-timer-stop; linux,phandle = <0xd7>; phandle = <0xd7>; }; }; }; opp_l_table { compatible = "allwinner,sun50i-operating-points"; nvmem-cells = <0xd9>; nvmem-cell-names = "speed"; opp-shared; linux,phandle = <0xd6>; phandle = <0xd6>; opp@480000000-0 { opp-hz = <0x0 0x1c9c3800>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x33>; }; opp@480000000-1 { opp-hz = <0x0 0x1c9c3800>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0xc>; }; opp@600000000-0 { opp-hz = <0x0 0x23c34600>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x23>; }; opp@600000000-1 { opp-hz = <0x0 0x23c34600>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0xc>; }; opp@720000000 { opp-hz = <0x0 0x2aea5400>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x30>; }; opp@792000000-0 { opp-hz = <0x0 0x2f34f600>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x3>; }; opp@792000000-1 { opp-hz = <0x0 0x2f34f600>; opp-microvolt = <0xe57e0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0xc>; }; opp@936000000 { opp-hz = <0x0 0x37ca3a00>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x30>; }; opp@1008000000-0 { opp-hz = <0x0 0x3c14dc00>; opp-microvolt = <0xe09c0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x1>; }; opp@1008000000-1 { opp-hz = <0x0 0x3c14dc00>; opp-microvolt = <0xdbba0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x2>; }; opp@1008000000-2 { opp-hz = <0x0 0x3c14dc00>; opp-microvolt = <0xf9060>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0xc>; }; opp@1008000000-3 { opp-hz = <0x0 0x3c14dc00>; opp-microvolt = <0xe7ef0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x30>; }; opp@1104000000 { opp-hz = <0x0 0x41cdb400>; opp-microvolt = <0xf4240>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x30>; }; opp@1200000000-0 { opp-hz = <0x0 0x47868c00>; opp-microvolt = <0xef420>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x1>; }; opp@1200000000-1 { opp-hz = <0x0 0x47868c00>; opp-microvolt = <0xea600>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x2>; }; opp@1200000000-2 { opp-hz = <0x0 0x47868c00>; opp-microvolt = <0x10c8e0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0xc>; }; opp@1200000000-3 { opp-hz = <0x0 0x47868c00>; opp-microvolt = <0x100590>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x30>; }; opp@1296000000-0 { opp-hz = <0x0 0x4d3f6400>; opp-microvolt = <0x10c8e0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x2>; }; opp@1296000000-1 { opp-hz = <0x0 0x4d3f6400>; opp-microvolt = <0x111700>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x8>; }; opp@1320000000 { opp-hz = <0x0 0x4ead9a00>; opp-microvolt = <0x10c8e0>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x30>; }; opp@1344000000 { opp-hz = <0x0 0x501bd000>; opp-microvolt = <0x111700>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x4>; }; opp@1416000000-0 { opp-hz = <0x0 0x54667200>; opp-microvolt = <0x118c30>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x10>; }; opp@1416000000-1 { opp-hz = <0x0 0x54667200>; opp-microvolt = <0x11b340>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x20>; }; opp@1416000000 { opp-hz = <0x0 0x54667200>; opp-microvolt = <0x118c30>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x10>; }; opp@1512000000 { opp-hz = <0x0 0x5a1f4a00>; opp-microvolt = <0x111700>; clock-latency-ns = <0x3b9b0>; opp-supported-hw = <0x1>; }; opp@480000000-ab { opp-hz = <0x0 0x1c9c3800>; opp-microvolt-a1 = <0xdbba0>; opp-microvolt-b1 = <0xdbba0>; opp-microvolt-b0 = <0xdbba0>; opp-microvolt-c0 = <0xdbba0>; opp-microvolt-c1 = <0xdbba0>; opp-microvolt-c2 = <0xdbba0>; clock-latency-ns = <0x3b9b0>; }; opp@600000000-ab { opp-hz = <0x0 0x23c34600>; opp-microvolt-b0 = <0xdbba0>; opp-microvolt-c0 = <0xdbba0>; opp-microvolt-c2 = <0xdbba0>; clock-latency-ns = <0x3b9b0>; }; opp@720000000-ab { opp-hz = <0x0 0x2aea5400>; opp-microvolt-a1 = <0xdbba0>; opp-microvolt-b1 = <0xdbba0>; opp-microvolt-c1 = <0xe7ef0>; clock-latency-ns = <0x3b9b0>; }; opp@792000000-ab { opp-hz = <0x0 0x2f34f600>; opp-microvolt-b0 = <0xdbba0>; opp-microvolt-c0 = <0xe57e0>; opp-microvolt-c2 = <0xe57e0>; clock-latency-ns = <0x3b9b0>; }; opp@936000000-ab { opp-hz = <0x0 0x37ca3a00>; opp-microvolt-c1 = <0xe7ef0>; clock-latency-ns = <0x3b9b0>; }; opp@1008000000-ab { opp-hz = <0x0 0x3c14dc00>; opp-microvolt-b0 = <0xe09c0>; opp-microvolt-c0 = <0xf9060>; opp-microvolt-c1 = <0xf4240>; opp-microvolt-c2 = <0xf9060>; clock-latency-ns = <0x3b9b0>; }; opp@1032000000-ab { opp-hz = <0x0 0x3d831200>; opp-microvolt-a1 = <0xdbba0>; opp-microvolt-b1 = <0xdbba0>; clock-latency-ns = <0x3b9b0>; }; opp@1104000000-ab { opp-hz = <0x0 0x41cdb400>; opp-microvolt-a1 = <0xe7ef0>; opp-microvolt-b1 = <0xe7ef0>; opp-microvolt-c1 = <0x100590>; clock-latency-ns = <0x3b9b0>; }; opp@1200000000-ab { opp-hz = <0x0 0x47868c00>; opp-microvolt-a1 = <0xf4240>; opp-microvolt-b1 = <0xf4240>; opp-microvolt-b0 = <0xef420>; opp-microvolt-c0 = <0x10c8e0>; opp-microvolt-c1 = <0x10c8e0>; opp-microvolt-c2 = <0x10c8e0>; clock-latency-ns = <0x3b9b0>; }; opp@1296000000-ab { opp-hz = <0x0 0x4d3f6400>; opp-microvolt-a1 = <0x100590>; opp-microvolt-b1 = <0x100590>; clock-latency-ns = <0x3b9b0>; }; opp@1320000000-ab { opp-hz = <0x0 0x4ead9a00>; opp-microvolt-c1 = <0x11b340>; clock-latency-ns = <0x3b9b0>; }; opp@1344000000-ab { opp-hz = <0x0 0x501bd000>; opp-microvolt-c0 = <0x111700>; opp-microvolt-c2 = <0x111700>; clock-latency-ns = <0x3b9b0>; }; opp@1416000000-ab { opp-hz = <0x0 0x54667200>; opp-microvolt-a1 = <0x10c8e0>; opp-microvolt-b1 = <0x10c8e0>; clock-latency-ns = <0x3b9b0>; }; opp@1512000000-ab { opp-hz = <0x0 0x5a1f4a00>; opp-microvolt-a1 = <0x11b340>; opp-microvolt-b1 = <0x11b340>; opp-microvolt-b0 = <0x111700>; clock-latency-ns = <0x3b9b0>; }; }; psci { compatible = "arm,psci-1.0"; method = "smc"; }; n_brom { compatible = "allwinner,n-brom"; reg = <0x0 0x0 0x0 0xa000>; }; s_brom { compatible = "allwinner,s-brom"; reg = <0x0 0x0 0x0 0x10000>; }; sram_ctrl { device_type = "sram_ctrl"; compatible = "allwinner,sram_ctrl"; reg = <0x0 0x3000000 0x0 0x100>; }; sram_a1 { compatible = "allwinner,sram_a1"; reg = <0x0 0x20000 0x0 0x8000>; }; sram_a2 { compatible = "allwinner,sram_a2"; reg = <0x0 0x100000 0x0 0x14000>; }; prcm { compatible = "allwinner,prcm"; reg = <0x0 0x1f01400 0x0 0x400>; }; s_cpuscfg { compatible = "allwinner,s_cpuscfg"; reg = <0x0 0x1f01c00 0x0 0x400>; }; ion { compatible = "allwinner,sunxi-ion"; heap_sys_user@0 { compatible = "allwinner,sys_user"; heap-name = "sys_user"; heap-id = <0x0>; heap-base = <0x0>; heap-size = <0x0>; heap-type = "ion_system"; }; heap_cma@0 { compatible = "allwinner,cma"; heap-name = "cma"; heap-id = <0x4>; heap-base = <0x0>; heap-size = <0x0>; heap-type = "ion_cma"; }; heap_secure@0 { compatible = "allwinner,secure"; heap-name = "secure"; heap-id = <0x6>; heap-base = <0x0>; heap-size = <0x0>; heap-type = "ion_secure"; }; }; dram { compatible = "allwinner,dram"; clocks = <0xda>; clock-names = "pll_ddr"; dram_clk = <0x2d0>; dram_type = <0x7>; dram_zq = <0x3f3fdd>; dram_odt_en = <0x9988eeee>; dram_para1 = <0x30fa>; dram_para2 = <0x1000>; dram_mr0 = <0x0>; dram_mr1 = <0xc3>; dram_mr2 = <0x6>; dram_mr3 = <0x1>; dram_tpr0 = <0x0>; dram_tpr1 = <0x0>; dram_tpr2 = <0x0>; dram_tpr3 = <0x0>; dram_tpr4 = <0x0>; dram_tpr5 = <0x0>; dram_tpr6 = <0x2fb08080>; dram_tpr7 = <0x0>; dram_tpr8 = <0x0>; dram_tpr9 = <0x0>; dram_tpr10 = <0x402f4469>; dram_tpr11 = <0xe0f0d0d>; dram_tpr12 = <0x11131213>; dram_tpr13 = <0x60>; linux,phandle = <0x17e>; phandle = <0x17e>; device_type = "dram"; dram_dx_odt = <0x6060606>; dram_dx_dri = <0xd0d0d0d>; dram_ca_dri = <0x1919>; dram_mr4 = <0x0>; dram_mr5 = <0x0>; dram_mr6 = <0x0>; dram_mr11 = <0x0>; dram_mr12 = <0x0>; dram_mr13 = <0x0>; dram_mr14 = <0x0>; dram_mr16 = <0x0>; dram_mr17 = <0x0>; dram_mr22 = <0x0>; }; memory@40000000 { device_type = "memory"; reg = <0x0 0x40000000 0x0 0x20000000>; }; interrupt-controller@03020000 { compatible = "arm,cortex-a15-gic", "arm,cortex-a9-gic"; #interrupt-cells = <0x3>; #address-cells = <0x0>; device_type = "gic"; interrupt-controller; reg = <0x0 0x3021000 0x0 0x1000 0x0 0x3022000 0x0 0x2000 0x0 0x3024000 0x0 0x2000 0x0 0x3026000 0x0 0x2000>; interrupts = <0x1 0x9 0xf04>; interrupt-parent = <0x85>; linux,phandle = <0x85>; phandle = <0x85>; }; interrupt-controller@0 { compatible = "allwinner,sunxi-wakeupgen"; interrupt-controller; #interrupt-cells = <0x3>; interrupt-parent = <0x85>; linux,phandle = <0x1>; phandle = <0x1>; }; intc-nmi@07010320 { compatible = "allwinner,sun8i-nmi"; interrupt-parent = <0x85>; #interrupt-cells = <0x2>; #address-cells = <0x0>; interrupt-controller; reg = <0x0 0x7010320 0x0 0xc>; pad-control-v1 = <0x7000208>; interrupts = <0x0 0x67 0x4>; linux,phandle = <0x17f>; phandle = <0x17f>; }; sunxi-sid@03006000 { compatible = "allwinner,sunxi-sid"; device_type = "sid"; reg = <0x0 0x3006000 0x0 0x1000>; linux,phandle = <0x180>; phandle = <0x180>; }; sunxi-sid-ng@03006000 { compatible = "allwinner,sun50iw9p1-sid"; reg = <0x0 0x3006000 0x0 0x1000>; #address-cells = <0x1>; #size-cells = <0x1>; linux,phandle = <0xc5>; phandle = <0xc5>; speed@00 { reg = <0x0 0x2>; linux,phandle = <0xd9>; phandle = <0xd9>; }; calib@14 { reg = <0x14 0x8>; linux,phandle = <0xc4>; phandle = <0xc4>; }; }; sunxi-chipid@03006200 { compatible = "allwinner,sunxi-chipid"; device_type = "chipid"; reg = <0x0 0x3006200 0x0 0x200>; linux,phandle = <0x181>; phandle = <0x181>; }; timer_arch { compatible = "arm,armv8-timer"; interrupts = <0x1 0xd 0xf08 0x1 0xe 0xf08 0x1 0xb 0xf08 0x1 0xa 0xf08>; clock-frequency = <0x16e3600>; interrupt-parent = <0x85>; arm,no-tick-in-suspend; }; pmu { compatible = "arm,armv8-pmuv3"; interrupts = <0x0 0x8c 0x4 0x0 0x8d 0x4 0x0 0x8e 0x4 0x0 0x8f 0x4>; }; dramfreq { compatible = "allwinner,sunxi-dramfreq"; reg = <0x0 0x4002000 0x0 0x1000 0x0 0x4003000 0x0 0x3000 0x0 0x3001000 0x0 0x1000>; interrupts = <0x0 0x21 0x4>; clocks = <0xda>; status = "okay"; }; uboot { linux,phandle = <0x182>; phandle = <0x182>; }; iommu@030f0000 { compatible = "allwinner,sunxi-iommu"; reg = <0x0 0x30f0000 0x0 0x1000>; interrupts = <0x0 0x3d 0x4>; interrupt-names = "iommu-irq"; clocks = <0xdb>; clock-names = "iommu"; #iommu-cells = <0x2>; status = "okay"; linux,phandle = <0x28>; phandle = <0x28>; }; gpu@0x01800000 { device_type = "gpu"; compatible = "arm,mali-midgard"; reg = <0x0 0x1800000 0x0 0x10000>; interrupts = <0x0 0x5f 0x4 0x0 0x60 0x4 0x0 0x61 0x4>; interrupt-names = "JOB", "MMU", "GPU"; clocks = <0xdc 0xdd 0xde>; clock-names = "clk_parent", "clk_mali", "clk_bak"; #cooling-cells = <0x2>; gpu_idle = <0x1>; dvfs_status = <0x0>; operating-points = <0x927c0 0xe7ef0 0x8ca00 0xe7ef0 0x83d60 0xe7ef0 0x7b0c0 0xe7ef0>; linux,phandle = <0xc9>; phandle = <0xc9>; ipa_dvfs { compatible = "arm,mali-simple-power-model"; static-coefficient = <0x4268>; dynamic-coefficient = <0x2ee>; ts = <0x3e2da 0x2568 0xffffff98 0x4>; thermal-zone = "gpu_thermal_zone"; ss-coefficient = <0x24>; ff-coefficient = <0x123>; linux,phandle = <0x183>; phandle = <0x183>; }; }; box_start_os0 { compatible = "allwinner,box_start_os"; start_type = <0x1>; irkey_used = <0x0>; pmukey_used = <0x0>; pmukey_num = <0x0>; led_power = <0x0>; led_state = <0x0>; pinctrl-0 = <0xdf>; pinctrl-1 = <0xe0>; }; __symbols__ { clk_losc = "/clocks/losc"; clk_iosc = "/clocks/iosc"; clk_hosc = "/clocks/hosc"; clk_osc48m = "/clocks/osc48m"; clk_hoscdiv32k = "/clocks/hoscdiv32k"; clk_pll_periph0div25m = "/clocks/pll_periph0div25m"; clk_pll_cpu = "/clocks/pll_cpu"; clk_pll_ddr0 = "/clocks/pll_ddr0"; clk_pll_ddr1 = "/clocks/pll_ddr1"; clk_pll_periph0 = "/clocks/pll_periph0"; clk_pll_periph1 = "/clocks/pll_periph1"; clk_pll_gpu = "/clocks/pll_gpu"; clk_pll_video0x4 = "/clocks/pll_video0x4"; clk_pll_video1 = "/clocks/pll_video1"; clk_pll_video2 = "/clocks/pll_video2"; clk_pll_ve = "/clocks/pll_ve"; clk_pll_de = "/clocks/pll_de"; clk_pll_csi = "/clocks/pll_csi"; clk_pll_audiox4 = "/clocks/pll_audiox4"; clk_pll_periph0x2 = "/clocks/pll_periph0x2"; clk_pll_periph0x4 = "/clocks/pll_periph0x4"; clk_periph32k = "/clocks/periph32k"; clk_pll_periph1x2 = "/clocks/pll_periph1x2"; clk_pll_audio = "/clocks/pll_audio"; clk_pll_audiox2 = "/clocks/pll_audiox2"; clk_pll_video0 = "/clocks/pll_video0"; clk_pll_video1x4 = "/clocks/pll_video1x4"; clk_pll_video2x4 = "/clocks/pll_video2x4"; clk_hoscd2 = "/clocks/hoscd2"; clk_osc48md4 = "/clocks/osc48md4"; clk_pll_periph0d6 = "/clocks/pll_periph0d6"; clk_cpu = "/clocks/cpu"; clk_axi = "/clocks/axi"; clk_cpuapb = "/clocks/cpuapb"; clk_psi = "/clocks/psi"; clk_ahb1 = "/clocks/ahb1"; clk_ahb2 = "/clocks/ahb2"; clk_ahb3 = "/clocks/ahb3"; clk_apb1 = "/clocks/apb1"; clk_apb2 = "/clocks/apb2"; clk_mbus = "/clocks/mbus"; clk_de = "/clocks/de"; clk_g2d = "/clocks/g2d"; clk_di = "/clocks/di"; clk_gpu0 = "/clocks/gpu0"; clk_gpu1 = "/clocks/gpu1"; clk_ce = "/clocks/ce"; clk_ve = "/clocks/ve"; clk_dma = "/clocks/dma"; clk_msgbox = "/clocks/msgbox"; clk_hwspinlock_rst = "/clocks/hwspinlock_rst"; clk_hwspinlock_bus = "/clocks/hwspinlock_bus"; clk_hstimer = "/clocks/hstimer"; clk_avs = "/clocks/avs"; clk_dbgsys = "/clocks/dbgsys"; clk_pwm = "/clocks/pwm"; clk_iommu = "/clocks/iommu"; clk_sdram = "/clocks/sdram"; clk_nand0 = "/clocks/nand0"; clk_nand1 = "/clocks/nand1"; clk_sdmmc0_mod = "/clocks/sdmmc0_mod"; clk_sdmmc0_bus = "/clocks/sdmmc0_bus"; clk_sdmmc0_rst = "/clocks/sdmmc0_rst"; clk_sdmmc1_mod = "/clocks/sdmmc1_mod"; clk_sdmmc1_bus = "/clocks/sdmmc1_bus"; clk_sdmmc1_rst = "/clocks/sdmmc1_rst"; clk_sdmmc2_mod = "/clocks/sdmmc2_mod"; clk_sdmmc2_bus = "/clocks/sdmmc2_bus"; clk_sdmmc2_rst = "/clocks/sdmmc2_rst"; clk_uart0 = "/clocks/uart0"; clk_uart1 = "/clocks/uart1"; clk_uart2 = "/clocks/uart2"; clk_uart3 = "/clocks/uart3"; clk_uart4 = "/clocks/uart4"; clk_uart5 = "/clocks/uart5"; clk_twi0 = "/clocks/twi0"; clk_twi1 = "/clocks/twi1"; clk_twi2 = "/clocks/twi2"; clk_twi3 = "/clocks/twi3"; clk_twi4 = "/clocks/twi4"; clk_scr0 = "/clocks/scr0"; clk_spi0 = "/clocks/spi0"; clk_spi1 = "/clocks/spi1"; clk_ephy_25m = "/clocks/ephy_25m"; clk_gmac0 = "/clocks/gmac0"; clk_gmac1 = "/clocks/gmac1"; clk_gpadc = "/clocks/gpadc"; clk_ts = "/clocks/ts"; clk_ths = "/clocks/ths"; clk_spdif = "/clocks/spdif"; clk_dmic = "/clocks/dmic"; clk_codec_1x = "/clocks/codec_1x"; clk_codec_4x = "/clocks/codec_4x"; clk_ahub = "/clocks/ahub"; clk_usbphy0 = "/clocks/usbphy0"; clk_usbphy1 = "/clocks/usbphy1"; clk_usbphy2 = "/clocks/usbphy2"; clk_usbphy3 = "/clocks/usbphy3"; clk_usbohci0 = "/clocks/usbohci0"; clk_usbohci0_12m = "/clocks/usbohci0_12m"; clk_usbohci1 = "/clocks/usbohci1"; clk_usbohci1_12m = "/clocks/usbohci1_12m"; clk_usbohci2 = "/clocks/usbohci2"; clk_usbohci2_12m = "/clocks/usbohci2_12m"; clk_usbohci3 = "/clocks/usbohci3"; clk_usbohci3_12m = "/clocks/usbohci3_12m"; clk_usbehci0 = "/clocks/usbehci0"; clk_usbehci1 = "/clocks/usbehci1"; clk_usbehci2 = "/clocks/usbehci2"; clk_usbehci3 = "/clocks/usbehci3"; clk_usb3_0_host = "/clocks/usb3_0_host"; clk_usbotg = "/clocks/usbotg"; clk_lradc = "/clocks/lradc"; clk_hdmi = "/clocks/hdmi"; clk_hdmi_slow = "/clocks/hdmi_slow"; clk_hdmi_cec = "/clocks/hdmi_cec"; clk_display_top = "/clocks/display_top"; clk_tcon_lcd = "/clocks/tcon_lcd"; clk_tcon_lcd1 = "/clocks/tcon_lcd1"; clk_tcon_tv = "/clocks/tcon_tv"; clk_tcon_tv1 = "/clocks/tcon_tv1"; clk_lvds = "/clocks/lvds"; clk_tve = "/clocks/tve"; clk_tve_top = "/clocks/tve_top"; clk_csi_top = "/clocks/csi_top"; clk_csi_master0 = "/clocks/csi_master0"; clk_csi_master1 = "/clocks/csi_master1"; clk_hdmi_hdcp = "/clocks/hdmi_hdcp"; clk_pio = "/clocks/pio"; clk_cpurcir = "/clocks/cpurcir"; clk_hosc32k = "/clocks/hosc32k"; clk_losc_out = "/clocks/losc_out"; clk_cpurcpus_pll = "/clocks/cpurcpus_pll"; clk_cpurcpus = "/clocks/cpurcpus"; clk_cpurahbs = "/clocks/cpurahbs"; clk_cpurapbs1 = "/clocks/cpurapbs1"; clk_cpurapbs2_pll = "/clocks/cpurapbs2_pll"; clk_cpurapbs2 = "/clocks/cpurapbs2"; clk_cpurpio = "/clocks/cpurpio"; clk_dcxo_out = "/clocks/dcxo_out"; clk_stwi = "/clocks/stwi"; soc = "/soc@03000000"; r_pio = "/soc@03000000/pinctrl@07022000"; s_rsb0_pins_a = "/soc@03000000/pinctrl@07022000/s_rsb0@0"; s_twi0_pins_a = "/soc@03000000/pinctrl@07022000/s_twi0@0"; s_twi0_pins_b = "/soc@03000000/pinctrl@07022000/s_twi0@1"; pio = "/soc@03000000/pinctrl@0300b000"; clk_losc_pins_a = "/soc@03000000/pinctrl@0300b000/clk_losc@0"; s_cir0_pins_a = "/soc@03000000/pinctrl@0300b000/s_cir0@0"; vdevice_pins_a = "/soc@03000000/pinctrl@0300b000/vdevice@0"; uart0_pins_a = "/soc@03000000/pinctrl@0300b000/uart0@0"; uart0_pins_b = "/soc@03000000/pinctrl@0300b000/uart0@1"; uart1_pins_a = "/soc@03000000/pinctrl@0300b000/uart1@0"; uart1_pins_b = "/soc@03000000/pinctrl@0300b000/uart1@1"; uart2_pins_a = "/soc@03000000/pinctrl@0300b000/uart2@0"; uart2_pins_b = "/soc@03000000/pinctrl@0300b000/uart2@1"; uart3_pins_a = "/soc@03000000/pinctrl@0300b000/uart3@0"; uart3_pins_b = "/soc@03000000/pinctrl@0300b000/uart3@1"; uart4_pins_a = "/soc@03000000/pinctrl@0300b000/uart4@0"; uart4_pins_b = "/soc@03000000/pinctrl@0300b000/uart4@1"; uart5_pins_a = "/soc@03000000/pinctrl@0300b000/uart5@0"; uart5_pins_b = "/soc@03000000/pinctrl@0300b000/uart5@1"; twi0_pins_a = "/soc@03000000/pinctrl@0300b000/twi0@0"; twi0_pins_b = "/soc@03000000/pinctrl@0300b000/twi0@1"; twi1_pins_a = "/soc@03000000/pinctrl@0300b000/twi1@0"; twi1_pins_b = "/soc@03000000/pinctrl@0300b000/twi1@1"; twi2_pins_a = "/soc@03000000/pinctrl@0300b000/twi2@0"; twi2_pins_b = "/soc@03000000/pinctrl@0300b000/twi2@1"; twi3_pins_a = "/soc@03000000/pinctrl@0300b000/twi3@0"; twi3_pins_b = "/soc@03000000/pinctrl@0300b000/twi3@1"; twi4_pins_a = "/soc@03000000/pinctrl@0300b000/twi4@0"; twi4_pins_b = "/soc@03000000/pinctrl@0300b000/twi4@1"; ts0_pins_a = "/soc@03000000/pinctrl@0300b000/ts0@0"; ts0_pins_b = "/soc@03000000/pinctrl@0300b000/ts0_sleep@0"; spi0_pins_a = "/soc@03000000/pinctrl@0300b000/spi0@0"; spi0_pins_b = "/soc@03000000/pinctrl@0300b000/spi0@1"; spi0_pins_c = "/soc@03000000/pinctrl@0300b000/spi0@2"; spi1_pins_a = "/soc@03000000/pinctrl@0300b000/spi1@0"; spi1_pins_b = "/soc@03000000/pinctrl@0300b000/spi1@1"; spi1_pins_c = "/soc@03000000/pinctrl@0300b000/spi1@2"; sdc0_pins_a = "/soc@03000000/pinctrl@0300b000/sdc0@0"; sdc0_pins_b = "/soc@03000000/pinctrl@0300b000/sdc0@1"; sdc0_pins_c = "/soc@03000000/pinctrl@0300b000/sdc0@2"; sdc1_pins_a = "/soc@03000000/pinctrl@0300b000/sdc1@0"; sdc1_pins_b = "/soc@03000000/pinctrl@0300b000/sdc1@1"; sdc2_pins_a = "/soc@03000000/pinctrl@0300b000/sdc2@0"; sdc2_pins_b = "/soc@03000000/pinctrl@0300b000/sdc2@1"; sdc2_pins_c = "/soc@03000000/pinctrl@0300b000/sdc2@2"; spdif_pins_a = "/soc@03000000/pinctrl@0300b000/spdif@0"; spdif_pins_b = "/soc@03000000/pinctrl@0300b000/spdif_sleep@0"; dmic_pins_a = "/soc@03000000/pinctrl@0300b000/dmic@0"; dmic_pins_b = "/soc@03000000/pinctrl@0300b000/dmic_sleep@0"; ahub_daudio0_pins_a = "/soc@03000000/pinctrl@0300b000/ahub_daudio0@0"; ahub_daudio0_pins_b = "/soc@03000000/pinctrl@0300b000/ahub_daudio0_sleep@0"; ahub_daudio0_pins_c = "/soc@03000000/pinctrl@0300b000/h_ahub_daudio0@0"; ahub_daudio0_pins_d = "/soc@03000000/pinctrl@0300b000/h_ahub_daudio0_sleep@0"; ahub_daudio2_pins_a = "/soc@03000000/pinctrl@0300b000/ahub_daudio2@0"; ahub_daudio2_pins_b = "/soc@03000000/pinctrl@0300b000/ahub_daudio2_sleep@0"; ahub_daudio3_pins_a = "/soc@03000000/pinctrl@0300b000/ahub_daudio3@0"; ahub_daudio3_pins_b = "/soc@03000000/pinctrl@0300b000/ahub_daudio3_sleep@0"; csi1_pins_a = "/soc@03000000/pinctrl@0300b000/csi1@0"; csi1_pins_b = "/soc@03000000/pinctrl@0300b000/csi1@1"; csi_mclk0_pins_a = "/soc@03000000/pinctrl@0300b000/csi_mclk0@0"; csi_mclk0_pins_b = "/soc@03000000/pinctrl@0300b000/csi_mclk0@1"; csi_cci0_pins_a = "/soc@03000000/pinctrl@0300b000/csi_cci0@0"; csi_cci0_pins_b = "/soc@03000000/pinctrl@0300b000/csi_cci0@1"; csi_mclk1_pins_a = "/soc@03000000/pinctrl@0300b000/csi_mclk1@0"; csi_mclk1_pins_b = "/soc@03000000/pinctrl@0300b000/csi_mclk1@1"; csi_cci1_pins_a = "/soc@03000000/pinctrl@0300b000/csi_cci1@0"; csi_cci1_pins_b = "/soc@03000000/pinctrl@0300b000/csi_cci1@1"; scr0_pins_a = "/soc@03000000/pinctrl@0300b000/scr0@0"; scr0_pins_b = "/soc@03000000/pinctrl@0300b000/scr0@1"; scr0_pins_c = "/soc@03000000/pinctrl@0300b000/scr0@2"; scr1_pins_a = "/soc@03000000/pinctrl@0300b000/scr1@0"; scr1_pins_b = "/soc@03000000/pinctrl@0300b000/scr1@1"; scr1_pins_c = "/soc@03000000/pinctrl@0300b000/scr1@2"; nand0_pins_a = "/soc@03000000/pinctrl@0300b000/nand0@0"; nand0_pins_b = "/soc@03000000/pinctrl@0300b000/nand0@1"; nand0_pins_c = "/soc@03000000/pinctrl@0300b000/nand0@2"; ccir_clk_pin_a = "/soc@03000000/pinctrl@0300b000/ac200@2"; ccir_clk_pin_b = "/soc@03000000/pinctrl@0300b000/ac200@3"; gmac_pins_a = "/soc@03000000/pinctrl@0300b000/gmac@0"; gmac_pins_b = "/soc@03000000/pinctrl@0300b000/gmac@1"; gmac1_pins_a = "/soc@03000000/pinctrl@0300b000/gmac1@0"; gmac1_pins_b = "/soc@03000000/pinctrl@0300b000/gmac1@1"; lvds0_pins_a = "/soc@03000000/pinctrl@0300b000/lvds0@0"; lvds0_pins_b = "/soc@03000000/pinctrl@0300b000/lvds0@1"; lvds1_pins_a = "/soc@03000000/pinctrl@0300b000/lvds1@0"; lvds1_pins_b = "/soc@03000000/pinctrl@0300b000/lvds1@1"; lvds2link_pins_a = "/soc@03000000/pinctrl@0300b000/lvds2link@0"; lvds2link_pins_b = "/soc@03000000/pinctrl@0300b000/lvds2link@1"; rgb24_pins_a = "/soc@03000000/pinctrl@0300b000/rgb24@0"; rgb24_pins_b = "/soc@03000000/pinctrl@0300b000/rgb24@1"; pwm5_pin_a = "/soc@03000000/pinctrl@0300b000/pwm5@0"; pwm5_pin_b = "/soc@03000000/pinctrl@0300b000/pwm5@1"; standby_red = "/soc@03000000/pinctrl@0300b000/standby@0"; standby_blue = "/soc@03000000/pinctrl@0300b000/standby@1"; standby_bt = "/soc@03000000/pinctrl@0300b000/standby@2"; dma0 = "/soc@03000000/dma-controller@03002000"; mbus0 = "/soc@03000000/mbus-controller@047fa000"; msgbox = "/soc@03000000/msgbox@03003000"; hwspinlock = "/soc@03000000/hwspinlock@3004000"; s_cir0 = "/soc@03000000/s_cir@07040000"; soc_timer0 = "/soc@03000000/timer@03009000"; rtc = "/soc@03000000/rtc@07000000"; wdt = "/soc@03000000/watchdog@030090a0"; ve = "/soc@03000000/ve@01c0e000"; vp9 = "/soc@03000000/vp9@01c00000"; uart0 = "/soc@03000000/uart@05000000"; uart1 = "/soc@03000000/uart@05000400"; uart2 = "/soc@03000000/uart@05000800"; uart3 = "/soc@03000000/uart@05000c00"; uart4 = "/soc@03000000/uart@05001000"; uart5 = "/soc@03000000/uart@05001400"; twi0 = "/soc@03000000/twi@0x05002000"; twi1 = "/soc@03000000/twi@0x05002400"; twi2 = "/soc@03000000/twi@0x05002800"; twi3 = "/soc@03000000/twi@0x05002c00"; twi4 = "/soc@03000000/twi@0x05003000"; twi5 = "/soc@03000000/twi@0x07081400"; pmu0 = "/soc@03000000/twi@0x07081400/pmu"; standby_param = "/soc@03000000/twi@0x07081400/pmu/standby_param"; reg_dcdc1 = "/soc@03000000/twi@0x07081400/pmu/regulators/dcdc1"; reg_dcdc2 = "/soc@03000000/twi@0x07081400/pmu/regulators/dcdc2"; reg_dcdc3 = "/soc@03000000/twi@0x07081400/pmu/regulators/dcdc3"; reg_aldo1 = "/soc@03000000/twi@0x07081400/pmu/regulators/ldo1"; reg_dldo1 = "/soc@03000000/twi@0x07081400/pmu/regulators/ldo2"; usbc0 = "/soc@03000000/usbc0@0"; udc = "/soc@03000000/udc-controller@0x05100000"; ehci0 = "/soc@03000000/ehci0-controller@0x05101000"; ohci0 = "/soc@03000000/ohci0-controller@0x05101400"; usbc1 = "/soc@03000000/usbc1@0"; ehci1 = "/soc@03000000/ehci1-controller@0x05200000"; ohci1 = "/soc@03000000/ohci1-controller@0x05200400"; usbc2 = "/soc@03000000/usbc2@0"; ehci2 = "/soc@03000000/ehci2-controller@0x05310000"; ohci2 = "/soc@03000000/ohci2-controller@0x05310400"; usbc3 = "/soc@03000000/usbc3@0"; ehci3 = "/soc@03000000/ehci3-controller@0x05311000"; ohci3 = "/soc@03000000/ohci3-controller@0x05311400"; ac200_codec = "/soc@03000000/ac200_codec"; spdif = "/soc@03000000/spdif-controller@0x05093000"; dmic = "/soc@03000000/dmic-controller@0x05095000"; codec = "/soc@03000000/codec@0x05096000"; cpudai = "/soc@03000000/cpudai-controller@0x05096000"; ahub_cpudai0 = "/soc@03000000/cpudai0-controller@0x05097000"; ahub_cpudai1 = "/soc@03000000/cpudai1-controller@0x05097000"; ahub_cpudai2 = "/soc@03000000/cpudai2-controller@0x05097000"; ahub_cpudai3 = "/soc@03000000/cpudai3-controller@0x05097000"; ahub_codec = "/soc@03000000/ahub_codec@0x05097000"; ahub_daudio0 = "/soc@03000000/ahub_daudio0@0x05097000"; ahub_daudio1 = "/soc@03000000/ahub_daudio1@0x05097000"; ahub_daudio2 = "/soc@03000000/ahub_daudio2@0x05097000"; ahub_daudio3 = "/soc@03000000/ahub_daudio3@0x05097000"; snddaudio0 = "/soc@03000000/sound@0"; sndhdmi = "/soc@03000000/sound@1"; snddaudio2 = "/soc@03000000/sound@2"; snddaudio3 = "/soc@03000000/sound@3"; sndspdif = "/soc@03000000/sound@4"; snddmic = "/soc@03000000/sound@5"; sndcodec = "/soc@03000000/sound@6"; sndahub = "/soc@03000000/sound@7"; spi0 = "/soc@03000000/spi@05010000"; spi1 = "/soc@03000000/spi@05011000"; pcie = "/soc@03000000/pcie@0x05400000"; sdc2 = "/soc@03000000/sdmmc@04022000"; sdc0 = "/soc@03000000/sdmmc@04020000"; sdc1 = "/soc@03000000/sdmmc@04021000"; disp = "/soc@03000000/disp@01000000"; tv0 = "/soc@03000000/tv0@01c94000"; lcd0 = "/soc@03000000/lcd0@01c0c000"; lcd1 = "/soc@03000000/lcd1@01c0c001"; boot_disp = "/soc@03000000/boot_disp"; hdmi = "/soc@03000000/hdmi@06000000"; g2d = "/soc@03000000/g2d@01480000"; soc_tr = "/soc@03000000/tr@01000000"; pwm = "/soc@03000000/pwm@0300a000"; pwm0 = "/soc@03000000/pwm0@0300a000"; pwm1 = "/soc@03000000/pwm1@0300a000"; pwm2 = "/soc@03000000/pwm2@0300a000"; pwm3 = "/soc@03000000/pwm3@0300a000"; pwm4 = "/soc@03000000/pwm4@0300a000"; pwm5 = "/soc@03000000/pwm5@0300a000"; ac200 = "/soc@03000000/ac200"; vind0 = "/soc@03000000/vind@0"; csi_cci0 = "/soc@03000000/vind@0/cci@0"; csi_cci1 = "/soc@03000000/vind@0/cci@1"; csi0 = "/soc@03000000/vind@0/csi@0"; csi1 = "/soc@03000000/vind@0/csi@1"; mipi0 = "/soc@03000000/vind@0/mipi@0"; isp0 = "/soc@03000000/vind@0/isp@0"; isp1 = "/soc@03000000/vind@0/isp@1"; scaler0 = "/soc@03000000/vind@0/scaler@0"; scaler1 = "/soc@03000000/vind@0/scaler@1"; scaler2 = "/soc@03000000/vind@0/scaler@2"; scaler3 = "/soc@03000000/vind@0/scaler@3"; scaler4 = "/soc@03000000/vind@0/scaler@4"; scaler5 = "/soc@03000000/vind@0/scaler@5"; actuator0 = "/soc@03000000/vind@0/actuator@0"; flash0 = "/soc@03000000/vind@0/flash@0"; sensor0 = "/soc@03000000/vind@0/sensor@0"; sensor1 = "/soc@03000000/vind@0/sensor@1"; vinc0 = "/soc@03000000/vind@0/vinc@0"; vinc1 = "/soc@03000000/vind@0/vinc@1"; vinc2 = "/soc@03000000/vind@0/vinc@2"; vinc3 = "/soc@03000000/vind@0/vinc@3"; vinc4 = "/soc@03000000/vind@0/vinc@4"; vinc5 = "/soc@03000000/vind@0/vinc@5"; Vdevice = "/soc@03000000/vdevice@0"; emce = "/soc@03000000/emce@01905000"; cryptoengine = "/soc@03000000/ce@1904000"; di = "/soc@03000000/deinterlace@0x01420000"; scr0 = "/soc@03000000/smartcard@0x05005000"; nand0 = "/soc@03000000/nand0@04011000"; ts0 = "/soc@03000000/ts0@05060000"; ths = "/soc@03000000/thermal_sensor"; cpu_trips = "/soc@03000000/thermal-zones/cpu_thermal_zone/trips"; cpu_threshold = "/soc@03000000/thermal-zones/cpu_thermal_zone/trips/trip-point@0"; cpu_target = "/soc@03000000/thermal-zones/cpu_thermal_zone/trips/trip-point@1"; cpu_crit = "/soc@03000000/thermal-zones/cpu_thermal_zone/trips/cpu_crit@0"; gpadc = "/soc@03000000/gpadc"; keyboard0 = "/soc@03000000/keyboard"; gmac0 = "/soc@03000000/eth@05020000"; gmac1 = "/soc@03000000/eth@05030000"; gpio_encrypt = "/soc@03000000/gpio_encrypt"; wlan = "/soc@03000000/wlan"; bt = "/soc@03000000/bt"; btlpm = "/soc@03000000/btlpm"; addr_mgt = "/soc@03000000/addr_mgt"; sprd_marlin3 = "/soc@03000000/sprd-marlin3"; aliases = "/aliases"; cpu0 = "/cpus/cpu@0"; CPU_SLEEP_0 = "/cpus/idle-states/cpu-sleep-0"; cpu_opp_l_table = "/opp_l_table"; dram = "/dram"; gic = "/interrupt-controller@03020000"; wakeupgen = "/interrupt-controller@0"; nmi_intc = "/intc-nmi@07010320"; sid = "/sunxi-sid@03006000"; sunxi_sid = "/sunxi-sid-ng@03006000"; speedbin_efuse = "/sunxi-sid-ng@03006000/speed@00"; ths_calib = "/sunxi-sid-ng@03006000/calib@14"; chipid = "/sunxi-chipid@03006200"; uboot = "/uboot"; mmu_aw = "/iommu@030f0000"; gpu = "/gpu@0x01800000"; ipa_dvfs = "/gpu@0x01800000/ipa_dvfs"; }; };

Hi, I've a rock-3a board with an NVMe device and a BTRFS filesystem using the whole disk ( no partitions ) I've seen some devices having BTRFS support in u-boot, so first thing I built the u-boot images using the extension: cat extensions/uboot-btrfs.sh # Enable BTRFS support in u-boot function post_config_uboot_target__enable_uboot_btrfs_support() { display_alert "u-boot for ${BOARD}/${BRANCH}" "u-boot: enable BTRFS filesystem support" "info" run_host_command_logged scripts/config --enable CONFIG_CMD_BTRFS } And patched the configuration of the board: git diff . diff --git a/config/boards/rock-3a.conf b/config/boards/rock-3a.conf index 401894fa5..90f8a8a72 100644 --- a/config/boards/rock-3a.conf +++ b/config/boards/rock-3a.conf @@ -15,12 +15,15 @@ BOOT_SPI_RKSPI_LOADER="yes" IMAGE_PARTITION_TABLE="gpt" BOOTFS_TYPE="fat" +# Enable btrfs support in u-boot +enable_extension "uboot-btrfs" + function post_family_config__rock-3a_use_mainline_uboot_except_vendor_and_add_sata_target() { display_alert "$BOARD" "Configuring ($BOARD) standard and sata uboot target map" "info" UBOOT_TARGET_MAP=" ./compile.sh artifact BOARD=rock-3a BRANCH=current RELEASE=trixie BUILD_MINIMAL=yes BUILD_DESKTOP=no KERNEL_CONFIGURE=no COMPRESS_OUTPUTIMAGE=sha,img ROOTFS_TYPE=btrfs FIXED_IMAGE_SIZE=4096 DISABLE_IPV6=false WHAT=uboot With this I flashed the SPI image: root@rock-3a:~# flashcp u-boot-rockchip-spi.bin /dev/mtd0 root@rock-3a:~# cat /proc/mtd dev: size erasesize name mtd0: 01000000 00001000 "spi4.0" So, then I booted it without the SD card I use for the /boot partition, used the serial port ( as it didn't autoboot ) and I saw: => nvme info Device 0: Vendor: 0x2646 Rev: SBM02103 Prod: 50026B778514A843 e: Hard Disk Capacity: 953869.7 MB = 931.5 GB (1953525168 x 512) => btrsubvol nvme 0:1 ** No partition table - nvme 0 ** Couldn't find partition nvme 0:1 => btrsubvol nvme 0:0 ID 257 gen 153600 path /@rootfs/ ID 257 gen 153600 path /@rootfs/ ID 259 gen 153599 path /@home/ => ls nvme 0:0 /boot/ <DIR> 16 Sat Dec 06 08:32:08 2025 dtb < > 0 Sat Dec 06 08:44:38 2025 .next < > 37679616 Sat Nov 15 03:03:00 2025 Image < > 5560276 Tue Nov 11 22:48:14 202urrent-rockchip64 < > 5560445 Sat Nov 15 03:03:00 2025 System.map-6.12.58-current-rockchip64 < > 236 Sat Dec 06 08:54:54 2025 armbianEnv.txt< > 200 Sat Sep 09 08:armbianEnv.txt.old < > 0 Tue Jun 18 18:05:14 2024 armbianEnv.txt.out < > 1536 Thu Aug 31 17:25:06 2023 armbian_first_run.txt.template < > 38518 Thu Aug 31 17:25:04 2023 boot.bmp < > 3180 Thu Aug 31 17:20:00 2023 boot.cmd < > 3252 Thu Aug 31 17:26:44 20 boot.scr < > 258746 Tue Nov 11 22:48:14 2025 config-6.12.57-current-rockchip64 < > 258803 Sat Nov 15 03:03:00 2025 config-6.12.58-current-ro< > 29107600 Tue Nov 25 21:2 2025 initrd.img-6.12.57-current-rockchip64 < > 29108356 Sat Dec 06 08:44:34 2025 initrd.img-6.12.58-current-rockchip64< > 29108420 Sat Dec 06 08: So it can read BTRFS, but no booting, I tried manually based on some commands I get but no luck: => load nvme 0:0 $loadaddr /boot/boot.scr 3252 bytes read in 27 ms (117.2 KiB/s) => source ## Executing script at 00c00800 Boot script loaded from ** Bad device specification 0x9000000 armbianEnv ** ** Bad device specification 0x9000000 armbianEnv.txt ** Couldn't find partit Can't set block device ** Bad device specification 0x12180000 uInitrd ** ** Bad device specification 0x12180000 uInitrd ** Couldn't find partition 0x1218000ck device ** Bad device specification 0x02000000 Image ** ** Bad device specification 0x020000on 0x02000000 Image Can't set block device ** Bad device specification 0x12000000 dtb/rockchipspecification 0x12000000 dtb/rockchip/rk3568-rock-3a.dtb ** Couldn't find partition 0x12000000 t set block device libfdt fdt_check_header(): FDT_ERR_BADMAGIC No FDT memory address configure via "fdt addr <address>" command. Aborting! ** Bad device specification 0x9000000 dtb/rockchiay/-fixup ** ** Bad device specification 0x9000000 dtb/rockchip/overlay/-fixup.scr ** Couldn'tp/overlay/-fixup.scr Can't set block device ** Bad device specification 0x9000000 fixup ** **0 fixup.scr ** Couldn't find partition 0x9000000 fixup.scr Can't set block device Applying us ## Executing script at 09000000 Wrong image format for "source" command Unknown command 'kaslRM64 Image magic! I'd like to get this worked, I can test anything you can provide me, I'm a n00b trying to learn a bit more about U-Boot. Thanks in advance.

I want to know that too

Oh yea, my trust with Radxa was gone a few months after purchasing two of these. It was a mini NAS kit. The 4c has it's CPU on the bottom side. Making it difficult to use it anywhere else. Not to mention they stopped developing for the 4c after Bullseye. You can't even find it in their new docs page lesson learned. If I ever go SoB again it'll have to be a Raspberry Pi. Which I feel is overpriced when compared to other options.

@martinayotte Hello. Seems once you was dig into this problem too.

I have found, what is an old issue, first noted long ago in https://stackoverflow.com/questions/45813755/linux-8250-rs485-rts-troubleshooting The user has noted, what it possible misuse of TEMT\THRE IRQs. Looking at 6.12 kernel 8250 drivers, i have found it was changed in the part what was the topic in stackoverflow post. https://github.com/torvalds/linux/commit/b54f7a922d334014071ddaea313a045781024f4d I am novice linux user and have lack of understanding many things, including tty to phys architecture and it settings. Maybe im been able to try fix driver itself (have experience to write baremetal IRQ driver rs485 & uart drivers and modbus stack), but i have really big issues with linux modules building and etc. There are also another evidence about RTS\RS485 issues on 8250 in links below. And mention of some "RS485" state machine, "RS485 software emulation" what "may be buggy" in topic i cant find now.

There a more important things to do (first). Like even creating a package for the OPI5 as a quick scan reveals there is none. So currently an option is to compile U-Boot yourself with added Btrfs support. And/or also do that on github and make pull request. Over time, more U-Boot will support Btrfs I guess, so how do you think people should spent their time. I did look into armbian-install but it is not according to my wishes/methods. It should work, but more work for me to revert/change than just use manual rsync and btrfs options as I want it. I have some backup/cloning scripting that fits Opensuse methods, not Debian. Your other option is to simply install/copy manually and maintain an extra boot/1st partition, FAT formatted. Several old installs do it like that and it is anyway you have to deal with for 'normal' UEFI computers. So that is why I do that. For simple/cheap/headless SBCs, just U-Boot and single partition is very much preferred I think, as that means less objects to maintain and also it allows seamless systemd-nspawn startup/run. That is very handy method of doing things with images. As with multiple partition you need losetup first and select/mount rootfs partition as well manually. I also use extra 1stFAT so it is easier to experiment and switch bootloader and various boot methods/files. Or build your own image with Armbian build, then 1 linux commandline, 'push-button', if you would select /dev/mmcblk0 as image target and have your buildhost running from NVME. Also note that there is the tool btrfs-convert, it works on various SBC images, if you also change/fix boot settings. For Armbian, I think only change is the rootfstype= line in armbianEnv.txt And what works for several UEFI machines is that you add the boot partitions at the end, so you can just shrink rootfs partition a bit, no complete recreate, that might save time when full 4TB HDD. It must have the correct type then so 0xEF00 (ESP), so Windows oriented users will easily get in trouble. Not sure if that also works for Linux only method, seems 0xEA00, but would expect that. Anyway, this is all fixing afterwards options, it of course won't play nice with Ext4 auto expand filesystem method in every SBC image nowadays (eating your SD-card, you never manage to undo).

Sounds a bit like with My ROCK3A. Bought it last yer and with a SATA breakout board. That breakout board was a newer HW version with a but flatter and simpler (and cheaper of course) SATA connector, such that I could get a SATA cable connected as the MIPI DSI conector was in the way, just slightly too high. So for the 3 euros that it costed I thought, time to warm up the soldering iron and lift it a bit so a SATA cable fits. Radxa apologized and I think the idea was that I would get some new SATA thingy or so for free. Yeah right, trust is gone. That proved a second time as they did not take any further initiative. For example how do they think they can reach me (being at the at the other side of the world). Also now that combination is is just removed from the products page. Indeed they sell now own ASM1166 M.2 M-key modules, of course at a higher price that the generic ones on Aliexpress. No surprise form a Chinese a company, they just throw new boards on the market and hope someone will be their guinea-pig. Also your ROCK4C (non-plus) is not listed anymore. Also note it has no PCIE, so my guess is it uses some USB3 connection. I personally avoid it like a plague. Maybe it can save you in this case, maybe try to get a schematics of the PCB, then the whole thing might work with the HAT off and just GND+5V with own soldering/wiring. Else sell it befor it is too late. That is what also have advised a RPi5 + SATA HAT user who had trouble. As separate components, loss it not too big maybe. My ROCK3A+breakout board was 40 euros, great for replacing old PC for 1 SATA HDD. That those HATs are covering all GPIO, I know, that is why I never will buy a HAT again, also not a Raspberry I think who 'invented' it. I soldered extra wires on top. In your case I would solder the USB console cable on the underside, drop of hotglue and done. Faster than I can write this message. Or else look for a PUKE (Peripheral Under Kernel Environment module that is meant for debugging low-level U-Boot and kernel issues).

ping @chraac, do you have an idea?

That's surprising. All I knew so far was that modules need to be present, either built-in or as dynamically loaded modules. Do you have a reference for this anomaly?

Thanks! It would be helpful if armbian-install somehow checked that before offering the btrfs option. (This is just an interim solution until I figure out what went wrong with a recent Rock 5B upgrade that keeps it from booting and took many of my home services offline. So I will live with ext4 for now, but I thought I should report the problem.)

Hey. I have no idea whether this will work for the H313 but I got my H713 Projector rooted using the following method. I'm assuming you at least have the stock firmware, but if not, it seems you can grab it here: https://androidpctv.com/firmware-android-tv-box-h96-max-h313 I dislike Windows so I was irritated that PhoenixSuit only seemed to run well on that platform, and ImgRePacker wasn't great either but then I found this project on GitHub: https://github.com/uictorius/imagewty-tool I'm unsure how you'd do this on Windows and I assume you know of a way to flash your box with a custom img file, but this was my work flow: 1. Back up your original img somewhere safe. Don't play around with this file. 2. Grab the latest available version of Magisk from https://github.com/topjohnwu/Magisk/releases. You want the APK file. 3. Go to this Project on GitHub. CircleTeam provide a browser based method of doing this here: https://circlecashteam.github.io/MagiskPatcher/ 4. Using imagewty-tool you first want to grab your boot partition. Run this against your copy of your firmware img. Let's say it's called update.img: imagewty-tool extract update.img 5. This will extract a bunch of FEX files to a directory called update.img.dump. You want to find the file called "boot.fex" 6. Now copy that file and rename it to "boot.img". Go to the MagiskPatcher site. 7. Upload the "boot.img" file at "Upload boot image" and the Magisk APK at "Upload Magisk APK". 8. Select armeabi-v7a radio button, then check every box below except "Recovery Mode" and click "Patch". 9. After a minute or two, the program will download a new patched boot.img to your Downloads folder. 10. Let's say it's called "new-boot.img", you'll want to rename it as "boot.fex" and overwrite the original boot.fex file in the update.img.dump directory. 11. Run imagewty-tool again, but this time: imagewty-tool repack update.img.dump new-image.img The beauty of this is that repacking recalculates all V-file checksums automatically. 12. Flash new-image.img to your box whatever way you're used to doing it with PhoenixSuit or whatever. However, you're not done. 13. Hopefully the box boots up. Get to adb, grab the Magisk APK again and run: adb install Magisk*.apk Once installed, open the Magisk app up and it will say it needs to complete installation, so go ahead and allow that install. Select the Recommended radio button to install and then reboot. 14. Assuming all went well it should boot back up for you. Run this to check root: adb shell su whoami If all went well it should say "root" in your terminal rather than "shell". A dialogue will pop up on the Android screen asking to allow root privileges so go ahead and allow those.

Check out the learning experience in this thread: https://forum.armbian.com/topic/27457-connecting-banana-pi-m2-zero-with-ili9341-display-over-spi-on-latest-armbian-image/#comment-162359 In an ssh session, do this: $ tail -f /var/log/Xorg.0.log And see what happens when the X11 server crashes

Ok, I got the serial output working. Oddly everything worked and the unit booted. 😕 So I go and put the Radxa Penta SATA HAT and boom back to the same issue. The HAT appears to be causing an issue. Activity light is on but in a continuous double blink. The NIC is also showing activity but I can not access or ping. Switch shows a link but no data. Sucks because of the Penta HAT, I am not able to connect the serial to USB cable. The HAT is covering the entire GPIO. https://radxa.com/products/accessories/penta-sata-hat Thought to myself. Ok, let's revert back to an older release (Bookworm). It has the same issue. It's not until I get to Bullseye that it works. Has me thinking. Am I that few who purchased the Rock Pi 4C non plus with their Penta SATA HAT?
