Have just tested Forky (Debian) release on both the 2A and the 2F, and in both cases the wireless driver survived an upgrade. I also tested the Plucky release on the 2A, and the wireless driver did not survive the stock upgrade. I have not tested the Plucky version on the 2F yet. Also it should be noted that the cron implementation in the Forky version for the 2A is fouled up. Any ordinary user's crontab has to be edited by root. Bad permissions on a number of files. Nice to know that at least the wireless adapter problem has attracted someone's interest.

Thanks! I think it will be a little bit of work, but I agree that it would be the best way forward. So I'll attempt to start again with a fresh install. Really appreciate your help!

So I have tried all the different images for the Opiz3 from the Orange pi website with the dts, I have tried 2 of the desktop images for the opiz3 from armbian. All of them result in the desktop environment not booting correctly. with Armbian I even got to the point where there are no errors in the lightdm logs, yet still a black screen. However with all those different images, a simple manual restart of lightdm (systemctl restart lightdm.service, will fix it and make the desktop show up.

Does this happen if you are running from an SD card also? Or is it specific to running off of emmc?

sun50iw9p1.dtsi

Extract the 7z file in the same folder as Armbian-unofficial_26.02.0-trunk_Luckfox-lyra-ultra-w_trixie_vendor_6.1.115_minimal.img Then do: dd if=uboot.img of=Armbian-unofficial_26.02.0-trunk_Luckfox-lyra-ultra-w_trixie_vendor_6.1.115_minimal.img bs=32k seek=1 conv=notrunc Then you have an old Rockchip 2017.09 u-boot, my guess it that that shall work with 6.1.115 But you are the first one, the tester of it. Also, I did a 32-bit rockchip edge kernel test build and I see no DTB file for Luckfox-lyra-ultra-w That means it is not supported for mainline. At least it seems correct that one cannot build a working image now as legacy u-boot is not available anymore. In theory, the 2025.10-rc4 u-boot might be such that you can get a mainlne edge rockchip kernel running, EFI booted maybe, but expect same strange errors or freezes.

I've already tried both sudo apt update && sudo apt upgrade. I can't update because it says that the website linked "apt.armbian,com bionic release" doesn't have a release file. What commands would i specifically need to run to do what you said (Blacklisting kernel, seguenti (?)) Server, something i can ssh into to run some basic websites on nginx

Yes, that is the correct sequence of actions: 1. Build armbian minimal with panel-mipi-dbi kernel module 2. Use DTS so that the kernel links the GPIO, SPI to the panel-mipi-dbi kernel module 3. Use the bin file (originally provided by Kungfu pancake) <-mandatory, not optional 4. If you see console text successfully in the LCD during boot, you have successfully installed your LCD 5. Tell us here, for the next step in GUI installation The "greeter" is the graphical login screen. Labwc is the wayland-based compositor and window manager (I think).

Hi, I am posting this here to notify you about the serious networking performance issue on my Rockpi 4B board. Ever since I installed the Trixie release, the networking on the board has been poor/not working at all. I cannot even run an apt update If I try to connect via SSH, I get: root@rockpi:~# apt update 0% [Connected to github.armbian.com (185.199.110.153)] [Waiting for headers] [Waiting for headers]client_loop: send disconnect: Connection reset >ssh root@192.168.0.200 ssh_dispatch_run_fatal: Connection to 192.168.0.206 port 22: Connection timed out I don't know where to start / what to check here. When I turn on the board, it works barely at starting, very slowly before becoming unresponsive. Technical Details: Board: Rockpi 4B Armbian version: Armbian_community_26.2.0-trunk.44_Rockpi-4b_trixie_current_6.12.60_minimal Boot media: 250GB M.2 PCIE SSD Old Working: Armbian_community_25.2.0-trunk.195_Rockpi-4b_bookworm_current_6.6.66_minimal This issue started only after installing the Trixie images. The bookworm image works butter smooth and flawless. I am sorry if I am cross-posting this, but I couldn't find any known related issue on this board. Thanks in advance!

No clue if it will work. There are hundreds of different TV boxes. It is unlikely anyone here has that exact model So just try. The general rule as the instructions on this site indicate are to try different dtbs until you find one that works the best.

The connection is correct, the H3 (nano pi neo) output works for external sound i2s, but both the input and output need to be made on a newer board H5 ( Nano{iNeo2 ), the pinout is the same

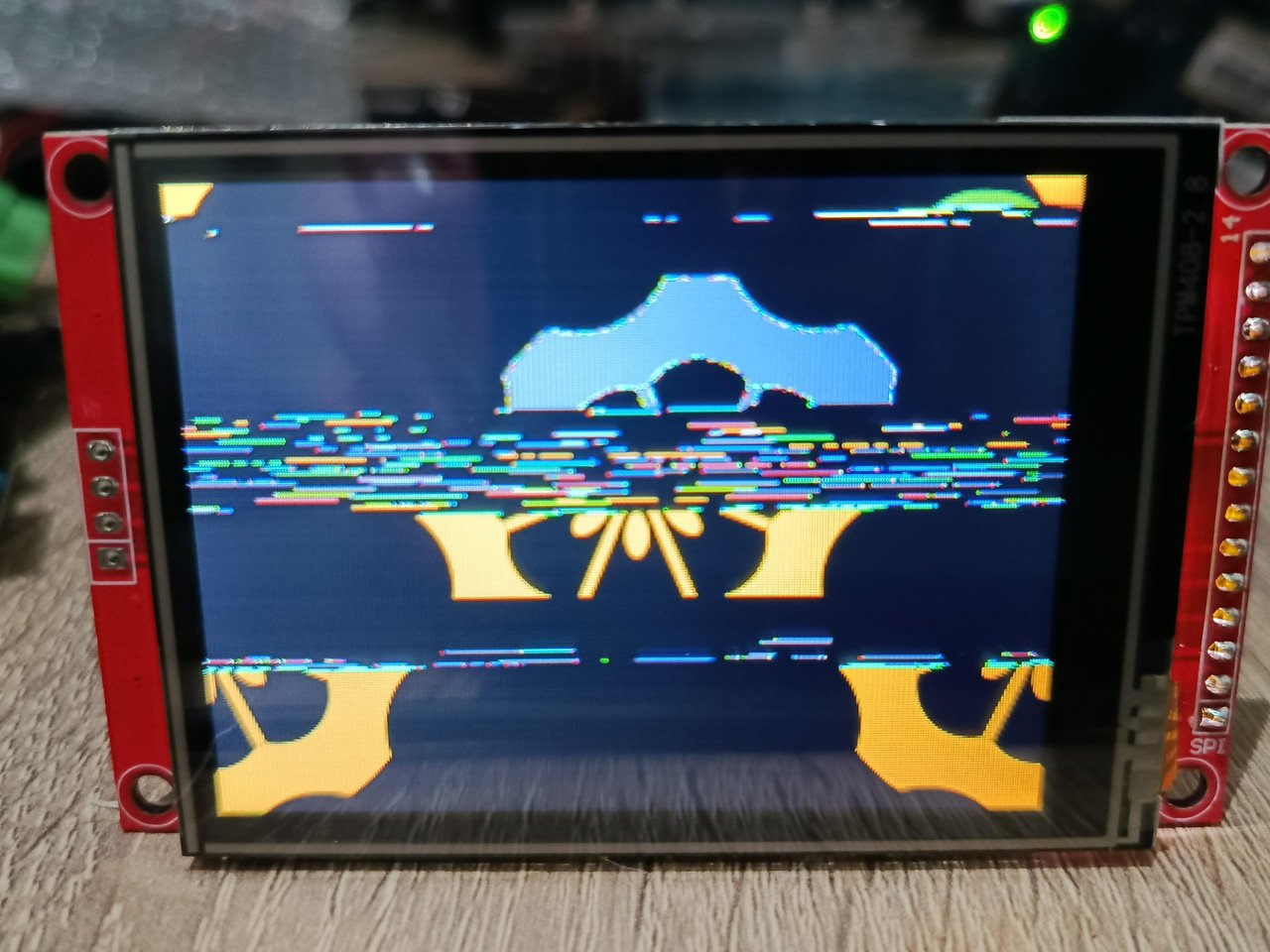

Thanks. I am figuring thing up, like fixing a cycle dependency and adding traces to my lcd driver module. But I can compile this one on the target. So it is fine. The "fixing cycle(s) dependency" thing is annoying because I mostly find example boards using the lcd pins and not the dsi lanes.

https://github.com/ptitSeb/box64/issues/3146#issuecomment-3630691360 Optimize is on the way, just wait!

these modules/configs are missing in 6.16.8 (vs 6.15.4): CONFIG_SND_SUN9I_HDMI_AUDIO=y CONFIG_SND_SOC_SUNXI_MACH=m CONFIG_SND_SOC_SUNXI_AHUB=m CONFIG_SND_SOC_SUNXI_AHUB_DAM=m CONFIG_SND_SOC_SUNXI_INTERNALCODEC=m CONFIG_SND_SOC_SUNXI_AAUDIO=m Could this be a problem?

Hi again and thank you for the new reply. Something went wrong with the mip-dsi 7" display on that board somewhere between 6.1.104 (02/02/2025) and 6.6.750 (03/02/25). I already sourced those from the armbian-config kernel loader tool and confirm that the display works perfectly on the 6.1 kernel and d-t and not on 6.6, with no other changes. None of the more recent kernels work either. I figured that if I could find the exact kernel version where things broke, I might just be able to diff what changed, but 6.1 to 6.6 is a big gap. Any other suggestions? I don't see any significant changes in the logging (uboot unfortunately not available as I don't have a serial connector.), but the screen is picked up and loaded to the d-t. There's just no output. The screen is grey and noisy right from startup - no startup messages or anything at all, with no visible picture signal on 6.6. From 6.12 on it is completely black, although backlight appears to be there. Are any

Hello Respected Supporters, After upgrading to Armbian 26 (kernel version 6.12.58), the onboard network card (end0) experienced a severe degradation in transmission performance (reduced to approximately 1/10 of previous levels). Upon investigation, it was discovered that the kernel driver (dwmac-sun8i) has locked all hardware offload features (TSO/GSO/Checksum), forcing the CPU to handle all processing in software. root@orangepi3:~# uname -r 6.12.58-current-sunxi64 root@orangepi3:~# dpkg --list | grep linux-image ii linux-image-current-sunxi64 26.2.0-trunk.48 arm64 Armbian Linux current kernel image 6.12.58-current-sunxi64 root@orangepi3:~# readlink /sys/class/net/end0/device/driver ../../../../bus/platform/drivers/dwmac-sun8i root@orangepi3:~# ethtool -k end0 Features for end0: rx-checksumming: off tx-checksumming: off tx-checksum-ipv4: off tx-checksum-ip-generic: off [fixed] tx-checksum-ipv6: off tx-checksum-fcoe-crc: off [fixed] tx-checksum-sctp: off [fixed] scatter-gather: off tx-scatter-gather: off tx-scatter-gather-fraglist: off [fixed] tcp-segmentation-offload: off tx-tcp-segmentation: off [fixed] tx-tcp-ecn-segmentation: off [fixed] tx-tcp-mangleid-segmentation: off [fixed] tx-tcp6-segmentation: off [fixed] generic-segmentation-offload: off generic-receive-offload: off large-receive-offload: off [fixed] rx-vlan-offload: on [fixed] tx-vlan-offload: off [fixed] ntuple-filters: off [fixed] receive-hashing: off [fixed] highdma: on [fixed] rx-vlan-filter: off [fixed] vlan-challenged: off [fixed] tx-gso-robust: off [fixed] tx-fcoe-segmentation: off [fixed] tx-gre-segmentation: off [fixed] tx-gre-csum-segmentation: off [fixed] tx-ipxip4-segmentation: off [fixed] tx-ipxip6-segmentation: off [fixed] tx-udp_tnl-segmentation: off [fixed] tx-udp_tnl-csum-segmentation: off [fixed] tx-gso-partial: off [fixed] tx-tunnel-remcsum-segmentation: off [fixed] tx-sctp-segmentation: off [fixed] tx-esp-segmentation: off [fixed] tx-udp-segmentation: off [fixed] tx-gso-list: off [fixed] tx-nocache-copy: off loopback: off [fixed] rx-fcs: off [fixed] rx-all: off [fixed] tx-vlan-stag-hw-insert: off [fixed] rx-vlan-stag-hw-parse: on [fixed] rx-vlan-stag-filter: off [fixed] l2-fwd-offload: off [fixed] hw-tc-offload: off [fixed] esp-hw-offload: off [fixed] esp-tx-csum-hw-offload: off [fixed] rx-udp_tunnel-port-offload: off [fixed] tls-hw-tx-offload: off [fixed] tls-hw-rx-offload: off [fixed] rx-gro-hw: off [fixed] tls-hw-record: off [fixed] rx-gro-list: off macsec-hw-offload: off [fixed] rx-udp-gro-forwarding: off hsr-tag-ins-offload: off [fixed] hsr-tag-rm-offload: off [fixed] hsr-fwd-offload: off [fixed] hsr-dup-offload: off [fixed] Could you please help look into this issue? We are looking forward to seeing it fixed in an upcoming release. Thank you very much. Regards, GBH

@Octavio Cuatrochio, your box is locked no more than others. ADB over USB doesn't work on all versions. su works only through uart console. Toothpick method is only for recovery from backup partition (so 'upgrade' is not really upgrade - it's reflashing from backup). What to check: 1. Check you haven't shorted Tx and Rx to +3.3V. bus (trace between two test points). 2. Are Gnd's of the usb converter and tv box connected? 3. You have some switches on usb converter - what it is for? I/O voltage select? 4. Make sure you open serial port on PC with 115200 8n1 settings without hardware or software flow control. 5. You've checked it while lines was free-floating or connected to usb converter? If last, make measurements without usb converter connected. About performance of Android and Armbian: idk. Current Android firmware is 32-bit. But, according to datasheet, Hi3798MV310 have 64-bit core. So, if you manage to create 64-bit build of Android or Armbian, I suppose it should have slightly better performance.

If that doesn't do it, try the main integration branch which for once combines all branches and for the other is actually meant to be used by megi iirc:https://codeberg.org/megi/linux/commits/branch/orange-pi-6.18

First step is to cleanup and bump the sunxi patchset to 6.18. This is a major blocker. Once that is done. Patches for more recent Allwinner SoCs can be added. I started doing that but it is extremely exhausting. I have no clue how the-going managed to maintain that for that long... must be sort of masochistic or something lol. https://github.com/EvilOlaf/build/tree/sunxi-6.18

Not an Armbian uboot binary. Also we started to drop vendor uboot in favor of mainline.

Hi Igor, I recently updated to Armbian 25.11.2 bookworm aarch64 with kernel Linux odroidhc4 6.12.58-current-meson64. This should be a working version? There I still get the same connect-debounce error. Do you have any advice?

Hi all, i've been going this forum long enough to try and root a tv box that i buyed recently, but this one is HEAVILY locked up, like nothing i have seen before. My objective here is to access 'su' so i can have access to rooting/overclocking this thing for emulators, and after that adding a heatsink, active cooling, etc. I tried ADB over all USBs (4 in total) but nothing. then i tried to see if root was available through some leftover app or vulnerability, but nothing. Then i tried following the specs from this thread (pretty similar in design to my PCB) but my UART displays nothing. (I leave the images from my setup below), i tried switching the wires, i tested the voltages and they return 3.3v, so they are ok. I tried the toothpick method to access recovery, but it has 2 buttons. 1 does nothing (AFAIK) and the other one goes directly to updating, so no menu. Any help is appreciated, as i'm out of any ideas. I leave my pictures below, and my specs: CPU: Alwinner H313 RAM: 1GB ROM: 8GB PCB: Z01S-v13.3, 2025.05.20 OS: Android 7-8 ish

Also, interesting to see your updates. I keep seeing a lot related to GStreamer, will need to look more into that.

Thank you for sharing your findings with the community!

Yes. Try the latest kernel. The latest is always the one with the most corrections (unless someone discovers an error). How do you select a H616 vs H618 kernel? I always select Unsupported Board > Orange Pi Zero 3
